Description

T-962 110V/220V 800W Desktop Reflow Oven Infrared IC Heater Soldering Machine 800W 180 x 235mm T962 for BGA SMD SMT Rework

CE Certification ,Easy to operate

Automatically by micro-computer control

Complete visual operation by the high qulity LCD screen

Can satisfy a dissimilarity SMD.BAGSoldering a request

Adoption fast infrared radiation and circulation the wind for heat,So the temperature is very accurate and even

Adopted a high and dependable design

Have big infrared soldering max area to reach effectively 180times235mm

Special heat up and temperature equalizationwith all design

Many temperature wave choices for users

Humanized science and technology exquisite article

Perfect varity functions:return soldering, drying, heat preservation, finalize the design, fast cool off

Eqiuped with exhaust fan to satisfy the need of the soldering

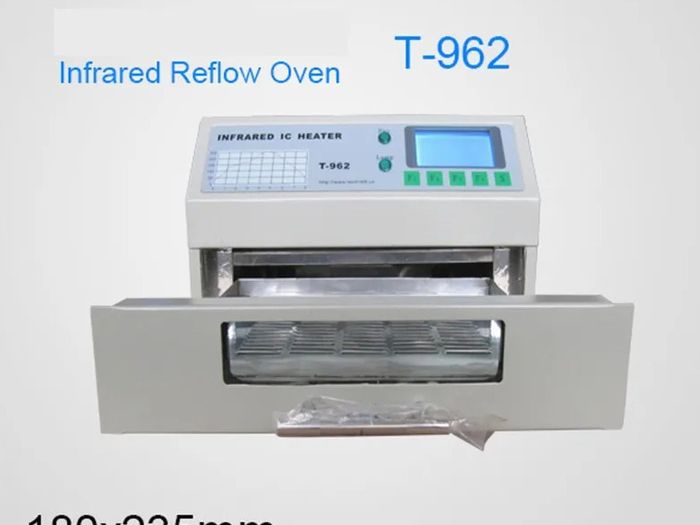

1)The T962 is a self-contained Micro-Processor controlled IC Heater and solder rework station .

2).Uses up to 800 watts of energy efficient infrared heating and air circulation to reflow solder in a large 180mm*235mm area.

3)Parameters of Eight(8) Soldering cycles are Pre-defined.

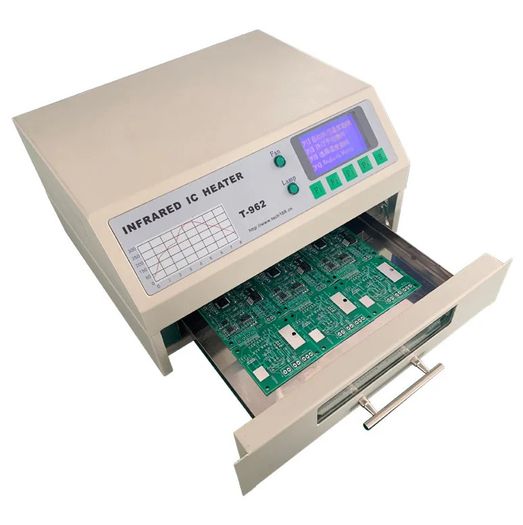

4)A single windowed drawer holds assemblies within the heating chamber.

5)Soldering cycles are keypad selected and progress displayed on the T962. LCD

6) The T962 design is ergononic ,prctical and easily operated .

7)The entire soldering process is completes automatically from preheat ,soak and reflow through cool-down.

8)The T962 is an ecnomical rework solution from single runs to on-demand small batch production.

9)Light weight and a small fooprint allows the T962 to be easily bench positioned transported or stored !

Technic parameter
Soldering max area: 180times235 mm
Size: 31times29times17cm
Packing size:36times23times36 cm
Rated power :800W
Process Period:1~8 min
Supply: AC220V/50HZ
Net weight: 6.2kg
Gross weight:7.5kg
