Stepper Motor 28BYJ-48 + ULN2003 Driver Board for Arduino

Stepper Motor 28BYJ-48 + ULN2003 Driver Board for Arduino
Asking price: €5
Make an offer:
Seller:
EstMX
Feedback:
1086 29
Location:
135 more ads from this seller
Entered/Renewed:
2 years ago
Ad Views:
3,110
Viewing 1 of 2

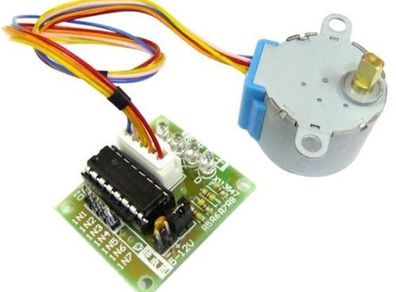

Stepper Motor 28BYJ-48 + ULN2003 Driver Board for Arduino

Description

Condition: New

Motor Features:

Rated Voltage: DC5V 4-phase
Step angle: 5.625 x 1/64
DC Resistance: 200Ω±7% (25C)
Insulation Resistance: >10MΩ (500V)
Dielectric Strength: 600V AC / 1mA / 1s
Insulation Grade: A
No-load Pull in Frequency: >600Hz
No-load Pull out Frequency: >1000Hz
Pull in Torque: >34.3mN.m(120Hz)
Detent Torque: >34.3mN.m
Temperature Rise: <40K(120Hz)
Noise: <40dB (120Hz, No load, 10cm)
Cable length :23.5CM

ULN2003 Driver Board:

A, B, C, D four-phase LED indicates the status of the stepper motor work.
Stepper motor with a standard interface, when used directly pluggable.
Drive Module Board Size:2.8cm x 2.8cm x 2cm.

Shipping: CollectionPost/Courier
Payment: CashPaypalBank transfer
