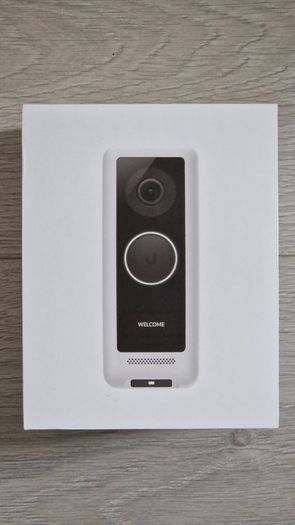

Ubiquiti G4 Doorbell

Used and in perfect working condition.
Selling only due to an upgrade to the Ubiquiti G4 Pro, which includes an NFC reader.

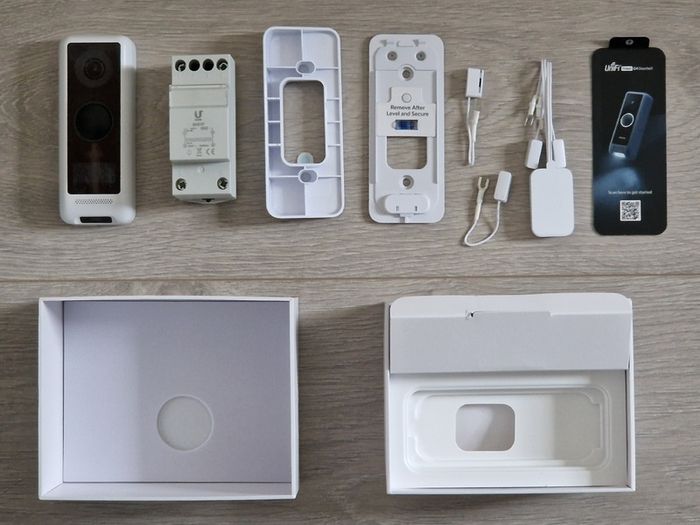

Package includes all accessories, including the power supply!


Dimensions: 118.3 x 46.8 x 25.8 mm

Weight:

Without mount: 130 g

With flat wall mount: 178 g

With 20° wedge mount: 200 g

Enclosure material: Polycarbonate



Mount materials:

Flat wall mount: aluminum alloy

20° wedge mount: polycarbonate

Weatherproofing: IPX4



Optics

Sensor: 5MP CMOS sensor

Lens: Fixed focal length

View angle: H: 138°, V: 114°, D: 155°

Night mode: Built-in IR LED illumination and IR cut filter



Video

Resolution: 2MP 1600 x 1200 (4:3)

Max. frame rate: 30 FPS



System

Processor: Quad-core Arm Cortex-A53 based chip

Networking interface: 802.11a/b/g/n/ac WiFi, Bluetooth 4.2

Max. power consumption: 12W

Power requirements: 16–24V AC, 1.25A max., 50/60 Hz

Supported voltage range: 16–24V AC

LED: Link/activity

Buttons: (1) Ring button, (1) Factory reset

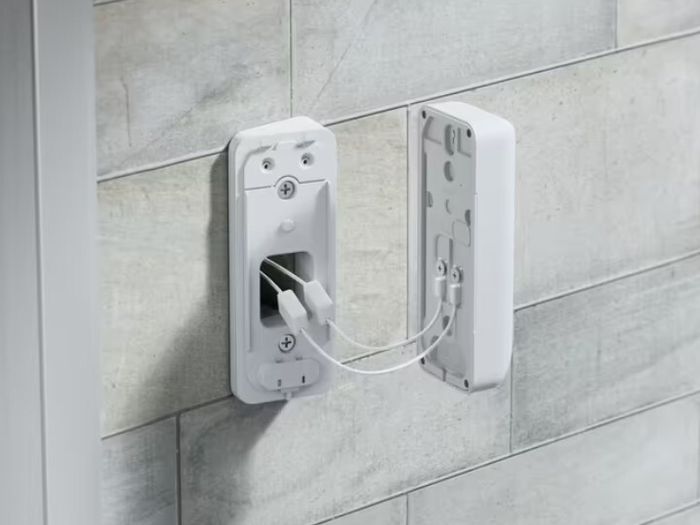

Mounting: Flat wall, 20° wedge (Included)

Ambient operating temperature: -10 to 40º C (14 to 104º F)

Ambient operating humidity: 0 to 90% noncondensing

Certifications: FCC, IC, CE

NDAA Compliant: Yes



Audio

Microphone: Yes (can be disabled)

Speaker: Yes




Software

Web application: UniFi Protect

Mobile app: UniFi Protect iOS and Android




Compatible Mechanical Chimes

Broan-NuTone LA126WH

Broan-NuTone LA11WH

Heath Zenith SL-2735

Craftmade CTPW-RG

Broan-NuTone LA39WH

Newhouse Hardware CHM3D

Compatible Digital Chimes

Broan-NuTone LA600WH

IQ AMERICA DW-2850

IQ AMERICA DW-2840




Transformer Specifications

Input rating (5, 6): 230V, 50/60Hz

Output rating (1, 4): 16V AC, 15VA
