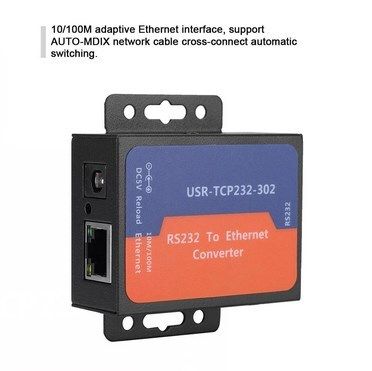

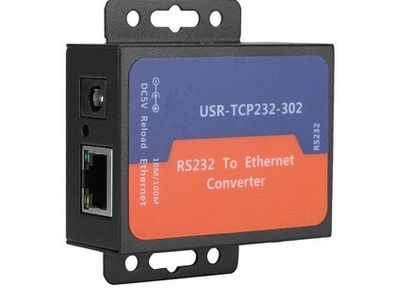

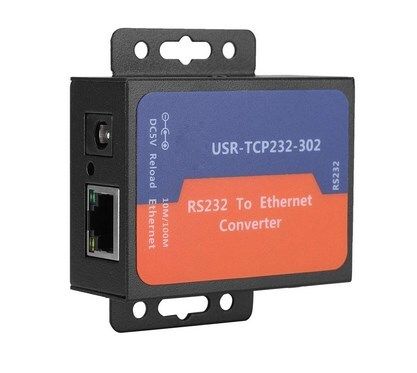

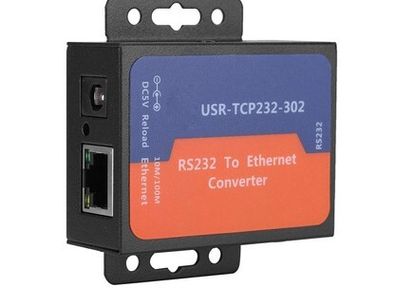

USR-TCP232-302 Tiny Size Serial RS232 to Ethernet TCP IP Server Module Ethernet Converter Support DHCP/DNS

Condition: New

“ Brand New in Box ” (18)

1 x available in stock
__________________

Collection is available in the Kilkenny Area
or
Postage is available for €6 extra.
Shipping Nationwide: 1-2 working days
__________________

Product Description >>>

USR-TCP232-302

● Single RS232 to ethernet converters（transmission between RS232 and Ethernet）
● Cost effective serial port to Ethernet
● Transmission between RS232 port and Ethernet
● Power supply: DC 4.75-7V
● Compact, Small size, Light Weight
● Supports TCP server/client, UDP server/client
● Virtual COM

New model [USR-TCP232-302] RS232 to Ethernet converter is upgraded version of old one [USR-TCP232-200].

Serial RS232 To Ethernet Server, Used For Data Transparent Transmission..

USR-TCP232-302 Is Internally Integrated With TCP/IP Protocol. User Can Apply It To Device Networking Communication..

Work Mode: TCP Server, TCP Client, UDP Client, UDP Server, HTTPD Client.

Can Work In LAN, Also Can Work In The Internet (External Network).


Processor TI Cortex-M0
Ethernet
Port Number 1
Interface Standard RJ45
Rate 10/100 Mbps, MDI/MDIX, auto switch between cross and direct connection
Protection 2KV electromagnetism isolation, shell insulation blocking
Network Protocol IP、TCP/UDP、ARP、ICMP、IPV4、HTTP
Buffer Send: 6K bytes, receive: 4K bytes
Serial Port
Port Number 1
Interface Standard RS-232: DB9 female port
Data Bits 5, 6, 7, 8
Stop Bit 1, 2
Check Bit None, Even, Odd, Space, Mark
Baud Rate 600 bps ~ 230.4 Kbps
Flow Control Null
Buffer Receive: 800 bytes
Software
Virtual Serial（USR-VCOM） Windows 2000 or higher (32 bit/64 bit)

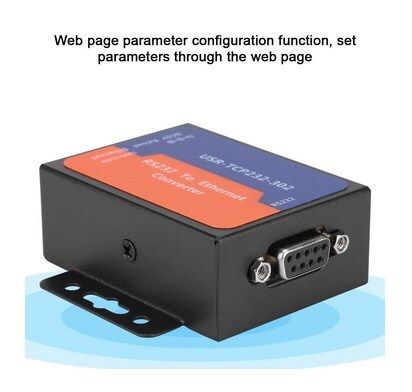

Configuration Computer set-up software, serial command, built-in webpage
Basic Parameter

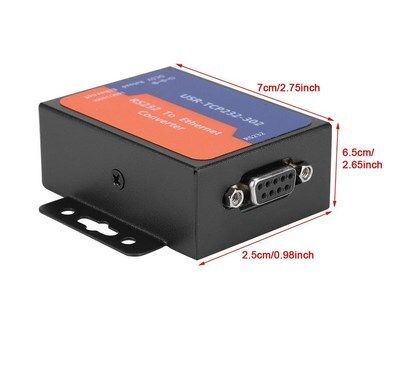

Size 71 x 60 x 25 mm
Operating Temp. -25 ~ 75°C
Storage Temp. -40 ~ 105°C, 5 ~ 95% RH
Input Voltage DC 4.75 ~ 7V
Working Current 150mA @ 5V
Power <1W
More
Warranty 2 years
Accessory 5V1A power supply
Certificate CE/FCC/RoHs

_____________________

****PLEASE NOTE****

To See All Our Other Ad’s Click Here >>> https://www.adverts.ie/for-sale/q_a1stuf/

Some products listed as NEW may have slight Box wear/damage or be repackaged.

We are NOT EXPERT’s in Everything that we sell, Please do your own research before purchasing.

If the product is defective or damaged upon arrival, or the wrong product was shipped, please contact us immediately to arrange a Return. All Returns must be in its original condition, not used or altered in any way with all its tags and packaging. Otherwise the deal is final.
