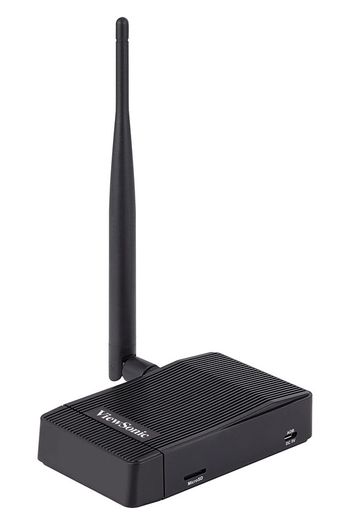

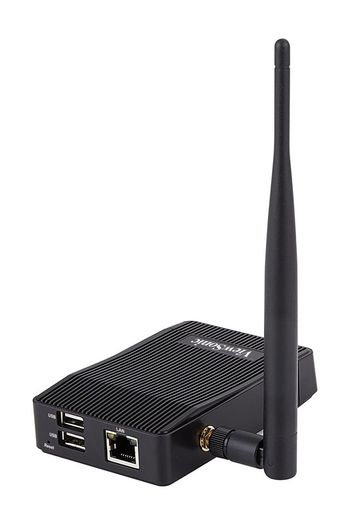

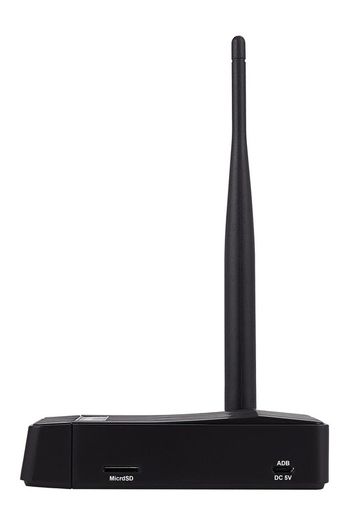

ViewSonic NMP-302W
1080p Network Media Player

OVERVIEW
The ViewSonic NMP-302w network media player delivers reliable and stunning 1080p multimedia playback on large format displays and digital signage solutions. With built-in wireless and RJ45 connectivity, along with bundled Signage Manager software, the NMP-302w allows customized multimedia content to be easily produced, scheduled, and loaded to displays from PCs or notebooks. Integrated 8GB on-board memory, as well as dual USB and micro SD card slots, provide direct playback of high-definition content. The NMP-302w also supports the latest HTML5 and SMIL standards, delivering dynamic and informative messaging to your customers. An embedded “fail-safe” function allows the connected display to continue playback of pre-assigned multimedia content even when the media player is not working. The NMP-302w provides a reliable messaging solution for retail, hospitality, point-of-sale advertising, and education environments.

Core
CPU: ARM
Memory
Type: NAND Flash
Capacity: 8GB
Software
Operating System: Embedded Linux

INPUT
SD/SDHC: x1
OUTPUT
HDMI: HDMI 1.4 x 1
LAN
RJ45: x1
Wireless
802.11 b,g,n
USB
Type A: x2
Micro USB: x1, (for F/W troubleshooting)
Support Media Format
Video format: POPAI Screen Media Standards
S6 (MPEG-1 SIF, 3Mbps CBR)
S7 (MPEG-1 480p, 10Mbps CBR)
S8 (MPEG-1 720p, 15Mbps CBR)
S9 (MPEG-2 480p, 6Mbps CBR)
S10 (MPEG-2 720p, 12Mbps CBR)
S11 (MPEG-4 AVC, 480p, 6Mbps CBR)
S12 (MPEG-4 AVC, 720p, 10Mbps CBR)
E4 (VC-1/WMV9, MP@ML, 720p)
E7 (MPEG-4 ASP, 480p, 10Mbps CBR)
E8 (H.264/MPEG-4 AVC, 1080p, 20Mbps CBR)
Image format: POPAI Screen Media Standards
S1 (JPEG 480p baseline)
S2 (JPEG 720p baseline)
S3 (JPEG 1080p baseline)
E1 (PNG 24bpp+alpha, 480p)
E2 (PNG 24bpp+alpha, 720p)
E3 (PNG 24bpp+alpha, 1080p)
Audio codec: POPAI Screen Media Standards
S4 (MPEG L2 audio)
S5 (MP3 audio, 320Kbps)
Dynamic content: W3C HTML5 (HTML, CSS, JavaScript)
W3C SMIL 3.0 instructions (sub-set)
Bundle Software
Signage Manager
Power
Voltage: DC 5V 2A
Consumption: 6W
OPERATING CONDITIONS
Temperature (º C): 0°C to 40°C
Humidity: 30% ~ 80% non-condensing
DIMENSIONS
(W x H x D)
Physical (inch / mm): 4.21x1.00x2.68 / 107x25.3x68
Packaging (inch / mm): 8.86x3.11x6.69 / 225 x 79 x 170
WEIGHT
Net (lb / kg): 0.24 / 0.1081
Gross (lb / kg): 1.28 / 0.58
REGULATIONS
CE/ CE LVD /FCC class B
PACKAGE CONTENTS
Standard package
1. HDMI cable (male to female, 35cm)
2. External WiFi antenna @5db
3. AC Adapter
4. Power plug (US/EU/EU/UK)
5. USB power cable (1.2M)
6. Velcro
7. VESA mount (100 x 100 mm)
8. Hardware Quick Start Guide
9. Software Quick Start Guide
10. Documentation CD
Optional accessory
1. Micro USB to USB Y cable (1M)
