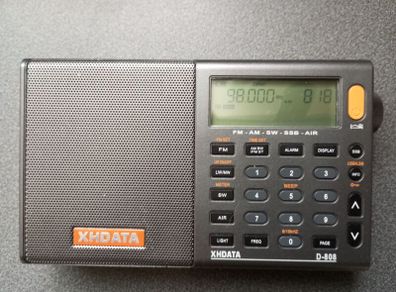

XDATA D-808 Portable Radio

Portable FM-stereo, MW, LW, SW, SSB and Air Band  radio in excellent condition,with high sensitivity, good selectivity, and user-operation friendly. Adopts DSP technique and selectable IF bandwidth. Ideated in P.R. of China.

Reference market : consumer / amateur-radio

D-808 specifications

GeneralFrequency coverage0.1500 ~ 0.4500 MHz
0.5200 ~ 1.7100 MHz [1]
1.7110 ~ 29.9990 MHz
64.0000 ~ 108.0000 MHz [2]
118.0000 ~ 137.0000 MHzModeSSB / AM / WFMTuning step1 / 9 / 10 KHz [3]ReceiverSensitivityAM< 10mV/m (LW band)
< 0.5mV/m (MW band)
< 10 uV (SW band)
< 0.5 uV (Airband)WFM< 3 uVFeaturesMemory500 memories in pagesDisplay1 KHz frequency resolution [4]Power supply3.7V battery (Li-Ion)
USB 5 VDCAudio power~800 mWConnectionsJack 3.5 mm (headphone)
Jack 3.5 mm (antenna)Mechanical and environmental dataDimensions157 (W) x 92 (H) x 32 (D) mmWeight265g without battery

For 10 KHz steps, 0.522~1.620 MHz with 9 KHz steps.

87.5~108 or 64~108 MHz.

AM mode on LW/MW/SW bands.

Also fine tuning increments in SSB mode.
