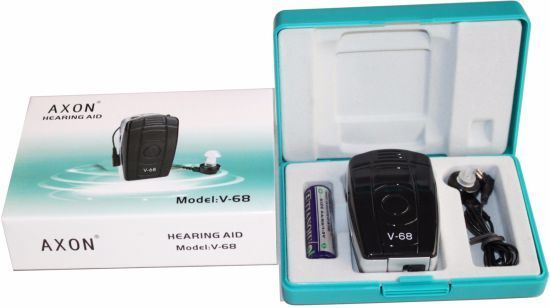

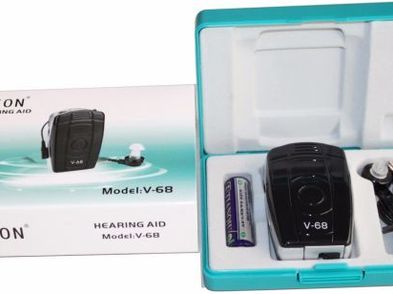

Battery Powered Ear Sound Amplifier Digital Mini Pocket Hearing Aid V-68

Condition: New

Product Description
Axon V-68 Portable Pocket Hearing Aid Machine

Specification

v Max sound output: 130±5dB

v Sound gain: ≥50dB

v Total harmonic wave distortion: ≤5%

v Frequency range: 300-4000Hz

v Input noise: ≤30dB

v Voltage: DC1.5V

v Current: ≤4mA

v Battery model no – AA



v Remove the battery if you do not use the product for a long time . Otherwise the components inside the product will be corroded by the liquid from leaking battery.

v Do not use the product in potential explosive or dangerous environment.

v Keep the unit away fame the children.



Maintenance

v The hearing aid doesn’t work, Check as follows :

1. Hearing is power off.

2. The battery is in correct direction

3. Run out of battery

v Sound is very light :

1. Volume is too low, please increase the volume.

2. Battery is low, please replace the battery.

3. Use a clean dry cloth and special detergent to wipe the hearing aid.



v "N" means "Power On

v "0" means "Power Off"

v "T" means " Telephone"

v "M" means " Microphone

v "+." Positive side of Battery

v "-" Negative side of Battery

v " 0-8" Volume grade, "0" Min, "8" Max



Operation

v Open the battery cover; insert the AAA battery to the hearing aid in correct direction.

v Connect "L" plug to the earphone socket, then put the earplug on the earphone.

v Push the earplug deeper in your ear.

v Switch your hearing aid on and adjust the volume to get clear sound.

v Put the hearing aid on the pocket or clip on your clothes.

v (Note: Make sure the unit is on "0" position and volume is on "I", otherwise the instant sound will make you uncomfortable).



Switch O-N-H

"O" - means "Power Off"

"N" means -"Power On"

"H" means reduce noise in low frequency (Note: This function is better to use in noisy place).
