Description

Top-of-the-line professional-grade pump.

Only used for 3 months domestically.

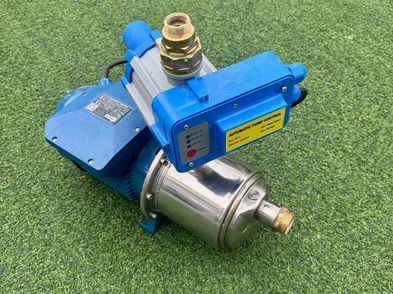

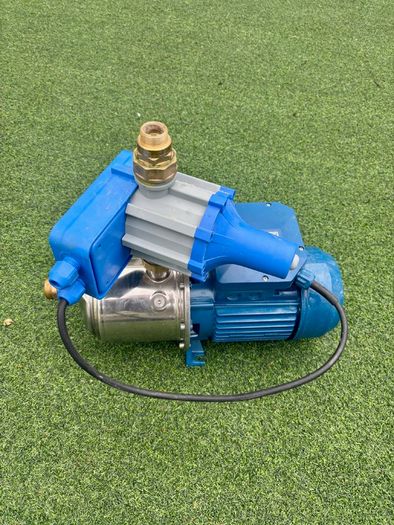

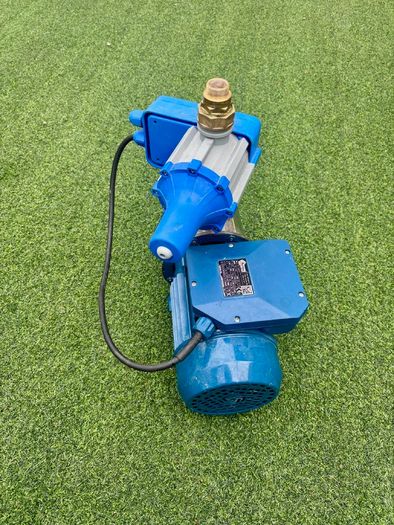

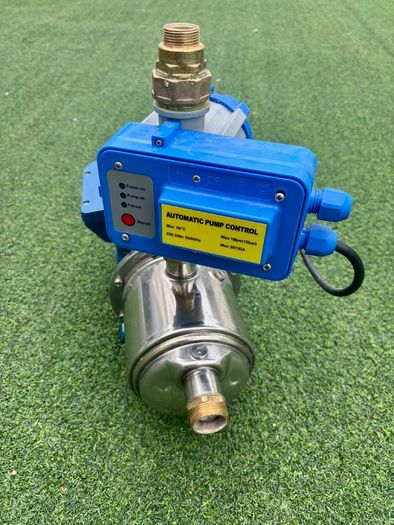

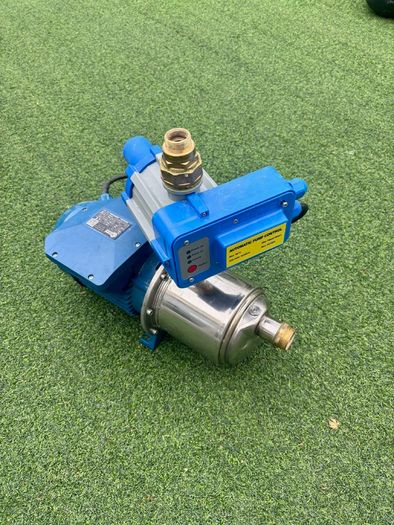

The Pentax Ultra 5 is a stainless steel multistage pump well suited to house and farm water supply. It has a robust fully stainless steel wet end and are very quiet in operation.
It can cover a wide range of applications such as pumping of clean non-loaded fluids, irrigation, drinking and glycol water, water treatment, heating and air conditioning and washing systems.

Specifications:
* 230v
* Single Phase
* 0.9 kW/1.2 HP
* Max Head: 45m
* Max Flow Rate: 140LPM
* Max PSI: 63
* Inlet/Outlet: 25mm
* Suction Lift: 1.5m
* Non Self Priming
* Amps: 5.2

Features:
* Offset suction for improved suction ability (3S & 5S models)
* Liquid temperature: -5 to +110 °C
* Maximum operating pressure: 8.5 bar (125 PSI)
* Enclosure class: IP44
* Insulation class: F
* Duty rating: Continuous
* Totally enclosed, fan cooled standard squirrel frame type motor
* Single phase versions fitted with auto reset internal overload
* Three phase version require user supplied overload to be fitted in installation
* 304 Stainless steel impellers, Diffusers, Seal plate & Pump casing
* 303 Stainless steel pump shaft
* Mechanical Seal: ceramic-graphite (6 impellers or less)
* Mechanical Seal: graphite-silicon carbide (7 impellers or more)
* Aluminium motor bracket

Applications:
* House and farm water supply
* Clean Water/Rain Water/Tank Water
* Pressure boosting
* Water treatment
* Industrial circulation
* Hot water cleaning systems
