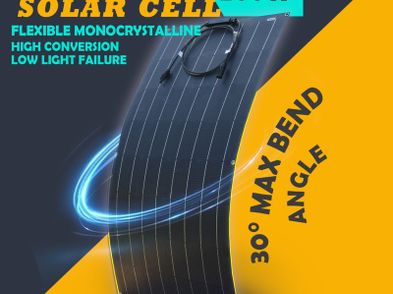

Solar Panel ETFE Flexible Monocrystalline Solar Cell 12V 100w Battery Charger System Kit Home Roof Camper Van

Condition: New

100% Positive feedback, Buy with confidence from an trusted experienced seller

All item are new and not open to offers. Will do a deal if buying multiple items but this item is priced to sell and will not be discounted further

Can post same working day if paying via PayPal


By-pass Diodes are pre-installed in junction box and a pair of 2.5MM2 cables with MC4 connectors comes with the panel automatically, Cable Length with About 900MM

The back has 6 drill holes that can be quickly installed.

Model: ETFE 32-100
Material: Monocrystalline silicon
Maximum Power(Pmax):100W±3%
Maximum Power Voltage(Vmp):18.00V
Maximum Power Current (Imp):5.55A
Open-Circuit Voltage (Voc): 20V
Short-Circuit Current (Isc):6.10A
Nominal Operating Cell Temp.(NOCT):-45 to 80℃
Maximum System Voltage:DC1000V
Maximum Series Fuse:15A
Dimension:1050MM(L)*540MM(W)*2.5mm(H) Equal To 41.33Inch(L)*21.26inch(W)*0.09inch（H）
Package Weight:1.95kg
Package Dimension:1080MM*570MM*40MM
(The above data is based on the laboratory standard test environment)

For field connections,use minimun No.13AWG copper wires insulated for a minimum 90℃

Standard Test Conditions:

AM=1.5 IRRADIANCE=1000W/m2 Temp.=25℃
(The size is manually measured and there is a certain error.）
