Description

Condition: New

Powered mixer with balanced mic/line inputs and 2 stereo inputs, each with 3-band EQ and aux send. A 16 program DSP section with tap tempo can provide vocal effects and a 7-band graphic EQ facilitates global tone control. The built-in stereo amplifier delivers ample power to drive 2 or 4 speakers for coverage in medium sized venues, offering a compact and comprehensive solution for mobile PA, bars and special events.

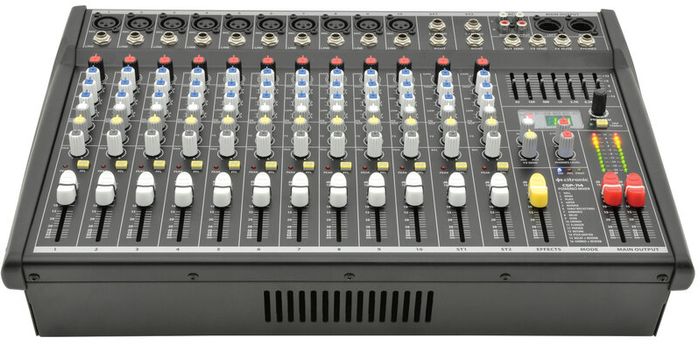

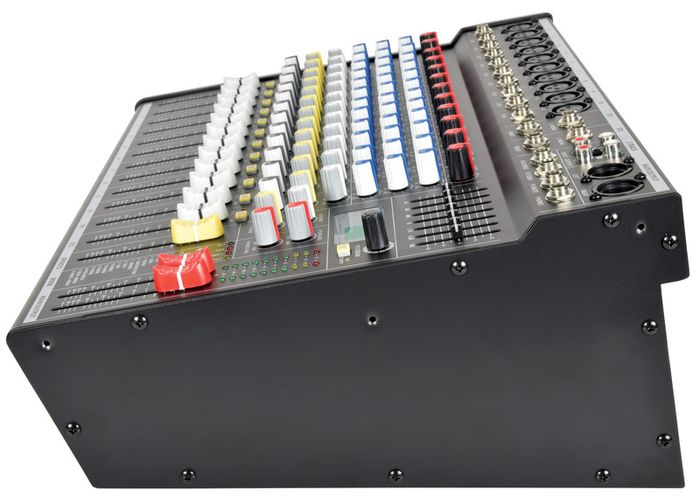

CSP Series Compact Powered Mixers with DSP
Powered mixer with balanced mic/line inputs and 2 stereo inputs, each with 3-band EQ and aux send. A 16 program DSP section with tap tempo can provide vocal effects and a 7-band graphic EQ facilitates global tone control. The built-in stereo amplifier delivers ample power to drive 2 or 4 speakers for coverage in medium sized venues, offering a compact and comprehensive solution for mobile PA, bars and special events.

24-bit 16 program DSP effects
48V phantom power for XLR inputs
3-band EQ per channel
7-band global graphic EQ
Internal stereo power amplifier
Balanced main outputs
Weight
10.40kg
Dimensions
477 x 322 x 153mm
Inputs : Mic/Line
10 x balanced XLRF/TRS jack
Output power : 8 Ohms
2 x 230Wrms
Output power @ 4 Ohms
2 x 350Wrms
Fuse
T15A (5 x 20mm, 250V)
Power consumption
1000W
Power supply
230Vac 50Hz (IEC)

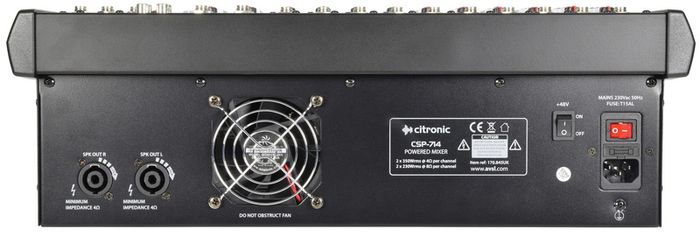

Speaker : outputs
L+R SPK connectors
Effects
16 program DSP (24-bit sigma-delta, 40khz)
Phantom power
+48V (XLR inputs)
Frequency response
20Hz-30kHz (0.5dB)
Input level
+24dBu
Output level : line
+26dBu
CMRR
>74dB (mic 1kHz)
THD +N
<0.01% (channel to main out)
Crosstalk
>85dB (fader mute), >82dB (channel)
Noise rms : 22Hz-22kHz
-122dBu (EIN), -82dBu (mix)
EQ: high
12kHz ±15dB shelving
EQ: mid
2.5kHz ±15dB band pass
EQ: low
80Hz ±15dB shelving
Input impedance : mic (balanced)
2k Ohms
Input impedance : line (balanced)
10k Ohms
Sensitivity : mic
-60 to +14dBu
Sensitivity : line
-40 to +14dBu
2-track
2 x RCA in & out (-2dBu)
Output impedance
<75 Ohms
Headphone output
6.3mm jack, 30-600 Ohms
