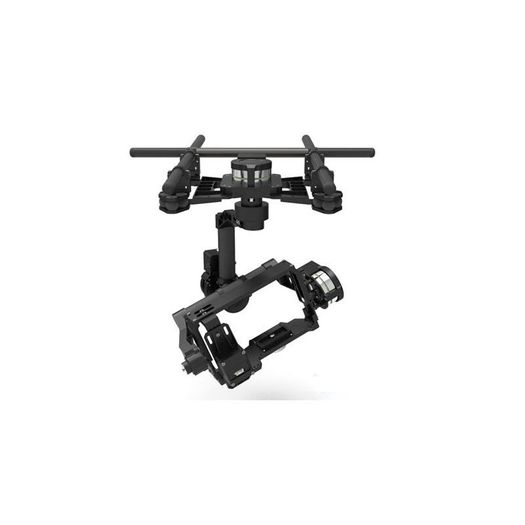

DJI Zenmuse Z15 Camera Mount For - Sony NEX 7
Three Working Modes, Orientation-locked control, Non orientation-locked control & Back to mid-point (Horizontal mode).
Built-in independent IMU module.
DJI gimbal special servos drive module.
S-Bus receiver support
Electrical & Mechanical Characteristics:
Working Current Static current: 200mA (@25V), Dynamic current: 400mA (@25V), Locked-rotor current: 4A (@25V)
Operating Temperature -10°C ~ 50°C.
Communication Interface CAN (Compatible with ACE One & WKM).
Weight 880g (Without UBEC, HDMI-AV module).
Dimensions 200mm × 200mm × 230mm.
Frame Dimensions For Camera (Inside) 115mm × 75mm.
Load Weight (Reference Value) 392g (@Panasonic GH2).
Angle Control Accuracy ±0.05°.
Max Controlled Rotation Speed ±180°/s.
Controlled Rotation Range Yaw control: ±360° continuous rotation.
Pitch control: ±360° continuous rotation.
Roll control: ±40° (±360° mechanic continuous rotation).
Supported Cameras, SONY Nex5 / Nex7 & Panasonic GH2.
Input Power 4S~12S LiPo
Control Requirement Four spare receiver channels
Assistant Software System Requirement Windows XP SP3; Windows 7
User Manual & Documents
The Zenmuse Z15 supports three types of camera, which are the Sony Nex 5, Sony Nex 7 and Panasonic GH2, it's important to make sure that you select the correct gimbal option for your camera.
