Description

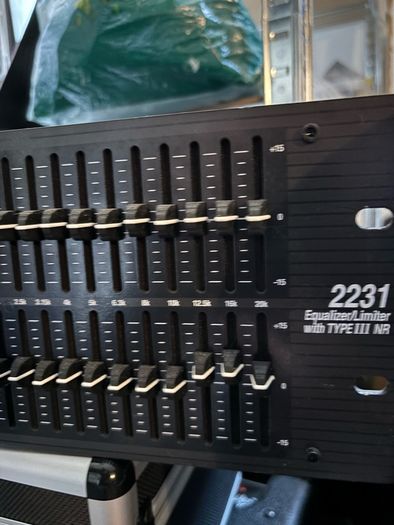

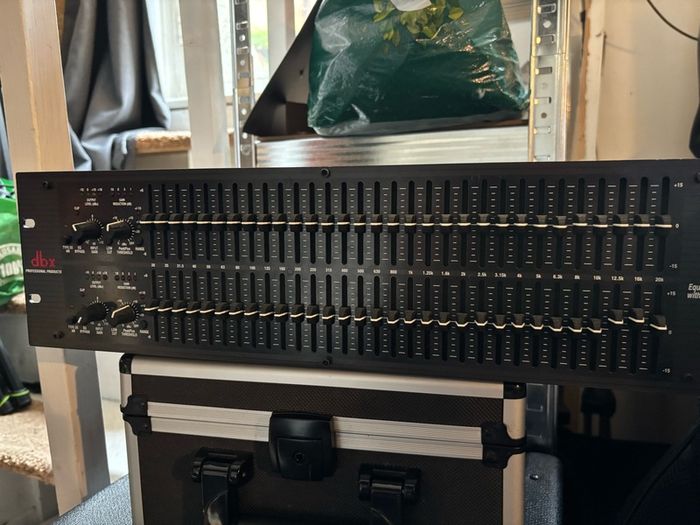

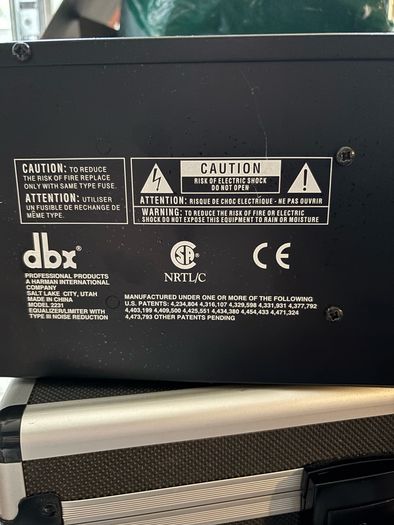

Dual 31 band graphic EQ with noise reduction and limiter.

In good condition - was part of a pa system for one venue and lived there until system upgrade.

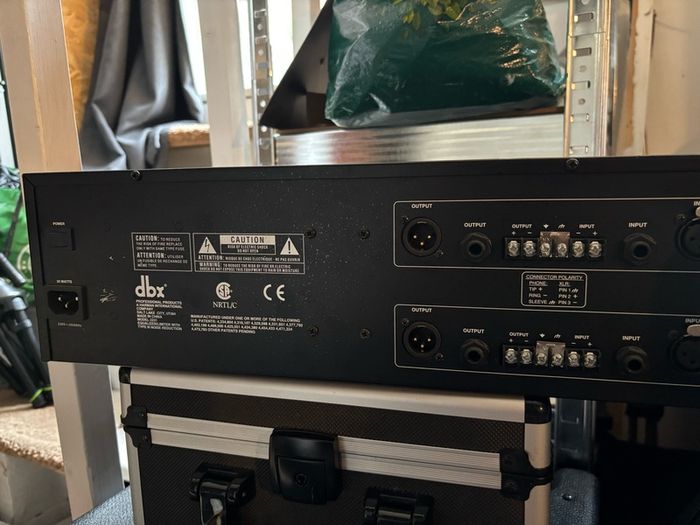

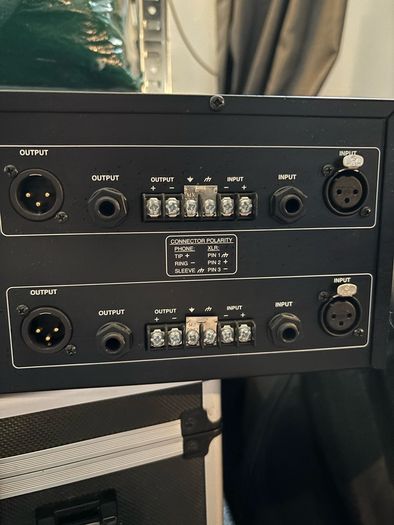

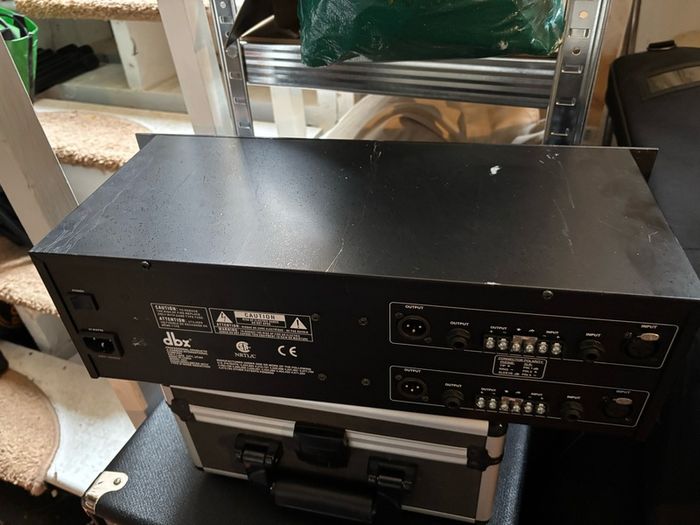

INPUT
Connectors: 1/4" TRS, female XLR (pin 2 hot), and barrier terminal strip
Type: Electronically balanced/unbalanced, RF filtered
Impedance: Balanced 40k ohm, unbalanced 20k ohm
Max Input Level: >+21dBu balanced or unbalanced
CMRR: >40dB, typically >55dB at 1kHz

OUTPUTS
Connectors: 1/4" TRS, male XLR (pin 2 hot), and barrier terminal strip
Type: Impedance-balanaced/unbalanced, RF filtered
Impedance: Balanced 200 ohm, unbalanced 100 ohm
Max Output Level: >+21dBu balanced/unbalanced into 2k or greater - >+20dBm balanced/unbalanced (into 600)

SYSTEM PERFORMANCE
Bandwidth: 20Hz to 20kHz, +/-0.5dB
Frequency Response: <10Hz to >50kHz, +0.5/-3dB
Noise Reduction In: (+/-6 and +/-12dB range):
Signal-to-Noise: >102dB, unweighted, ref: +4dBu, 22kHz measurement bandwidth
Dynamic Range: >120dB, unweighted
Noise Reduction Out: (+/-6dB range):
Signal-to-Noise: >94dB, unweighted, ref: +4dBu, 22kHz measurment bandwidth
Dynamic Range: >112dB, unweighted
Noise Reduction Out: (+/-12dB range):
Signal-to-Noise: >90dB, unweighted, ref: +4dBu, 22kHz measurement bandwidth
Dynamic Range: >108dB, unweighted
THD + Noise: <0.04%, 0.02% typical at +4dBu, 1kHz
Interchannel Crosstalk: <-80dB, 20Hz to 20kHz
Noise Reduction: Up to 20dB of dynamic broadband noise reduction

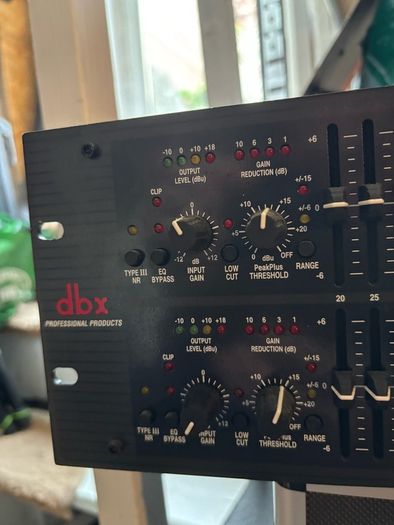

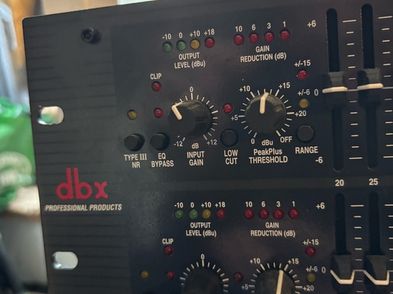

FUNCTION SWITCHES
Type III NR: Activates dbx Type III Noise Reduction
EQ Bypass: Bypasses the Graphic Equalizer section in the signal path
Low Cut (recessed): Activates the 40Hz 18dB/octave Bessel high-pass filter
Range (recessed): Selects either +/- 6dB or +/-15dB slider boost/cut range
