Description

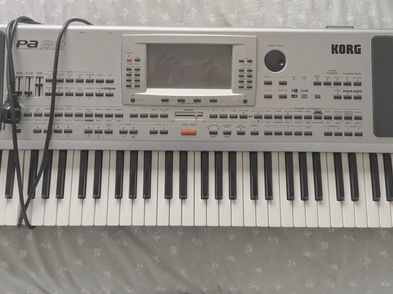

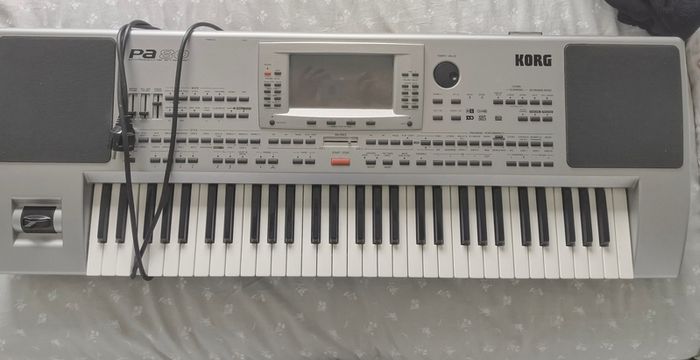

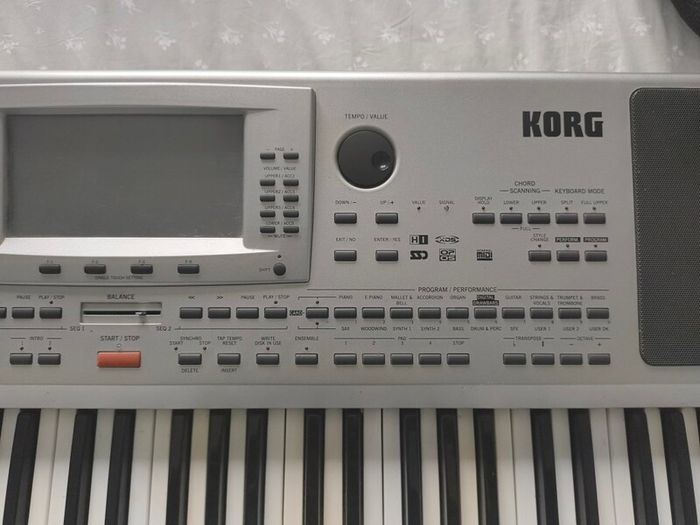

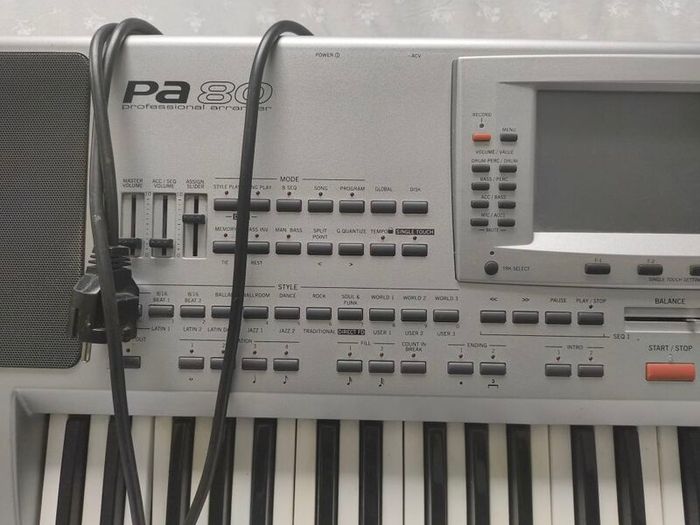

Korg PA-80 Professional Arranger 61-Key (Synth, Keyboard, Sequencer)

Good working and playing condition.
Exterior shows wear from use and transportation.
Some keys show wear to playing surface.
Display screen has some blank line areas (see photos).
No flash card included.
No music rest included.
Includes IEC detachable power cable.

Year of Release: 2000
System: Multitasking, Load while play feature
Tone Generator: KORG HI Synthesis - 62 Voices, 62 Oscillators – Filters with Resonance
Keyboard: 61 keys with Velocity and Aftertouch
Effects: 4 Stereo Digital Multi-Effect systems – 89 Effects types plus Vocoder
Programs-Drum Kits: More than 660 Programs (including Stereo Piano and GM Level 2 Programs) + 33 Drum Kits - 128 User Programs + 64 User Drum Kits – Digital Organ Drawbars - Program & Drum Kit Full Edit
Styles: 256 Factory + 48 User
Performance-STS: 160 Realtime Performance locations + 304 Styles Performances
Realtime Tracks: Four Keyboard tracks (Upper 1, 2, 3, Lower) - 4 Pad tracks
Song Play: Patented XDS Crossfade Dual Sequencer player - format 0 and 1 - GM compatible - Lyrics function
Song: Record & Edit functions (Transpose, Cut/Insert, Delete, Quantize, Copy, Velocity, Event Edit, Step Record) - Easy Sound Edit - 4 Effects – 16 tracks – SMF format
Backing Sequences: Real Time Record - Chord/Acc Step Record & Step Edit - 16 tracks – SMF format
Sampling: Record & Edit funcions (fully functional only with an optional flash rom card installed NOT INCLUDED) - Time Slice - Extend Slice - Wave Import of KSF (Korg Sample File), WAV and AIFF formats - Import of Triton Programs (PCG) - Import & Export of KMP (Korg Multisample)
Multi Pad: 4 Assignable (Sound & Functions) Pads + Stop Button
General Controls: Master Volume, Ensemble, Octave Transpose, Master Transpose, Split Point, Style Change, Tracks Volume, Quarter Tone Function, Programmable Slider, Joystick, Dial
Control Inputs: Damper Pedal, Assignable Pedal/Switch, EC-5
Audio Outputs: Left/Mono, Right, Out 1, Out 2, Headphones
Audio Inputs: Left/Mono, Right with separate Gain Controls (Mic, Guitar, Line)
MIDI: In, Out, Thru, Pc to Host (Pc and Mac compatible)
Floppy Disk Drive: 3.5" 2DD/2HD (Ms-Dos compatible)
Hard Disk: Optional 2.5" ATA hard disk drive
Display: Backlit Custom LCD
Amplification: 2 x 22 Watt, Auto Loudness Control, Fixed EQ
Speakers: 4 Speakers in Bass-Reflex Box
Power Consumption: 35 W
Dimensions: 1110 / 43.7" (W) x 388 / 15.3" (D) x 164 / 6.45" (H) mm / inch
Weight: 13.9 kg / 30.6 lbs
