Description

Xilica XP-4080, in good condition. Everything works as it should

Collection from Portlaoise or Dublin

Overview:

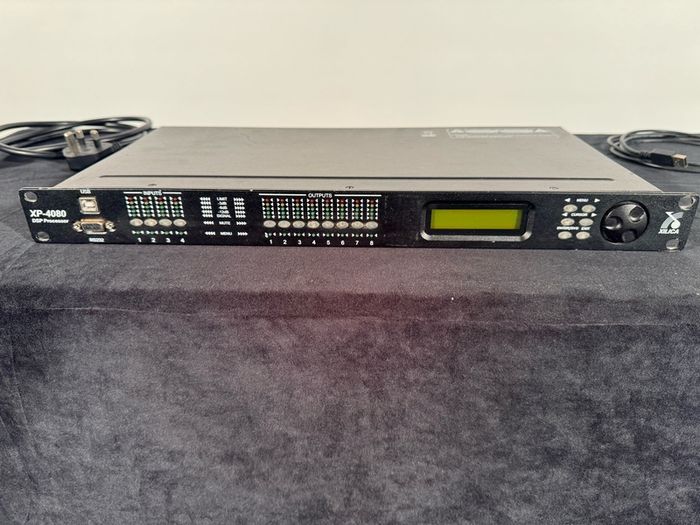

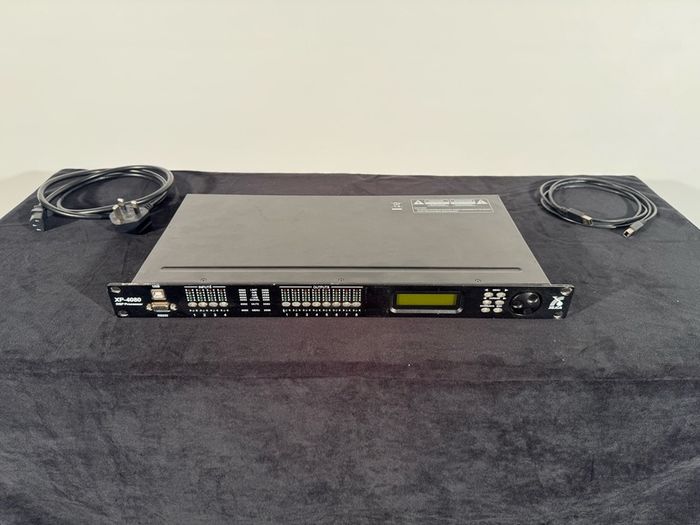

The Xilica XP-4080 is a professional 4-input, 8-output digital sound system processor designed for high-end live sound and fixed installation applications. Part of the renowned XP-Series, this unit is celebrated for its exceptional sonic purity, featuring high-quality 24-bit convertersand a 96kHz sampling rate to ensure a transparent signal path.
Technical Architecture & DSP Power:
The XP-4080 offers comprehensive signal processing on every channel. Whether managing complex line arrays, multi-way monitor systems, or multi-zone installations, its 40-bit floating-point DSP provides virtually unlimited headroom and precision.
Key Performance Specifications:

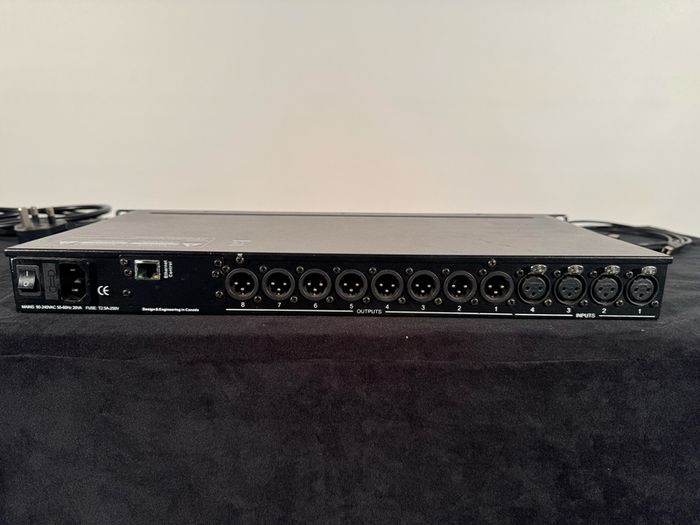

• Inputs/Outputs: 4 Balanced Inputs, 8 Balanced Outputs (XLR).
• Sampling Rate: 96 kHz.
• Converters: 24-bit Delta-Sigma.
• Processing: 40-bit Floating Point.
• Frequency Response: 20 Hz – 30 kHz (±0.1 dB).
• Dynamic Range: 115 dB (unweighted).
• Channel Separation: > 100 dB.
• THD + N: < 0.002% (1 kHz @ +4 dBu).
Comprehensive Signal Processing Features (Per Channel):
• Crossover Filters: Butterworth, Bessel, and Linkwitz-Riley (up to 48 dB/octave).
• Equalization: 8-band Parametric EQ on every input and output.
• Delays: Up to 650 ms per channel (input and output).
• Dynamics: High-performance Limiters and Compressors on all output channels.
• Matrix Mixer: Any input can be routed to any output with precise level control.
• Phase Control: 180-degree phase reversal.
Control & Connectivity:
• Front Panel: Intuitive interface with tactile encoders and high-contrast LCD for "on-the-fly" adjustments.
• Software Control: Full configuration via XConsole GUI (PC) through USB or RS232.
• Network: Optional Ethernet connectivity for remote system management (if applicable to your specific sub-model).
• Presets: 30 user-defined presets for instant scene recall.
Physical Characteristics:
• Form Factor: 1U Rackmount (19").
• Connectors: Gold-plated Neutrik XLR.
• Power Supply: Universal Switch Mode (90-265 VAC).
