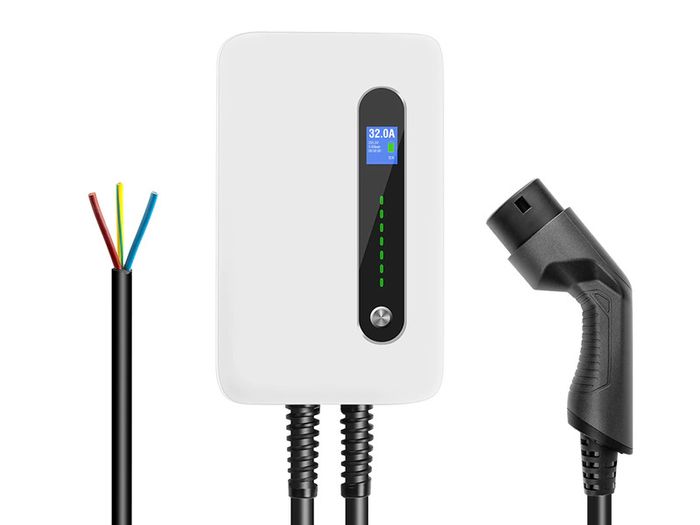

32A EVSE Wallbox EV Car Charger Electric Vehicle Charging Station Wall-mounted IP66 Type 2 Cable IEC 62196-2 Level 2 240V 7.6KW

Condition: New

Installation Method: Wall/Stand

Mode: C(with plug)

Certificate: CE

IP Rating: IP66

Rated Voltage: 220V - 240V

Rated Current: 32A

Maximum Power: 7.68KW

Phase Mode: Single Phase

Operating Temperature: -40°C ~ +70"C

Enclosure Material: ABS+PC alloy

Length of Cable: 6.1m

Diameter the electric wire: 2*8mm²+1*6mm²

package contents:

EV charging station *1

Metal back plate *1

30mm screw *10

Plastic bolt *10

10mm screw *4

User manual *1

Hook *1 (gift)

Installation Guide:


1.Drill holes according to the position of the iron plate

2. Hammer the 30mm plastic bolts into the holes

3. Fix the iron plate with 30mm screws on the wall

4. Embed the wall box into iron plateon the wall

5. Mounting screws from both sides. You can put the hook anywhere you need. The cable can be hungon the hook

6. Connect the power wire to the distribution box. This is the final completion picture after you successfully install the wall box


Instruction For Use:


1. Make sure the wall box is connected to the power

2. Press the button on the wallbox to start/stop charging

3. Connect the EV and the wallbox with the charging plug

Delivery Takes 2-3 Weeks
