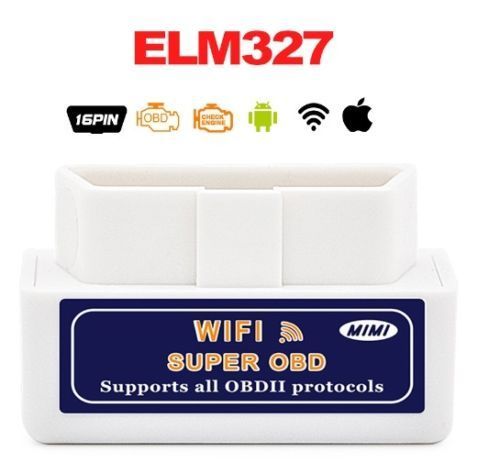

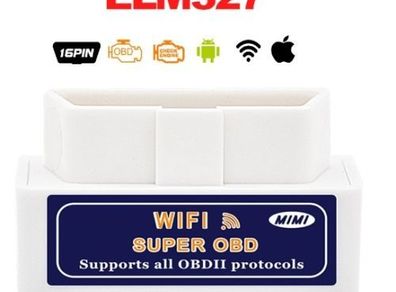

ELM 327 WIFI Auto Scanner Code Reader Scanner OBD2 OBDII Diagnostic Android & IOS iPhone Torque

Condition: New

Items can be collected from the Broombridge Road in Cabra/Finglas . Can also meet in Dublin 1 if given notice.

All item are new and not open to offers. Will do a deal if buying multiple items but this item is priced to sell and will not be discounted further

Can post same working day if paying via PayPal


1. Connection: WiFi
2 Supported Platform: Android Torque; IOS System; PC; WinXP; Win7 (32bite)
Pay attention: Don't support Win7 (64 bit) and Win8
3 Multi-Languages:
Czech, Danish, German, English, Spanish, French, Croatian, Hungarian, Italian, Polish, Serbian, Turkish

Wireless OBD VGATE Technical Specifications
SSID: CLKDevices
IP: 192.168 . 0.10
Subnet: 255.255 . 255.0
Port: 35000
Range: 50 ft (line of sight)
Antenna: Internal
Power consumption: 0.75 Watts (with power switch)
WiFi standard: 802.11 a/b/g
Operating Temperature: -15 to 100 Deg Celsius
Plastic: Automotive Grade

Features:
CLK is capable of communicating with vehicles which adopt following protocols:
ISO 9141
ISO 11898 (aka. CAN)
ISO 14230 (aka. KWP2000)
ISO 15765 (aka. CAN)
SAE J1939

Wireless OBD AUTO CHECKER is able to detect and interpret these protocols automatically. It also provides support for high speed communications and a low power sleep mode. It use AT commands to communicate with a host device (PC, notebook, iPhone, iPod touch, iPad and so on). There are plenty of software packages available, which are fully compatible with WI-FI OBD AUTO CHECKER. Some of them have pretty useful features, such as engine running parameters monitoring, DTC reading and clearing, MPG meter, etc. You can even write your own software on a specified hardware platform if you wish, because the AT commands are fully documented and very well explained.

Functions:
1. diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2. clear trouble codes and turn off the MIL ("Check Engine" light)
3. display current sensor data
4. Engine RPM
5.Calculated Load Value
6. Coolant Temperature
7. Fuel System Status
8. Vehicle Speed
9. Short Term Fuel Trim
10. Long Term Fuel Trim
11.Intake Manifold Pressure
12.Timing Advance
13. Intake Air Temperature
14. Air Flow Rate
15.Absolute Throttle Position
16. Oxygen sensor voltages/associated short term fuel trims
17. Fuel System status
18. Fuel Pressure

Vehile list:
It supports 12V diesel cars, can not supports Diesel Cars.
As we do not test it on all cars, we can not make sure whether it can be used on your car.
Maybe you can buy one to have to try.

Package:
1 x ELM327 WiFi Wireless OBD2 Interface
1 x Software CD
