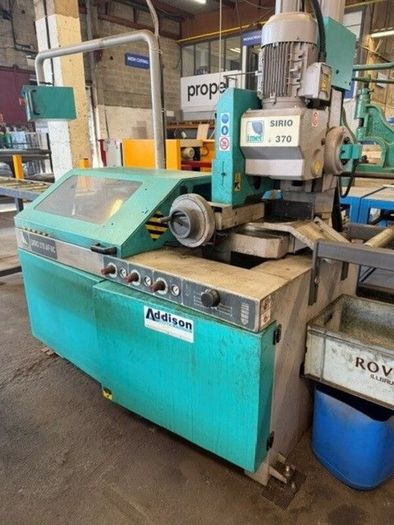

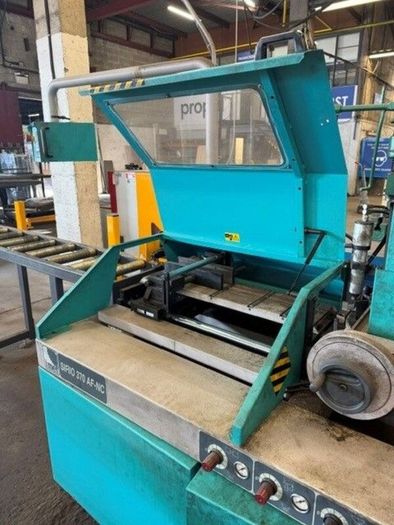

REDUCED PRICE - Automatic CNC circular saw

Automatic Tube Cutting Saw
omatic CNC vertical column circular saw; mitre cutting from 0° to 45° right (only semiautomatic cycle) and from 0° to 60° left.

Suited to cut high-resistance steel, the version with electronic Inverter widens the cutting possibilities, from stainless steel to brass and copper.

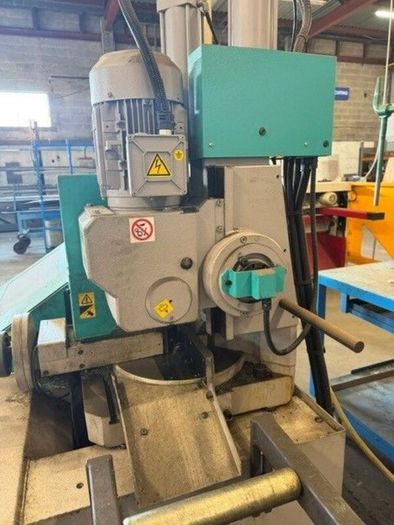

Primary transmission with pulleys and cogged belt, final reduction in oil bath with big-size bronze crown gear.
Vice with adjustable guides, free to move alongside the worktable, with quick motion and clamping; anti-burr adjustable device, pneumatic vertical vice.
Blade spindle with 40 mm diameter.
Electro-pneumatic driven functioning,hydraulic control of the down-feed speed of the head.
Feeder movements by electric motor with encoder,200 mm. opening, minimum stroke 4 mm.(minimum scrap-end 170 mm.), maximum stroke 520 mm.

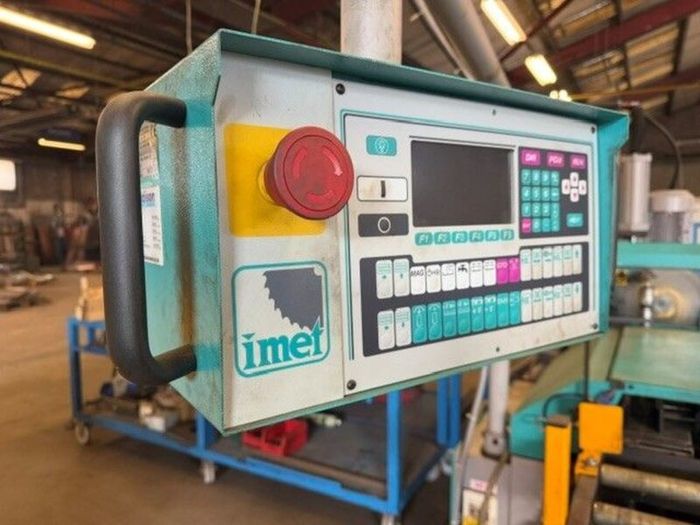

Up to 99 programs can be memorized, each one with different cutting lengths and number of cuts.
Cutting capacity at 90 °, round till 120 mm., square till 100 mm., rectangular till 180×100 mm.

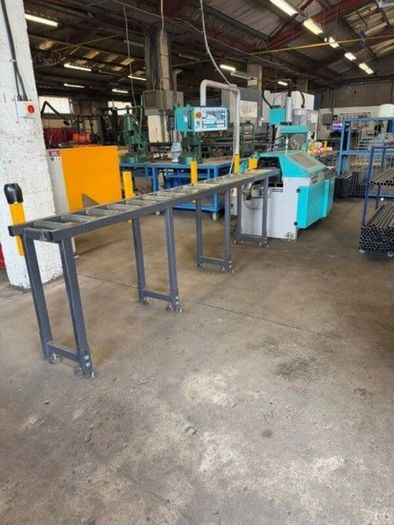

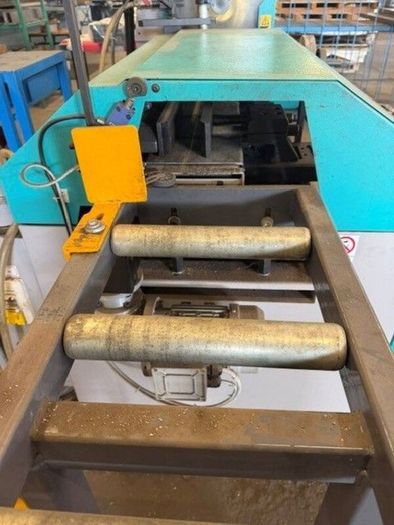

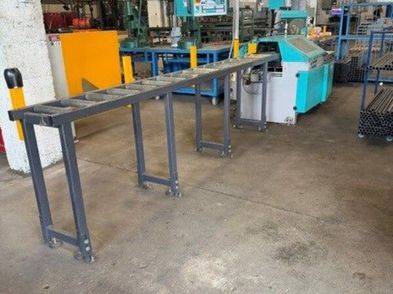

Front & Back Roller Feed included
