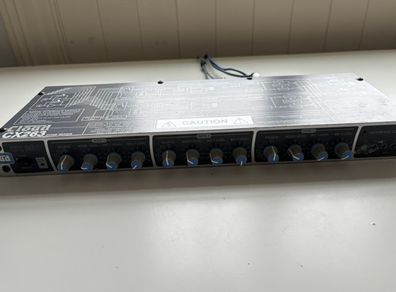

Cloud cx263 Three zone mixer and controls

The Cloud CX263 is the ideal solution for leisure, licensed and retail venues.

This compact unit has 6 line level inputs and 2 mic inputs with paging microphone access on Mic 1. The CX263 has one stereo and two mono zones. The line inputs and mics can be independently routed to any output zone via the front panel controls, alternatively the music signals on each zone can be controlled remotely by the RL-1 (level only) or RSL-6 (source and level).

Additional remote control functions can be provided by the optional serial interface card (RS232) CDI-S200 shown fitted on the rear panel which can control the music level and source on each zone, access for Mic 1 on each zone, and access for Mic 2 on each zone. This compact unit is easy to install and operate but has the flexibility to provide a solution for many differing environments.
