Description

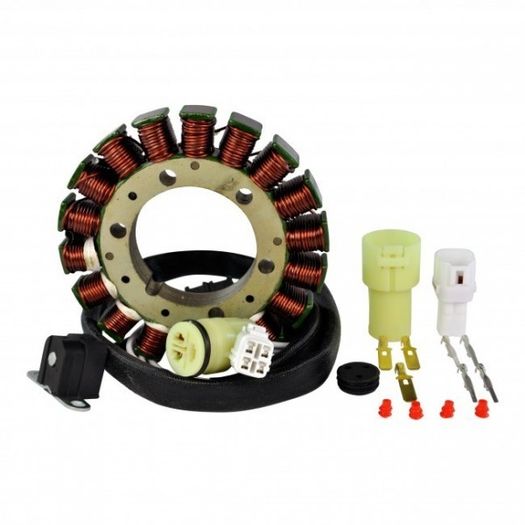

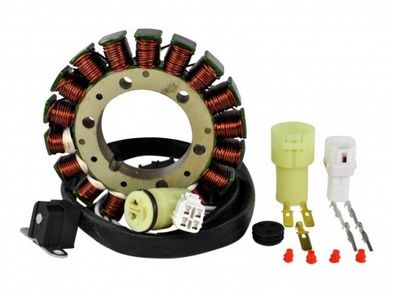

Stator
2007 Yamaha YFM 400 Grizzly

2000 Yamaha YFM 400 Kodiak California

2000 Yamaha YFM 400 Kodiak 4x4 Automatic

2000 Yamaha YFM 400 Kodiak 4x4 Automatic California

2000 Yamaha YFM 400 Kodiak 4x4 California

2000 Yamaha YFM 400 Kodiak 4x4
2001 Yamaha YFM 400 Kodiak 4x4
2002 Yamaha YFM 400 Kodiak 4x4
2003 Yamaha YFM 400 Kodiak 4x4
2004 Yamaha YFM 400 Kodiak 4x4
2005 Yamaha YFM 400 Kodiak 4x4
2006 Yamaha YFM 400 Kodiak 4x4
2001 Yamaha YFM 400 Kodiak
2003 Yamaha YFM 400 Kodiak
2004 Yamaha YFM 400 Kodiak

2007 Yamaha YFM 450 Grizzly Silver Special Edition

2007 Yamaha YFM 450 Grizzly 4x4
2008 Yamaha YFM 450 Grizzly 4x4
2009 Yamaha YFM 450 Grizzly 4x4
2010 Yamaha YFM 450 Grizzly 4x4
2011 Yamaha YFM 450 Grizzly 4x4
2012 Yamaha YFM 450 Grizzly 4x4
2013 Yamaha YFM 450 Grizzly 4x4

2014 Yamaha YFM 450 Grizzly
2003 Yamaha YFM 450 Kodiak 4x4
2004 Yamaha YFM 450 Kodiak 4x4
2005 Yamaha YFM 450 Kodiak 4x4
2006 Yamaha YFM 450 Kodiak 4x4

2006 Yamaha YFM 450 Wolverine 4x4 Sport
2007 Yamaha YFM 450 Wolverine 4x4 Sport

2007 Yamaha YFM 450 Wolverine Sport Special Edition

2008 Yamaha YFM 450 Wolverine 4x4
2009 Yamaha YFM 450 Wolverine 4x4
2010 Yamaha YFM 450 Wolverine 4x4

2009 Yamaha YFM 450 Wolverine 4x4 Automatic

OEM 5gh-81410-00-00
5nd-81410-00-00

Pick up pulsar coil included
Connector included
Highest grade copper windings, resistant to 200 degrees Celsius
Dimensions :
Interior diameter: 53 mm
Exterior diameter: 115 mm
Thickness: 16 mm
Length of wires stator to grommet: 160 mm
Length of wires grommet to plug: 460 mm
Length of pickup coil's wire to grommet: 110 mm

Other specifications :
Number of wires: 7
Number of plugs: 2
Number of pins: 7

Wire to wire resistance :
Alternator: White Between each White = 0.4 ohms +/-20%
Pickup: Green to Blue = 440 ohms +/-20%
