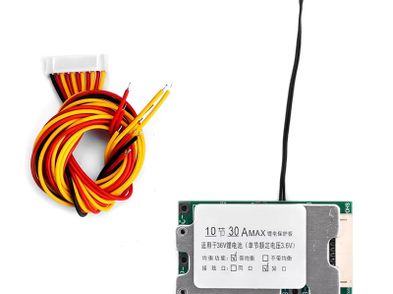

10S 36V 30A Lithium Battery BMS Board

Condition: New

Model: 10 strings of 36V/30A

Applicable voltage power: 36V; <1000W

Applicable battery type: 3.7V ternary battery, lithium cobalt oxide, lithium manganate battery

Function description: lithium battery - overcharge protection; overdischarge protection; overcurrent protection; output short circuit protection.

Maximum operating current: 40A MAX

Continuous working maximum current: 25A MAX

Over discharge protection voltage: 2.6V

Overcharge protection voltage: 4.25V

Charging current: 10A MAX

Balance charging function: with this function, the balance voltage is 4.2V

Application areas: electric vehicles; twisting vehicles; electric power bicycles; scooters; inverters, etc.

Dimensions: 64mm*35mm*9mm

Unit weight: 60g
