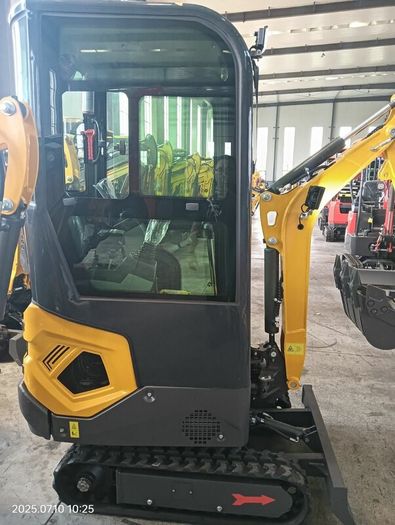

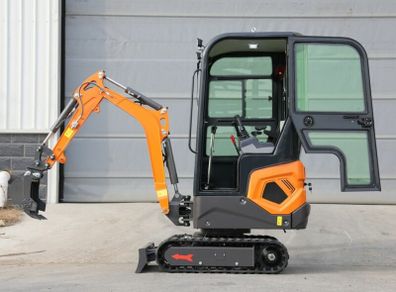

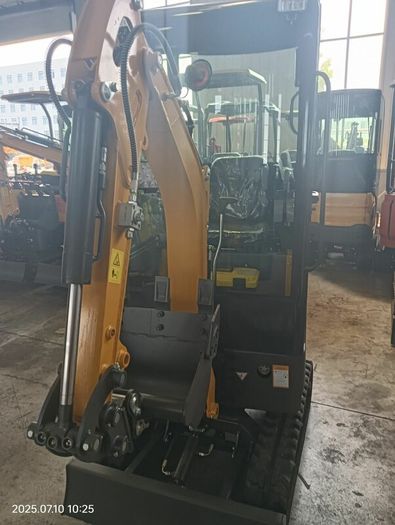

Mini Excavator

SDJK Mini Excavator

Chassis Width 930mm
Track Length 1200mm
Chassis Ground Clearance 370mm
Gradeability 30°
Track Width 180mm
Volume Of Fuel Tank 5.5L
Transport Length 2870mm
Excavator Height 2285mm
Overall Dimension 2870*930*2285mm
Engine Model KOOP 192F
Engine Power 7.6kw/2400rpm;10.2 kw;10kw/420cc
Turning Radius 1490mm
Max. Digging Height 2490mm
Max. Dumping Height 1745mm
Max. Digging Depth 1725mm
Max. Digging Radius 3030mm
Max. Vertical Digging Depth 1655mm
Bucket Excavating Force 6.5KN
Operating Weight 1200kg

Make: Other
Machinery Type: Excavators
