Description

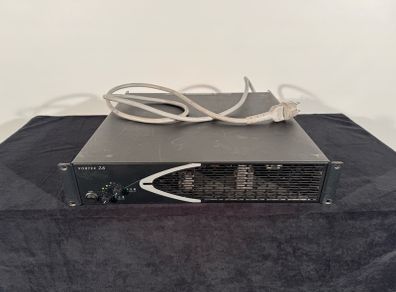

Camco Vortex 2.6 in good condition, everything works as it should

Collection from Portlaoise or Dublin

Overview:
The Camco Vortex 2.6 is a high-fidelity, professional power amplifier designed for touring and high-end installations. While the Vortex 6 focuses on raw power for subwoofers, the Vortex 2.6 is widely regarded for its exceptional transient response and sonic transparency, making it the perfect choice for driving top-tier line arrays, monitor wedges, or mid-high sections.
Technical Architecture:
Built on the same legendary platform as its larger siblings, the Vortex 2.6 features a sophisticated Switch Mode Power Supply (SMPS) and advanced class-H output topology. It offers an incredible power-to-weight ratio while maintaining the thermal stability required for 24/7 operation.
Key Performance Specifications:
Output Power (RMS @ 1kHz, THD < 0.1%):
2 x 1100 W @ 2 Ω
2 x 810 W @ 4 Ω
2 x 450 W @ 8 Ω
1 x 2200 W @ 4 Ω (Bridge Mono)
1 x 1620 W @ 8 Ω (Bridge Mono)
Advanced Engineering Features:
Peak Limiter: Integrated intelligent limiting that prevents clipping without sacrificing musical dynamics.
Input Sensitivity: Internally switchable (e.g., 1.4V / 26dB / 32dB) to match any signal chain.
Protection Circuitry: Full suite including DC, Thermal, Short Circuit, RF, and Soft Start.
Cooling System: Temperature-controlled variable speed fans with optimized front-to-rear airflow.
Physical Characteristics:
Form Factor: Standard 19" Rackmount, 2U height.
Weight: Only 9.4 kg (20.7 lbs) – making it one of the lightest professional amps in its class.
Connectors: 2 x Neutrik XLR (In/Link), 2 x Neutrik Speakon NL4.
