Description

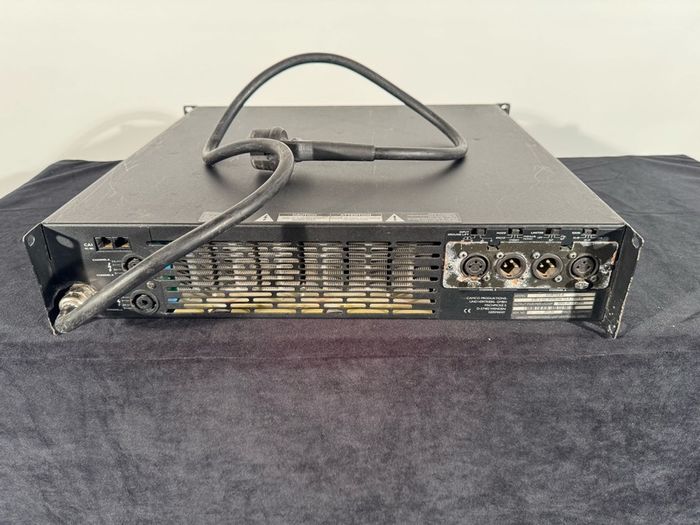

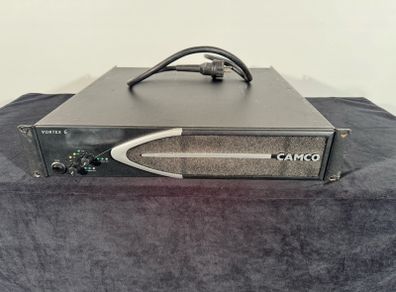

Camco Vortex 6
In good condition, everything works as it should

Collection from Portlaoise or Dublin

Overview:
The Camco Vortex 6 is a high-performance, professional power amplifier engineered for the most demanding touring and installation environments. It represents the pinnacle of German audio engineering, combining a sophisticated Switch Mode Power Supply (SMPS) with a high-efficiency output stage to deliver massive power with surgical precision.
Technical Architecture & Power Delivery:
Unlike standard class-D amplifiers, the Vortex 6 utilizes a refined high-speed power supply capable of delivering extreme peak currents. This ensures that the amplifier maintains its sonic integrity and "punch" even when driving difficult 2-ohm loads or complex subwoofer arrays.
Key Performance Specifications:
Output Power (RMS @ 1kHz, THD < 0.1%):
2 x 3300 W @ 2 Ω
2 x 2300 W @ 4 Ω
2 x 1350 W @ 8 Ω
1 x 6600 W @ 4 Ω (Bridge Mono)
1 x 4600 W @ 8 Ω (Bridge Mono)
Advanced Features & Protection:
Dynamic Peak Limiter: Transparent protection circuit that prevents clipping while maintaining maximum dynamic range.
Comprehensive Protection Suite: Includes Over-temperature, DC offset, Short circuit, RF interference, and Soft-start to prevent tripping breakers on power-up.
Thermal Management: Ultra-quiet, variable-speed fans with front-to-rear airflow, optimized for high-density rack mounting.
Remote Monitoring: Equipped with the CAI (Camco Audio Interface) slot for remote control and system monitoring (if applicable).
Physical Characteristics:
Chassis: Heavy-duty 2U steel/aluminum hybrid.
Weight: 12.4 kg (27.3 lbs) – exceptional power-to-weight ratio.

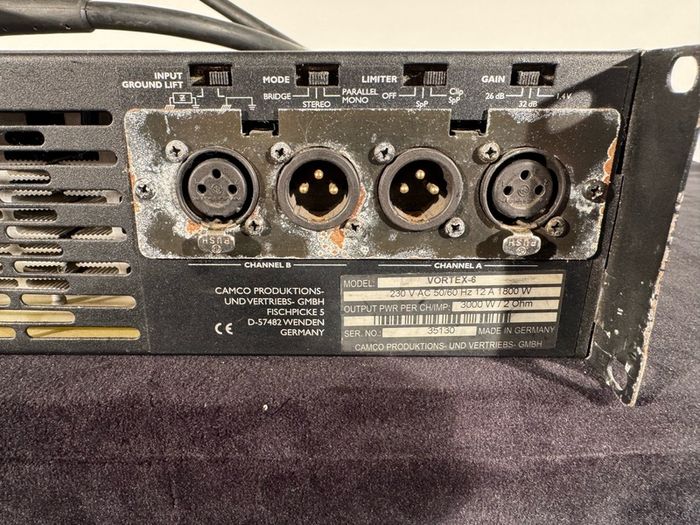

Connectors: 2 x Neutrik XLR (In/Link), 2 x Neutrik Speakon NL4.
