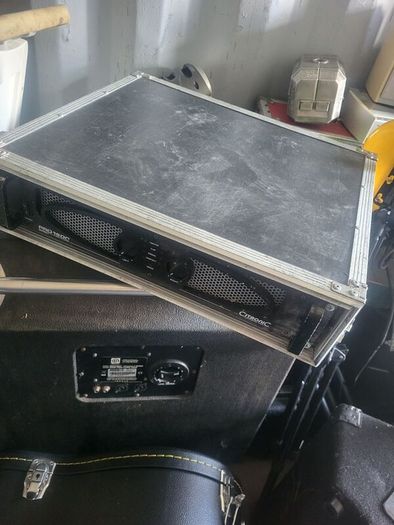

Citronic PRO1500 professional power amplifier

​Model: Citronic PRO1500 (Part No. 171.206UK)

​Rack Size: 2U Rackmount format

​RMS Power Output:

​2 x 750W RMS @ 4\ \Omega

​2 x 500W / 2 x 390W RMS @ 8\ \Omega (depending on impedance load mode)

​1 x 1250W–1500W RMS Bridged @ 8\ \Omega

​Features & Layout

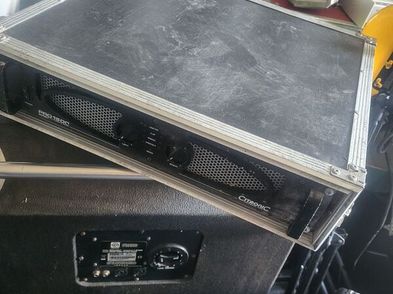

​Front Panel

​Controls: Twin volume attenuators for Left (Channel A) and Right (Channel B) control.

​Status LEDs: Indicators for Limiter, Clip, Signal, Protect, and Mode.

​Power: Heavy-duty rocker power switch on the left side.

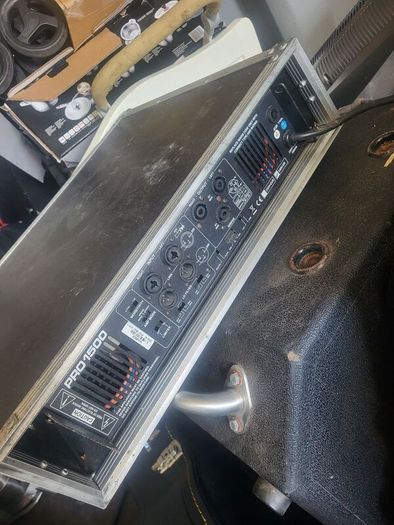

​Rear Connections & Controls

​Inputs:

​Combo balanced XLR / 6.35mm (1/4") Jack input connectors.

​Parallel XLR male Link outputs for daisy-chaining signal to additional amplifiers.

​Outputs:

​Twist-lock Speakon outputs for Left, Right, and Bridged mono setup.

​Heavy-duty 4mm binding post / screw terminal output options.
