Description

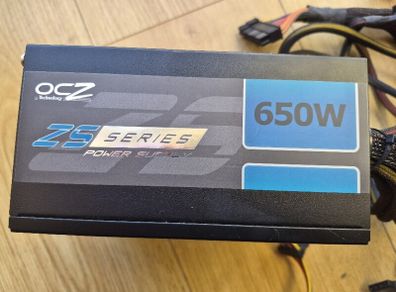

OCZ ZS Series 650W Power Supply

Model: OCZ-ZS650W-EU/UK

100% working

Please make sure this model will suit your desktop as it has "few" years. Description below is a combination of avaiable materials on web.

OCZ ZS650W-EU / UK — Overview

The OCZ ZS Series 650W is a non-modular ATX power supply designed for mid-range gaming PCs. It targets “value-oriented” systems but still supports multi-GPU setups like NVIDIA SLI and AMD CrossFire.

Rated power: 650W continuous
Efficiency: 80 PLUS Bronze (~85–86%)
Cooling: 135 mm temperature-controlled fan
Rail design: Single +12V rail
Form factor: ATX12V v2.2 / EPS12V
Build: Non-modular (fixed cables)

Electrical Specifications
Input voltage: 220–240V AC (EU/UK version)
Frequency: 50–60 Hz
+12V rail: ~38–46A
+3.3V: 22A
+5V: 22A
-12V: 0.3A
+5VSB: 3A
Active PFC
Typical efficiency: ≈85% (Bronze)
Operating temp rating: continuous at 40°C

Connector List

Motherboard / CPU
1 × 20+4 pin ATX (main motherboard)
1 × 4+4 pin EPS12V (CPU power)
GPU (PCIe)
1 × 6-pin PCIe
1 × 6+2-pin PCIe

2 × 6-pin + 2 × (6+2) PCIe
8 × SATA power connectors
3–4 × Molex (Peripheral / IDE)

Notes
All cables are fixed (non-modular)
Cable length is moderate

Physical & Design
Dimensions: 150 × 160 × 86 mm
Weight: ~1.7 kg
Fan: 135 mm double ball-bearing, load-controlled
Topology: classic double-forward design (Sirfa OEM)

Built-in safety protections:

OVP – Over Voltage Protection
OCP – Over Current Protection
SCP – Short Circuit Protection

Certifications & Compliance

The ZS650W-EU/UK includes multiple international certifications:

80 PLUS Bronze (efficiency certification)
CE (EU conformity)
UL / cUL (safety certification)
CB Scheme (international safety)
FCC Class B (EMI compliance)
TÜV (German safety certification)
CCC (China Compulsory Certification)
C-Tick (Australia/New Zealand EMC)

Price is 50 euro. Collection from Churchtown, Dublin only. Acceptable payment methods are: cash, bank transfer, Revolut or Paypal (+2,6% paypal fees).
