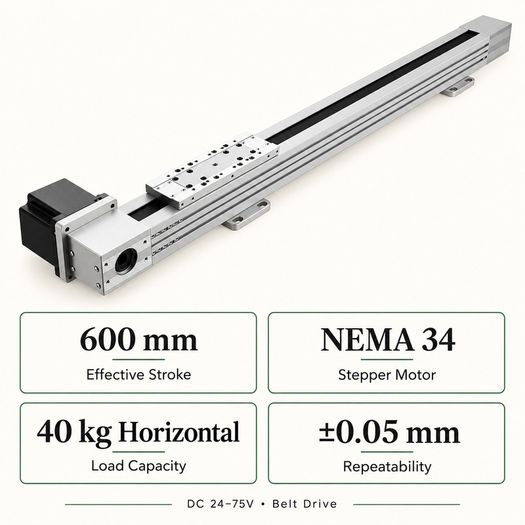

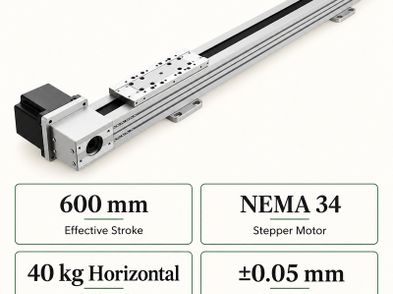

600mm CNC Linear Actuator with NEMA 34 Stepper Motor

Condition: New

Free delivery 5-8 working days

Available to purchase on our website

https://www.mcafeesshop.com/product-page/600mm-cnc-linear-actuator-with-nema-34-stepper-motor


🛒🛒Shop securely with a VAT registered Irish Trader


600mm CNC Linear Guide Rail with NEMA 34 Stepper Motor Belt Drive Actuator

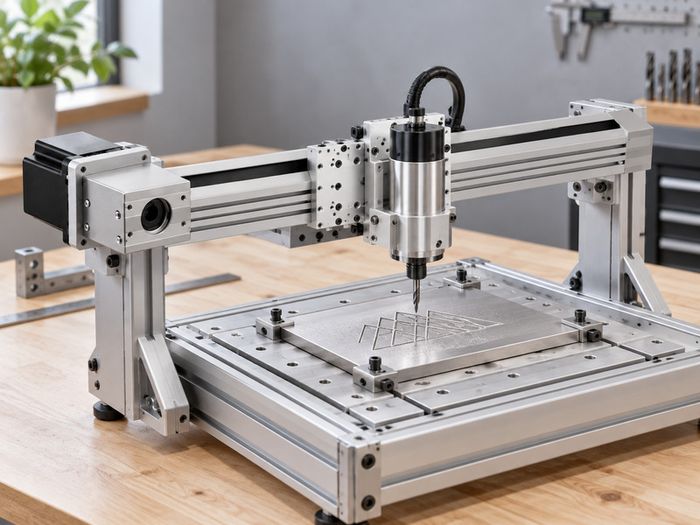

Create smooth, accurate linear movement for CNC and automation projects with this 600mm belt-driven linear guide rail. Supplied with a NEMA 34 stepper motor and aluminium slide block, it is a practical solution for engraving machines, CNC milling machines, 3D printers, DIY automation builds and replacement motion systems.

The belt-drive design is suited to high-speed positioning over a 600mm effective working stroke, while the precision-machined rail and mounting holes help support straightforward installation and repeatable movement. Built from aluminium and chrome-plated steel, the unit is designed for dependable use in workshops, studios and suitably protected indoor spaces.

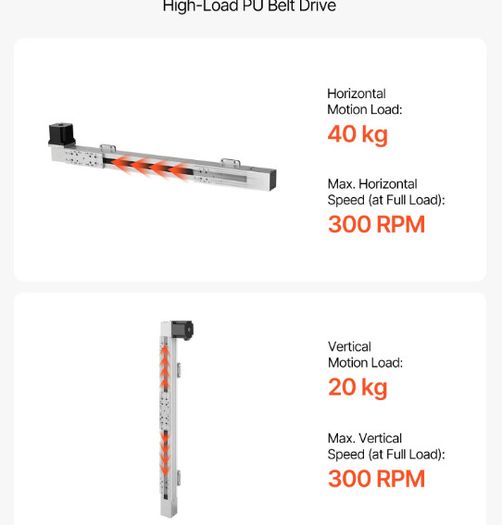

The rail can be mounted horizontally or vertically, with a load capacity of up to 40kg when used horizontally and up to 20kg when used vertically. With repeatability of ±0.05mm, it is well suited to projects where controlled, consistent movement is important.

Features

600mm effective stroke for CNC, engraving, milling, 3D printing and automation projects
NEMA 34 stepper motor with belt-drive linear motion system
Aluminium slide block and chrome-plated steel construction
Up to 40kg horizontal load capacity
Up to 20kg vertical load capacity

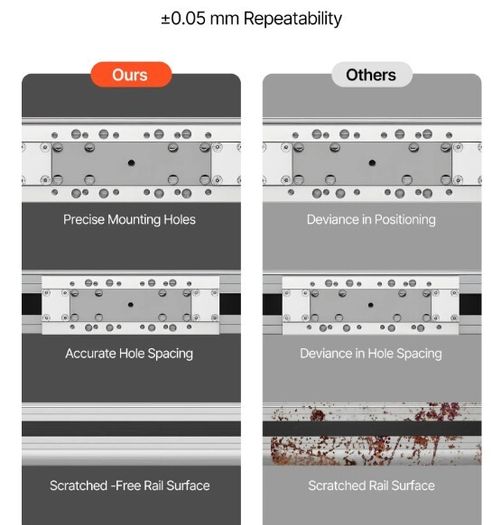

±0.05mm repeatability for accurate positioning
Corrosion-resistant electroplated finish, suitable for use in humid indoor environments
Precisely spaced mounting holes to assist installation and DIY assembly
Specifications

Product type: Belt-drive CNC linear guide rail actuator
Effective stroke: 600mm
Motor: NEMA 34 stepper motor
Motor rated voltage: DC 24–75V
