Description

Condition: New

Specification

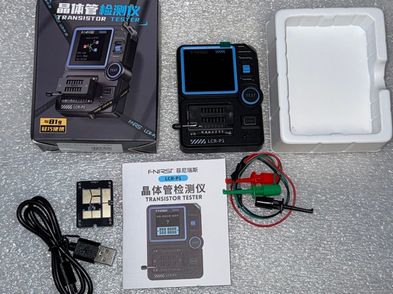

Product Model: LCR-P1
Display: 1.44 inch
Battery capacity: 300mAH lithium battery (built-in lithium battery)
Charging specifications: USBType-C, 5V/1A

Technical parameters
Triode:
Range: 10<β<600
Description: amplification hfe,base-emitter voltage Ube,Ic/le,collector-emitter reverse cutoff current lceo,lces,protection diode forward voltage drop Uf

diode:
Range: forward voltage drop <4.5V
Description: forward voltage drop,junction capacitance,reverse leakage current

Voltage regulator diode:
Range: 0.01-4.5V , 0.01-32V
Description: (1-2-3 test area) forward voltage drop, reverse breakdown voltage, (K-A-A test area) reverse breakdown voltage
Field Effect Tube:
Range: JFET, IGBT, MIOSTET
Description：Gate Capacitance Cg,Drain Current ld under Vgs,Protection Diode Forward Voltage Drop Uf,Drain
Current ld under Vgs,Protection Diode Forward Voltage Drop Uf,Turn-On Voltage Vt,Gate Capacitance Cg,Drain-Source Resistance Rds,Protection Diode Forward Voltage Drop Uf
Unidirectional thyristor/bidirectional thyristor:
Range: turn-on voltage <5V (unidirectional SCR), gate trigger current <6mA (bi-directional SCR)
Description: Gate Voltage

Capacitance:
Range: 25pF~100mF
Description: capacitance value, loss factor Vloss, internal resistance ESR

Resistor:
Range: 0.01Ω~50MΩ
Description：Resistance value

Inductance:
Range: 10uH-1000uH
Description：Inductance,DC resistance

Battery:
Range: 0.1-4.5V
Description：Voltage, Positive and negative polarity
Infrared remote control decoding:
Range: NEC protocol infrared code
Description：Display user code and data code, and display the corresponding infrared waveforms
