Jasic Evolve 200+ Pulse Aluminum Inverter Welder

Condition: New

>>>>>BACK IN STOCK!!<<<<<

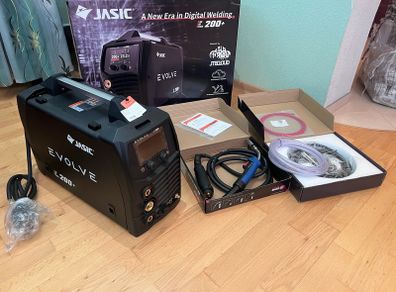

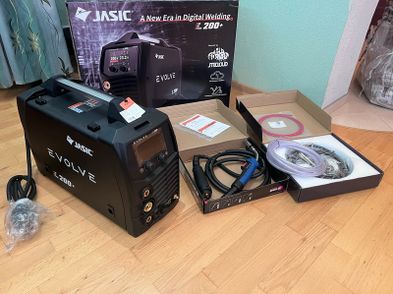

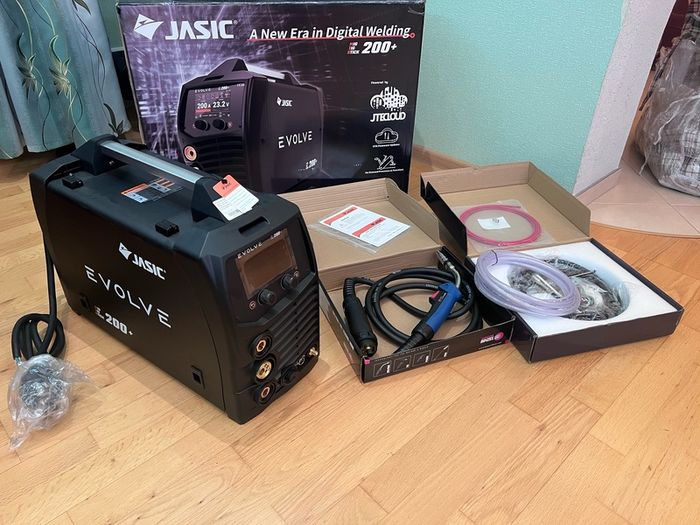

Condition: New in Box, 1 year warranty. Few different and most popular models in stock all the time, any other Jasic products (welders, plasma cutters, etc...) possible to preorder (deposit will be required).

Fresh new modern model, top of the range with with the latest hi-tech technology ! This company doesn`t need any introduction, bulletproof welders! ***CAN DELIVER WITHIN CORK CITY FOR AN ASKING PRICE, otherwise €1550 upon collection in Rochestown. -> NOT taking lower offers!***

The JASIC EVOLVE 200+ stands out due to its fully digital control system integrated with IoT technology, making it ideal for those seeking a future-proof welding experience. By leveraging the power of JTECloud and over-the-air (OTA) firmware updates, the machine remains up to date, providing exceptional adaptability and top-tier performance.

Technical Data:
Processes MMA/MIG/MAG/Pulse MIG/Double Pulse MIG/Lift TIG/HF TIG
Power supply 1ph~AC230 V, 50/60 Hz
Rated input power 5.83 kVA
Power factor 0.65
Rated efficiency 82%
Rated no-load voltage 77 V
Rated maximum output MMA 180 A/27.2 V, MIG/MAG 200 A/24 V, Lift TIG/HF TIG 200 A/18 V
Rated duty cycle 25% @40℃
Welding output range MMA 20180 A, MIG/MAG 20200 A, Lift TIG/HF TIG 5~200 A
Protection class IP23S
Insulation class H
Welding wire material SG2/SST (CrNi)/AlMg5/AlSi4/Cusi3
Cooling method Air cooling
Dimensions 605 x 400 x 230 mm
Weight 17.0 kg
