VEVOR 4KW 2220V Air Cooled Spindle Motor ER25 CNC Air Cooling Spindle Motor for CNC Engraving Milling Machine

Condition: New (130)

Collection is available in the Kilkenny Area

Nationwide Delivery for €6 extra

VEVOR 4KW 2220V Air Cooled Spindle Motor ER25 CNC Air Cooling Spindle Motor for CNC Engraving Milling Machine

Technical Parameters: Spec: φ3 x 13 in (Diameter: 7.5 cm x Length: 33.9 cm); Power: 4KW; Voltage: 220V; Current: 13.5A; Collet Size: ER25; Bearings: 4 bearings; Frequency: 300 Hz; Speed: 18000 R/min; Runout off: less than 0.002 mm. Mainly used for engraving machine or used with frequency converter.

ER25 Standard Collet: The collet of the CNC router spindle is quenched with manganese steel, and the runout is less than 0.002mm, which has high precision and is not easy to break the knife, increasing the stability of the working process. Dynamic balance technology can effectively reduce noise during use.

Powerful Bearing: The air spindle motor adopts imported bearings with high accuracy, precision, and durability. Significantly improve the hardness and anti-rust performance.

Low Noise & Heat Dissipation: The dynamic balance technology can effectively reduce the noise during use. The scientifically designed air cooling system has a better heat dissipation effect to ensure smooth operation.

Wide Application: The CNC spindle motor kit is mainly used for engraving machines or frequency converters. It uses air circulation to cool the heat and has a good heat dissipation effect.

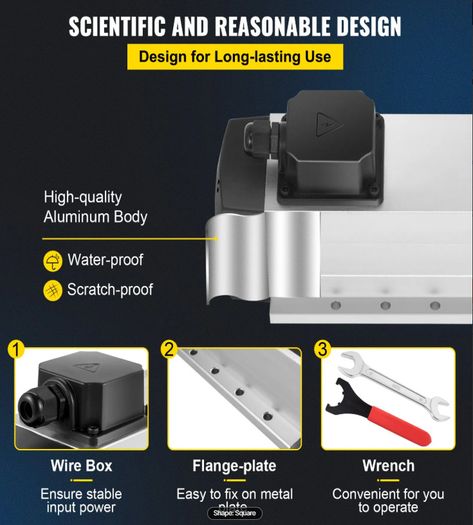

4KW Air Cooled Spindle Motor
ER25 Collet & Four Bearings & 18000 R/min
These spindle motors adopt imported bearings and high-quality materials, and their service life is three times that of ordinary spindle motors. Widely applicable to engraving machines for wood, stone, metal, and other materials.
Technical Parameters
ER25 Standard Collet
Powerful Bearing
Low Noise & Heat Dissipation

To See All Our Other Ad’s Click Here >>> https://www.adverts.ie/for-sale/q_a1stuf/

Please do your own research before purchasing. Some of our products listed as new may have outer box wear, minor scuffs, be repackaged or opened for inspection or testing.
