Description

Condition: New

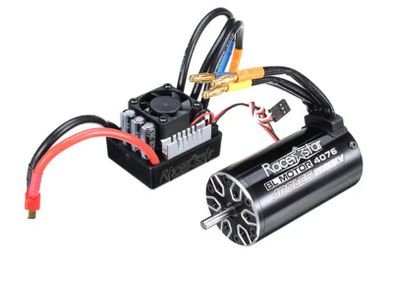

Racerstar 4076 Brushless Waterproof Sensorless Motor 1700KV 120A ESC 1/8 Cars RC Car Parts

The brand new boxed set for any brushless 1/8 and 1/10 electric RC car, IT'S A BEAST very strong, very powerful and very fast, its a toy for big boys!!!
I'm using one myself on a big 1/8 monster truck and it's just flying with this set!!!
If you need a different adapter for your battery to connect this ESC just let me know and I make one.
Also can make any other adapter (5€ each) EC3, EC5, Deans T plug, XT30, XT60, XT90, Traxxas, serial, parallel just ask.

Can deliver within 5km Coolock, Clonshaugh, Finglas, Clarehall, Artane, Santry.
Postage 9€ with registered anpost or parcel motel

Brand: Racerstar
Item: 4068 Motor (1700KV) & 120A ESC
Waterproof Level: Splash-proof

Motor Features:
- 4 pole 12 slots hi-torque motor design
- CNC machined 6061 T6 billet aluminum heatsink can
- High purity copper windings maximize efficiency
- High RPM ABEC 5 oversized bearings
- Universal fit, fits all 1/8, 1/10 brushless cars
- Precision balanced rotor, smoothness for best reliability and maximum RPM
- Stator- super thin 0.2mm laminations
- Removable/replaceable rotor
- Precision engineered for maximum energy conversion
- ROAR legal

Motor Specification:
Max Power: 2800W
Max Voltage: < 21V
Max Amps: 135A
Rotor Poles: 4
IO: 2.3A
Resistance: 0.0079
KV (RPM / Volt): 2000
Max RPM: 50000
Length: 68mm
Diameters: 40 / 42mm with fins
Weight: About 405g
Shaft: Φ5mm
Length of Extend Shaft: 18mm
Connector: 4mm gold

ESC Features:
- Specially designed for RC car with excellent start-up, acceleration, and linearity features
- Compatible with sensorless brushless motor
- The strong resistant current capability, excellent heat dissipation
- Multiple protection features: low voltage cut-off protection for lithium or nickel battery / over-heat protection / throtttle signal loss protection / motor blocked protection
- Easily programmed and compatible with pocket-sized program card

ESC Specifications:

Model 120A
Cont./Burst Current 120A / 600A
Suitable Car 1/8 RC Car
Suitable Brushless Motor ≥ 3.5T
Resistance 0.00035ohm
Battery 2~6 Cells Lipo
4~18 Cells NiMH
BEC Output 6.1V/3A
(Switch Mode)
Dimension 41*51*36mm
Connector Deans, T.
If you need a different connector for your battery just let me know, and for an extra 5€ I can make it (XT6, EC5, Tamiya)
