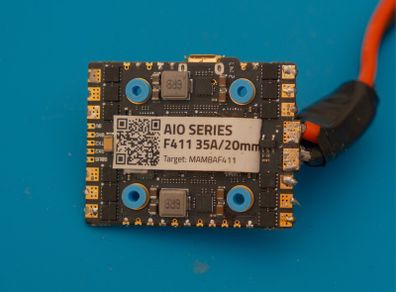

FPV Mamba Flight controller AIO F411 35A 20mm

It's pretty much brand new as my previous one got damaged on wet grass and had to buy new one. Can give away old one as well if someone has proper tools (workbench with microscope) probably it's fixable.


Small but powerful AIO FC and ESC board for light and small FPV copters. The board includes a 9V BEC to power a DJI Air unit or Caddx Vista unit.

FC specifications:

MAMBA AIO F411 35A /20mm
MCU: 100 MHz STM32F411CEU6
GYRO: MPU6000
Barometer: No
OSD: Yes
Blackbox: No
Uarts: 2 sets
ESC soft: Dshot300/600
LED power: Yes
LED control: BF LED
F. Connector: No
RSSI: Yes
Buzz: Yes
Input: 3~6S Lipo (12.6~25.2V)
BEC: 3.3V 0.5A & 5V 2A & 9V 2A
Dimensions: 42×33×6 mm
Mounting Dimensions: 20×20,M2
ESC Specifications:

MAMBA AIO F411 35A /20mm
Input: 3~6S Lipo (12.6~25.2V)
Constant current load: 35A×4
Peak current output: 40A (10S)
Target: BLHeli_S GH30
Motor protocol: Dshot300/600
