Description

This will run DD-WRT.

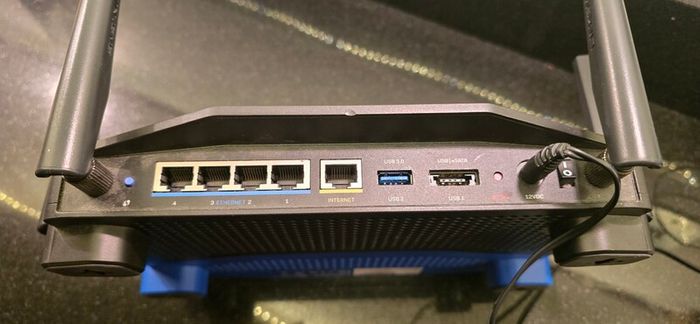

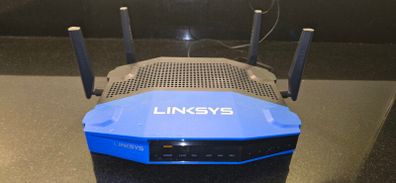

Years in the making, the WRT1900AC is the best router in its class. At speeds of 1.9 Gbps, it delivers unmatched performance for the most demanding networks. Equipped with the industry's first four-antenna configuration and professional-grade 1.3 GHz dual-core CPU, the WRT1900AC provides exceptional signal strength and range. The WRT1900AC's four Gigabit Ethernet ports are perfect for transferring large media libraries at speeds 10 times faster than Fast Ethernet. To stream or send large files across your network at high speed, simply connect a flash drive to the USB 3.0 port or an external SATA storage device to the unique eSATA port. For printing or working with smaller files, the eSATA port also serves as a USB 2.0 port. The WRT1900AC features four external adjustable high-performance antennas that provide strong, reliable coverage throughout your home. This unique antenna diversity technology helps your laptop, tablet, smartphone, and other connected devices achieve optimal performance, wherever they are in the home. The antennas also enhance coverage for both 2.4 GHz and 5 GHz bands, keeping everyone simultaneously gaming, downloading, and streaming without lag.

Less

Max Transfer Rate

1.3 Gbps

Wireless Speed Rating

AC1900

Wireless Standard

802.11ac

Wireless Band Count

Dual-Band

Max Range Indoors

140 feet

Max Range Open Space

Almost 300 feet (on the 2.4GHz band)

Wireless Highlights

Wi-Fi Protected Setup (WPS)

Connectivity Ports

USB 3.0 port

Connectivity Technology

Wi-Fi

Connectivity Type

Wi-Fi, Ethernet

USB Ports

USB 3.0

Authentication Method

WPA2‑Personal, WPA2‑Enterprise

Encryption Type

WPA2

Encryption Algorithm

AES

Device Type

Router

Data Transfer Rate

1.3 Gbps

Networking Type

Wi-Fi, Ethernet

Data Link Protocol

Ethernet, Wi-Fi

DHCP Support

Yes

Manageable

Yes

Network Protocol

PPTP, FTP

Network Monitoring

Yes (Monitor network activity and speed via Linksys Smart Wi-Fi)

Top Use Cases

Home networking

Typical Users

Advanced users, Home users

Enclosure Type

Wall-mountable

Design Highlights

eSATA LED, 2.4GHz LED, 5GHz LED, Internet LED, LAN 1–4 (10/100 Mbps or 1 Gbps) LED

Depth

5.18 cm (Product Depth)

Weight

722.2 g

Width

9.7 in

Included Accessories

Manual, AC adapter

Included Cables

Network cable

Included Software

Linksys Smart Wi-Fi software

Antennas

4 high-performance antennas

Built-in Devices

DLNA media server

Installed Flash Memory

128MB Flash

Installed RAM

512 MB

Power Device Type

Power Adapter

Mounting Kit

Yes (template for drilling holes)

Selectable Channels Qty

3 (on 2.4GHz band)

Processor

1.6 GHz dual-core CPU

Status Indicators

LED

Max Operating Temp

40 °C

Min Operating Temp

0 °C

Highlights

Beamforming technology, Wi-Fi Protected Setup (WPS)

Protocol Specifications

802.11ac

Digital Signaling Protocol

DDNS

Technology Highlights

Beamforming technology

Localization

Europe, Canada
