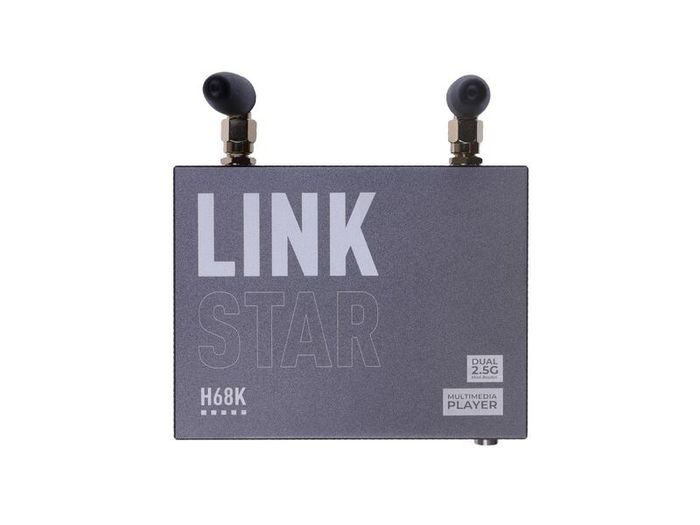

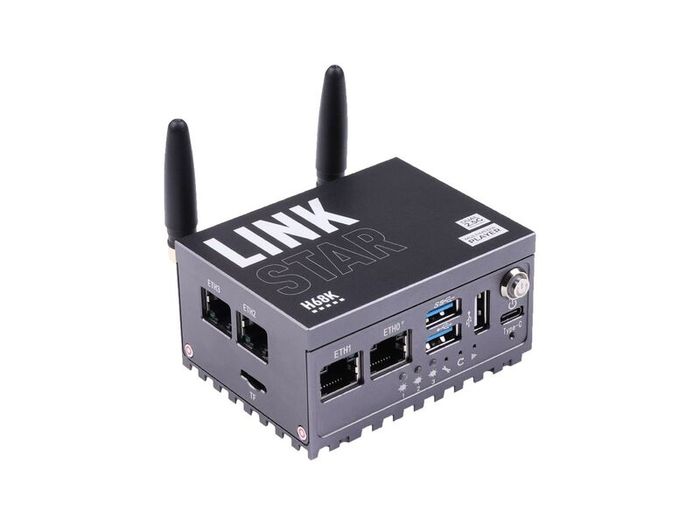

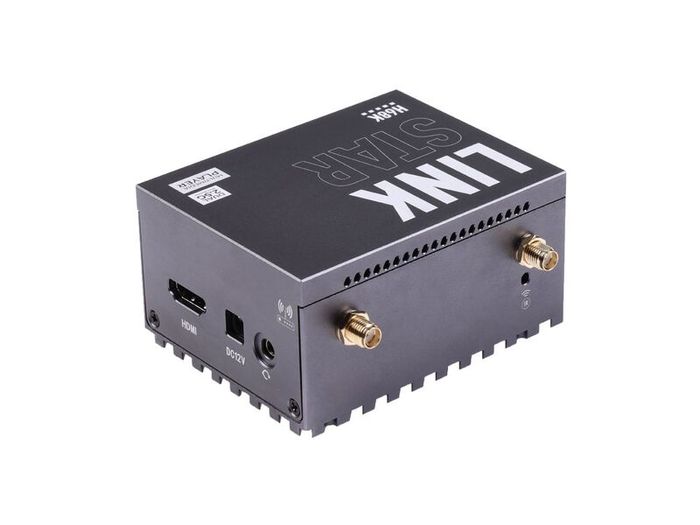

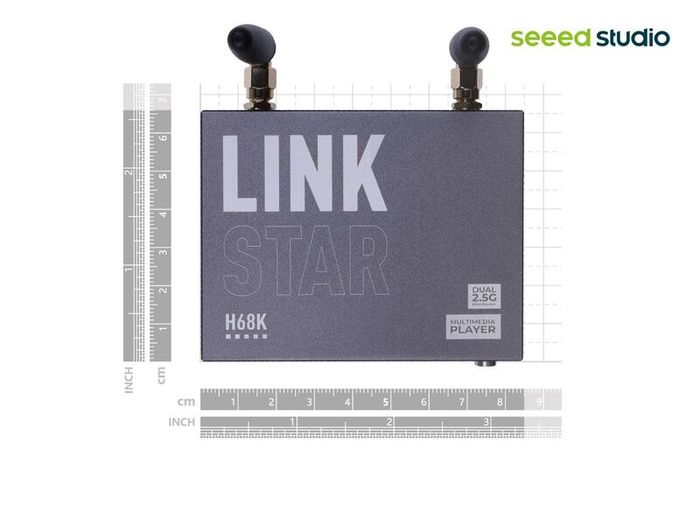

Seed Studio LinkStar-H68K-1432 Router with Wi-Fi 6, 4GB RAM & 32GB eMMC, dual-2.5G & dual-1G Ethernet, 4K output, Can run Android 11, Lubuntu 20.04 & OpenWRT support, Home Assistant

Hi there,

Selling a fab little LinkStar H68K router from Seed Studio. It can run Android, Lubuntu, OpenWRT, etc. Really great for those who like to tinker or home lab, etc. and not for novice users. These cost 130 plus shipping and duties/import, so grab a deal.

Buy with confidence from an Adverts user with 1.4k+ all positive feedback. Ok to post at buyer's expense once payment clears. Thanks!

More info:
https://www.seeedstudio.com/LinkStar-H68K-1432-p-5501.html
https://wiki.seeedstudio.com/Linkstar_Datasheet/

LinkStar-H68K router equips quad-core Cortex-A55 RK3568 chip, featuring 4 Ethernet interfaces for dual-2.5G and dual-1G, along with Wi-Fi 6 technology, while providing high storage capacity and media player functionality, functioning well both indoors and outdoors, whether for traveling and stationary.


LinkStar-H68K router equips quad-core Cortex-A55 RK3568 chip, featuring 4 Ethernet interfaces for dual-2.5G and dual-1G, along with Wi-Fi 6 technology, while providing high storage capacity and media player functionality, functioning recommended for indoor use.





Feature

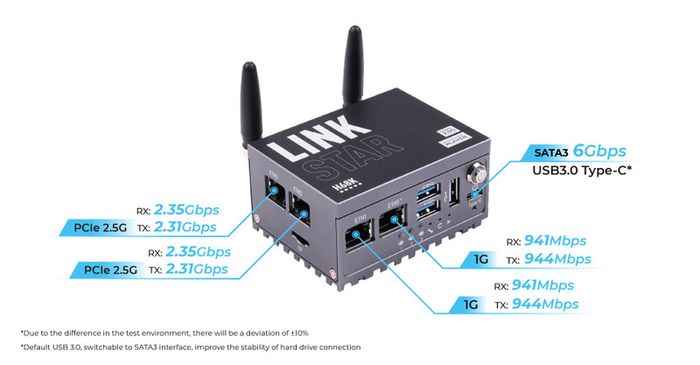

Lightning-fast Network Ports: Dual 2.5Gbps Ethernet & dual 1Gbps Ethernet, 4 interfaces overall for fast speed router deployment
Outstanding Wi-Fi 6 Technology: Up to 1200Mbps, support 2.4G/5G dual-band for high throughput performance
4K Multimedia Player: Pre-installed Android 11 OS, mounted with one HDMI 2.0 port for 4K@60fps display with HDR support
High Storage Capacity: Equip onboard 32Gb eMMC, an SD card slot, and a USB 3.0 Type-C for massive storage, along with one USB 3.0 and two USB 2.0 Type-A ports
Multiple Operating Systems Supported: Android, Lubuntu 20.04, OpenWRT,Armbian

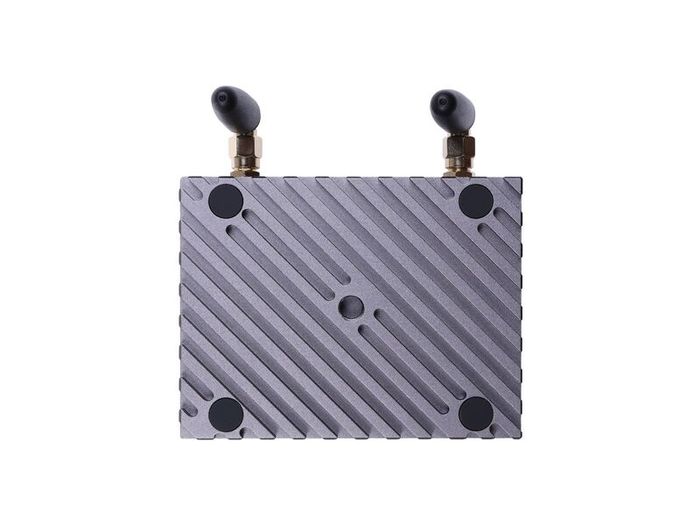

Pocket-sized Metal Box: Carry everywhere, built around with metal for passive heat dissipation
Description
LinkStar-H68K equips quad-core Cortex-A55 RK3568 chip, featuring dual-1G Ethernet and dual-2.5G Ethernet as 4 network interfaces overall, assembled in one portable metal box, carrying dual-band Wi-Fi 6, designed for high-speed network. It comes with sufficient expansion ability and media player functionality, presenting you with a fully functional device for office work and home entertainment, as well as anywhere you travel around.



High Storage Capacity
This compact equipment equips onboard 32GB eMMC, along with one SD card slot and one USB3.0 Type-C which supports an external hard drive for storage extension. Combined with fast-speed Ethernet, you can use it to establish a NAS(Network Attached Storage) to store and access abundant information over a network without physical file transformation.

Outstanding Wi-Fi 6 Technology
With wireless capability, it can perform as a repeater and connect different Wi-Fi at different places like hotels and cafes, then convert them to a network you set up, to link all your devices, which is beneficial for your travel or business trip.

4K Multimedia Player
With such storage and network capability, it houses an HDMI 2.0 port and a 3.5mm microphone port, installing Android 11 OS in advance, outputting 4K immersive visuals, all of which make it a neat network media player to stream media and display instantly, while providing access to online services like Spotify or YouTube.

Great Extensibility
Additionally, it provides an SD card slot, one USB 3.0, and two USB 2.0 ports for further usage. You can connect a USB printer with it for print serving in the office which can be available to the entire network. Meanwhile, you can switch to a different Operating System by inserting different SD cards without overwriting the original one.

Multiple OS support
Not only Linux systems like Lubuntu 20.04, but you can also run it with a dedicated routing system like OpenWRT for building a fast speed and secure router in concentration. You can utilize it to establish a VPN router of your own, realize remote control, avoid advertising, and other personal customization by your definition.

The design of LinkStar-H68K is light and mini-sized that it can be lifted by one singular hand. It is built around metal for passive heat dissipation. You can charge it with a 5-24V power adaptor and 5V Type-C connector.

Note

The current Android and Lubuntu 20.04 firmware does not support the MT7921 WIFI module.
This product does not come with a power supply, please get it with an International Wall Adapter Power Supply 12VDC 1.2A if needed.


Application
VPN router
NAS
Remote control/work
Game Server
Block advertising
Print server
Firewall
Tethering

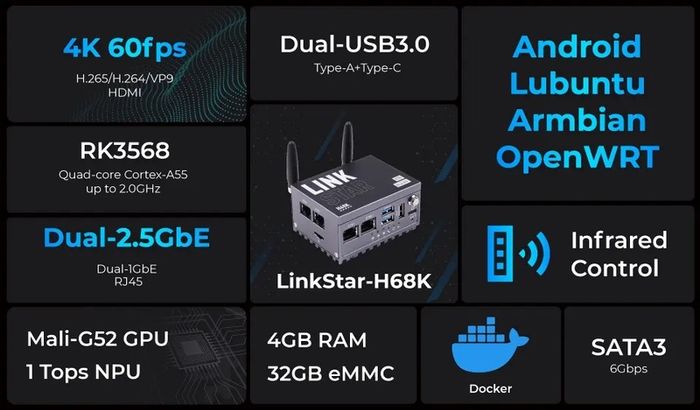

Specification


Parameters



Details



Processor



Rockchip RK3568 for up to 2.0GHz



CPU



Quad-core 64-bit Cortex-A55



GPU



ARM G52 2EE



NPU



1 TOPS@INT8



Multi-Media



4K@60fps H.265/H.264/VP9 video decoder

1080@60fps H.265/H.264 video encoder



Support 8M ISP, HDR



Storage



onboard 32GB eMMC



1x SD card slot for storage expansion



Operating System



Pre-installed Android 11 OS



Support Lubuntu 20.04, Armbian, Android, Openwrt, Buildroot



Wireless



Dual-band 2.4G/5G Wi-Fi 6



M7921E module



NIC



2x 1G Ethernet NIC RTL8211F



2x 2.5G Ethernet NIC RTL8125B



Video Output



1x HDMI2.0 interface for 4K output



Audio



1x 3.5mm four-piece headphones for both input and output



USB



1x USB 3.0 Type-A



1x USB 3.0 Type-C, capable of storage expansion and 5V power supply



2x USB 2.0 Type-A



Power Supply



operating voltage: 5V~24V DC(12V-1A DC recommended)



recommend: 12V-1A DC



recommend(with additional hardware driver): 12-2A DC



recommend(with Type-C connector): under 5V



Power Consumption



7.5W（With a fully loaded network port）



Operating temperature



-10 ~ 55°C



Dimensions



80*60*40mm

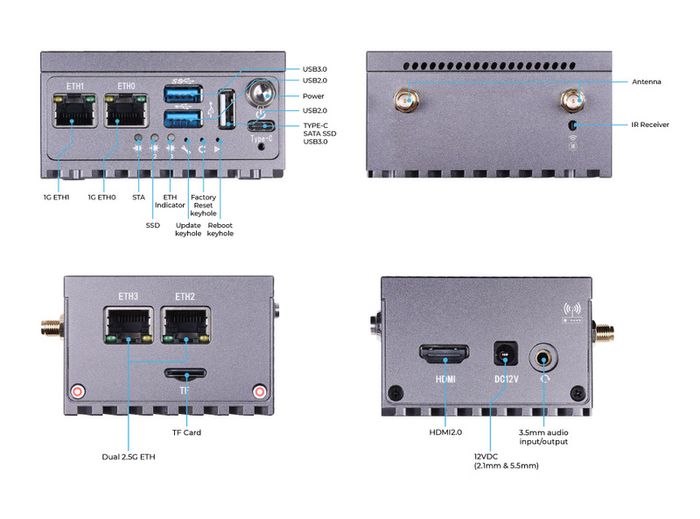

Hardware Overview


Part List
LinkStar-H68K-1432

X1

Anntenna

X2
