Description

WIRELESS

Working Modes Range Extender/Access Point
HARDWARE FEATURES

Interface 1 x 10/100Mbps Ethernet Port (RJ45)
Button WPS Button, Reset Button
Input Power 100-240V~50/60Hz
Max. Power Consumption 9.5W（max power consumption）
Dimensions ( W x D x H ) 3.5×1.4×4.9 in. (89×35.0×124.1 mm)
Antenna 2 External Antennas
WIRELESS FEATURES

Wireless Standards IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz
Frequency 2.4GHz & 5GHz(11ac)
Signal Rate 5 GHz:Up to 867 Mbps
2.4 GHz:Up to 300 Mpbs
Working Modes Range Extender/Access Point
Reception Sensitivity 5 GHz:
11a 6Mbps: -94dBm, 11a 54Mbps: -77dBm
11ac HT20 MCS0: -94dBm, 11ac HT20 MCS8: -71dBm
11ac HT40 MCS0: -92dBm, 11ac HT40 MCS9: -66dBm
11ac HT80 MCS0: -87dBm, 11ac HT80 MCS9: -62dBm

2.4 GHz:
11g 54Mbps: -78dBm, 11n HT20 MCS7: -76dBm
11n HT40 MCS7: -74dBm
Wireless Modes Range Extender/Access Point
Wireless Functions Enable/Disable Wireless Radio, Wireless Statistics
Wireless Security 64/128-bit WEP, WPA/WPA2-PSK/WPA2-PSK2 encryptions
Transmission Power 2.4 GHz ≤20dBm, 5 GHz ≤30dBm
OTHER

Network Services Enabled by Default Web Server
Manage and configure device through web (HTTP/HTTPS)
• Port: 80/443 Protocol: TCP
DHCP Server
IP address assignment (DHCP)
• Port: 67 Protocol: UDP
App management
Manage and configure device through app
• Port: 20001 Protocol: TCP
• Port: 20002 Protocol: UDP
OTHERS

Certification CE, RoHS

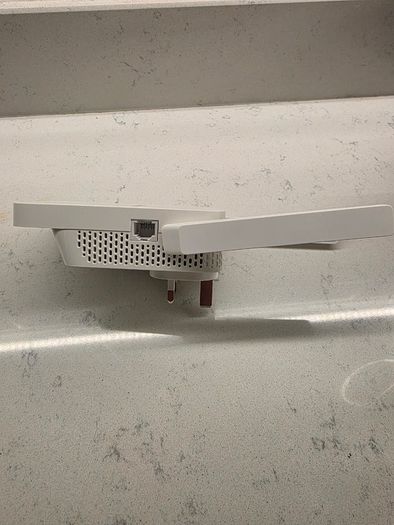

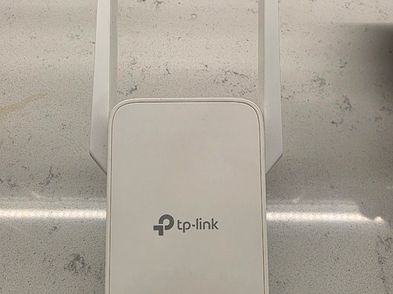

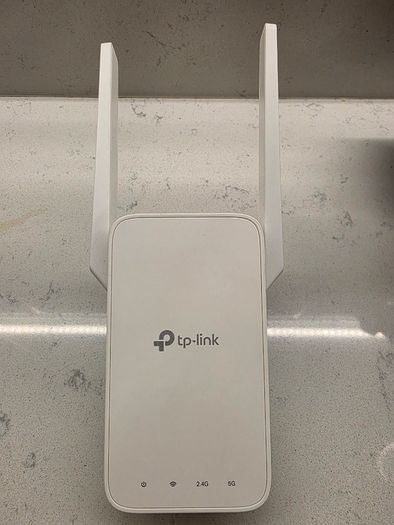

Package Content Wi-Fi Range Extender RE315
Quick Installation Guide
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
