Description

Condition: New

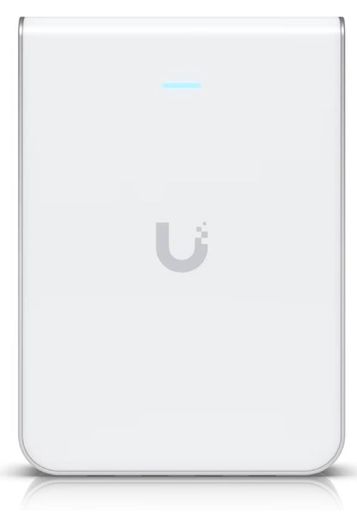

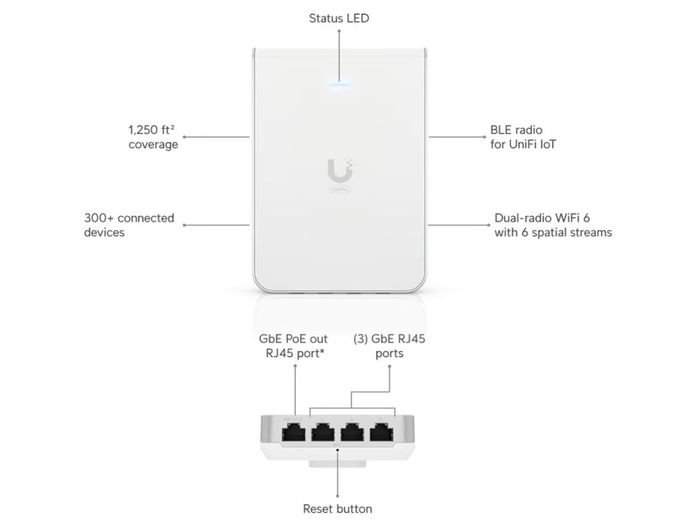

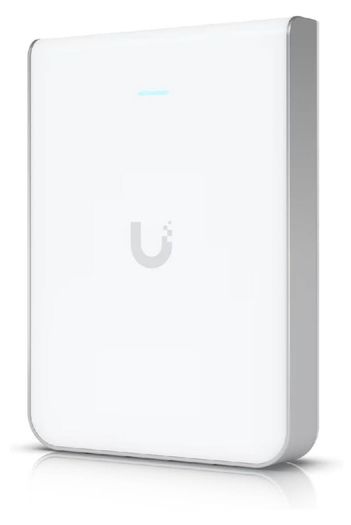

Ubiquiti Unifi 6 In-Wall Wifi 6 Access Point - U6-IW

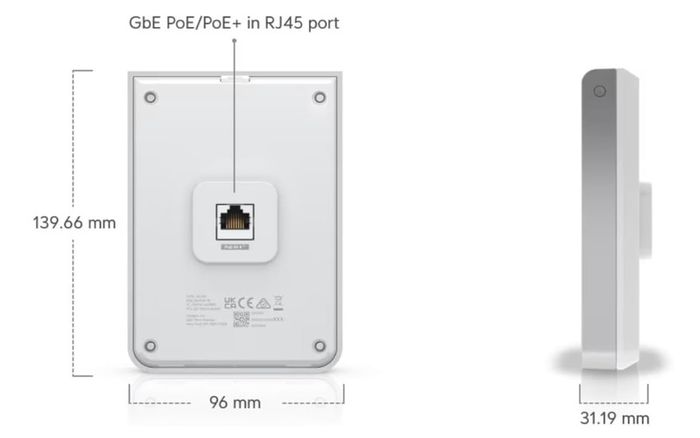

Dimensions
139.7 x 96 x 31.2 mm
(5.5 x 3.8 x 1.3")
WiFi Standard
WiFi 6
Spatial Streams
6
Coverage Area
115 m² (1,250 ft²)
Max. Client Count
250+
Uplink
GbE

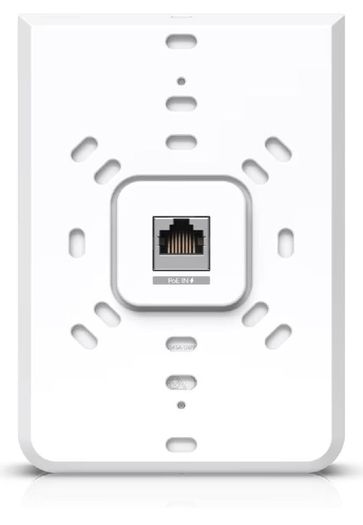

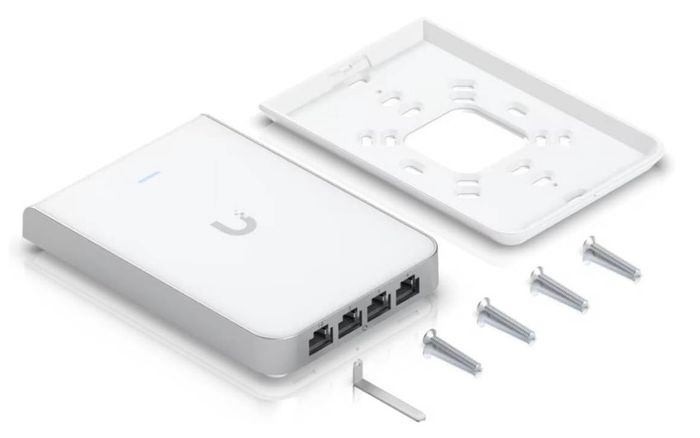

Mounting
Wall
(Mount Included)
Power Method
PoE
PoE+ (Required for PoE output)

Performance
MIMO
5 GHz
4 x 4 (DL/UL MU-MIMO)
2.4 GHz
2 x 2 (DL/UL MU-MIMO)
Max. Data Rate
5 GHz
4.8 Gbps (BW160)
2.4 GHz
573.5 Mbps (BW40)
Antenna Gain
5 GHz
5.9 dBi
2.4 GHz
5 dBi
Max. TX Power
5 GHz
26 dBm
2.4 GHz
22 dBm
Max. BSSIDs
8 per Radio
Supported Data Rates
802.11ax (WiFi 6)
7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
802.11ac (WiFi 5)
6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11n
6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)

Features
Wireless Meshing
✓
Band Steering
✓
802.11v BSS Transition Management
✓
802.11r Fast Roaming
✓
802.11k Radio Resource Management (RRM)
✓
Advanced Radio Management
✓
Passpoint (Hotspot 2.0)
✓
Captive Hotspot Portal
Custom Branding Landing Page
✓
Voucher Authentication
✓
Payment-Based Authentication
✓
External Portal Server Support
✓
Password Authentication
✓
Guest Network Isolation
✓
Private Pre-Shared Key (PPSK)
✓
WiFi Speed Limiting
✓
Client Device Isolation
✓
WiFi Schedules
✓
RADIUS over TLS (RadSec)
✓
Dynamic RADIUS-assigned VLAN
✓

Hardware
Max. Power Consumption
13W (Excluding PoE output)

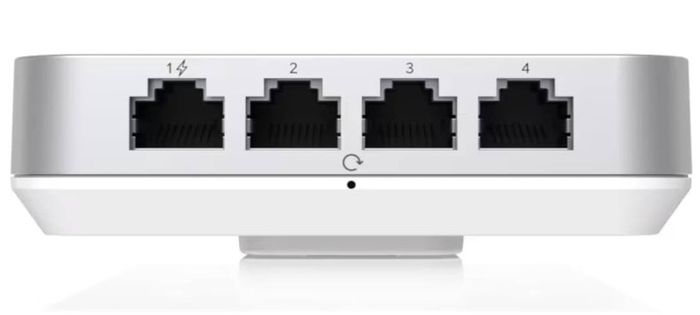

Networking Interface
(1) Data-in: GbE RJ45 port
(4) Data-out: GbE RJ45 ports
Weight
460 g (1 lb)
Management
Ethernet
Bluetooth
Built-In Switch
(4) GbE ports with (1) PoE output
Enclosure Material
Plastic, aluminum
Mount Material
Aluminum
LEDs
System
White/Blue
Channel Bandwidth
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160 (MHz)
NDAA Compliant
✓
Certifications
CE, FCC, IC, SRRC, Anatel: 11546-22-08356
Operating Frequency
US/CA:
2400 - 2472 MHz
U-NII-1: 5150 - 5250 MHz
U-NII-2A: 5250 - 5350 MHz
U-NII-2C: 5470 - 5725 MHz
U-NII-3: 5725 - 5850 MHz

Worldwide:
2400 - 2483.5 MHz
5150 - 5850 MHz
Ambient Operating Temperature
-30 to 60° C (-22 to 140° F)
Ambient Operating Humidity
5 to 95% noncondensing

Software
Application Requirements
UniFi Network
Version 6.0.45 and later
