Description

Condition: New

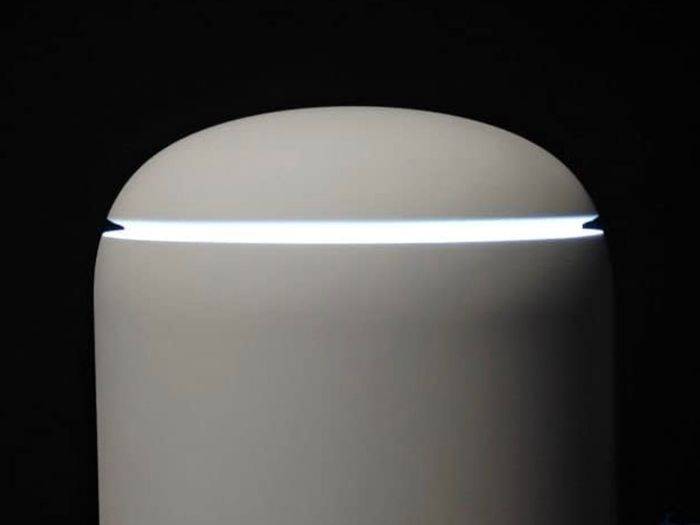

Ubiquiti UniFi Dream Machine All-in-One Router:

=> Dimensions
Ø110 x 184.13 mm (Ø4.33 x 7.25 in.)

=> Weight
1.15 kg (2.54 lb.)

=> Enclosure material
Polycarbonate

=> Hardware
Processor specs
Dual-Core Cortex A53 at 1.35 GHz

=> System memory
2 GB

=> Expansion slot
Micro SD memory card (optional)
Note: Requires a memory card with at least 128 GB of storage.

=> Management interface
Ethernet
Bluetooth

=> Networking interfaces
1 x WAN: 1 GbE RJ45 port
4 x LAN: 1 GbE RJ45 ports

=> PoE interfaces
2 x PoE IEEE 802.3af

=> LCM display
Start-up animation: start-up in progress

=> Firmware update icon: firmware updating

=> Button
Factory-reset

=> LED
White/blue

=> Power method
Universal AC input, 100-240VAC, 1.1A Max, 50/60 Hz

=> Power supply
AC/DC, Internal, 50W

=> Supported voltage range
100 to 240VDC

=> Max. power consumption (excluding PoE output)
19.37W

=> PoE budget
32W

=> Max. PoE wattage per port by PSE
15.4W

=> Voltage range 802.3af mode
44 to 57 VDC

=> Max. TX power
2.4 GHz
26 dBm
5 GHz
26 dBm

=> MIMO
2.4 GHz
4 x 4
5 GHz
4 x 4

=> Throughput speed
2.4 GHz
600 Mbps
5 GHz
2.4 Gbps

=> Antenna
1 x Internal, dual-band, quad-polarity antenna

=> Antenna gain
2.4 GHz
3.4 dBi
5 GHz
4.3 dBi

=> Operating temperature
-10°C to 45°C (14°F to 113°F)

=> Operating humidity
5% - 95% noncondensing

=> Certifications
CE, FCC, IC

=> Software
=> Recommended Camera Capacity
HD: 5
2K: 2
4K: 1

=> WiFi standards
802.11a/b/g
WiFi 4/WiFi 5/WiFi 6

=> Wireless security
WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID
8 per radio

=> VLAN
802.1Q

=> Advanced QoS
Per-user rate limiting

=> Guest traffic isolation

=> Supported Concurrent clients
300+

=> Supported Data Rates
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps

=> 802.11b
1, 2, 5.5, 11 Mbps

=> 802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps

=> 802.11n (WiFi 4)
6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)

=> 802.11ac (WiFi 5)
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)

=> 802.11ax (WiFi 6)
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
