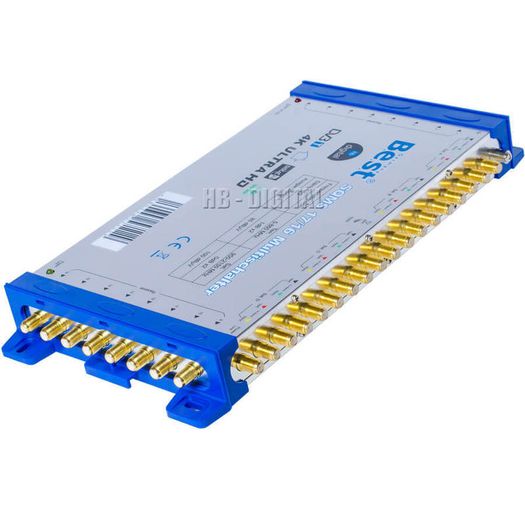

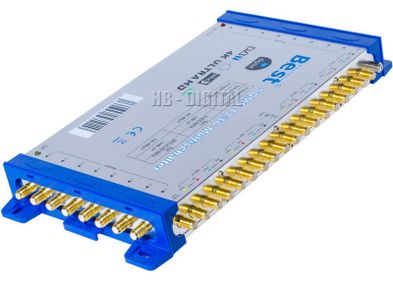

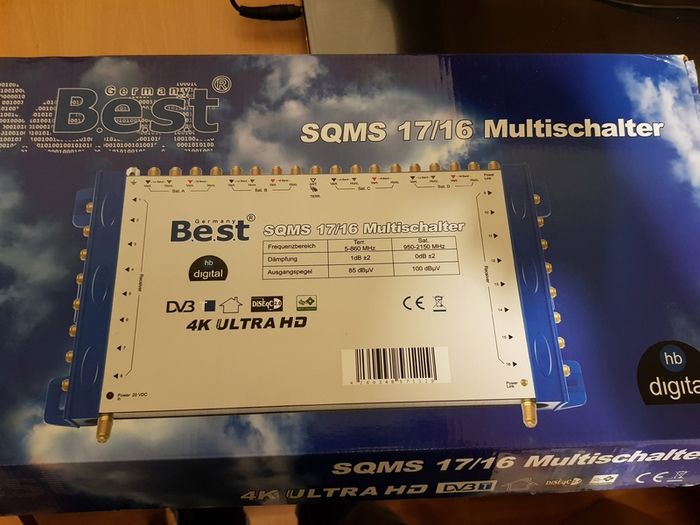

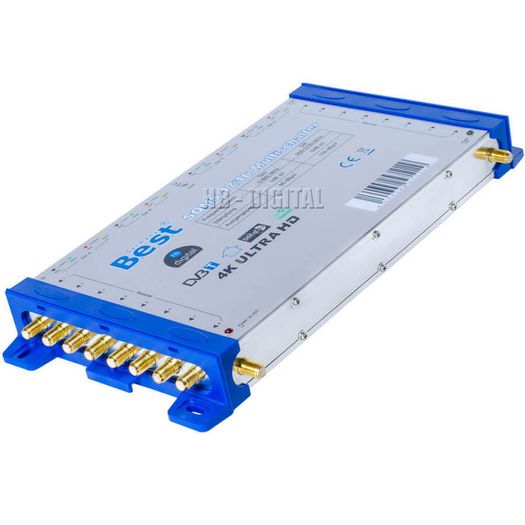

Best Germany Multiswitch SQMS 17/16 HDTV - FULL HD - 4K (ULTRA HD) - 3D - SKY - compatible For up to 16 participants Receiver / 4 satellites Energy-saving power supply

State-of-the-art components from mobile technology and an external AC / DC converter ensure reliable and energy-saving operation.

This reduces the operating temperature of the multi-switch, increases its reliability and lowers the operating costs.

Reception of up to 4 satellites
Designed for 4 x UNIVERSAL QUATTRO LNBFs
Switching with DiSEqC
Suitable for DVB-S1 and DVB-S2 (HD-TV)

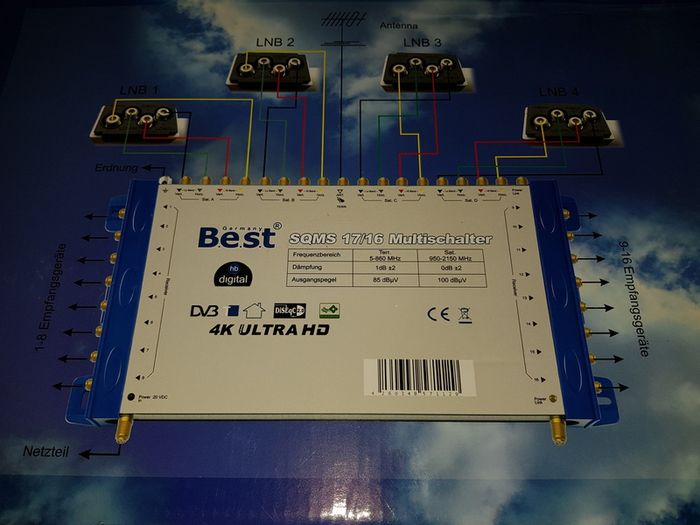

The Best Germany 17/16 SQMS MULTISWITCH is used to supply 16 subscribers with SAT IF and terrestrial signal. For example, four full bands of the satellites can be fed in. Energy-saving compact multi-switch for the distribution of, for example:

QUATTRO-LNB NO. 1: Astra (low and high band)
QUATTRO-LNB NO. 2: Eutelsat HOTBIRD 13 degrees (low and high band)
QUATTRO-LNB NO. 3: Türksat (Low and High Band)
QUATTRO-LNB NO. 4: Eutelsat HOTBIRD 16 degrees (low and high band)
 be connected.

Inputs / outputs Multiswitches:

16 x SAT entrance for 4 satellites (eg Astra 19 ° or Hotbird 13 ° Sirius 5 ° Amos 4 °)
1 x terrestrial entrance
16 x outputs for satellite receivers
power adapter
The novelty is the gold-plated F-connectors, so an even better signal transmission is safe!



Technical specifications:

The multiswitch SQMS 17/16 works exclusively with Quattro LNBs
Suitable for DIGITAL DVB-S / DVB-S2 / DVB-T / DVB-T2 / 4K (Ultra HD) / 3D
Gold plated F connectors
LNB inputs: 950 .... 2150 MHz.
Terr. Input: 5-860 MHz.
Outputs: 47-2150 MHz.
Damping Terr 1dB +/- 2
Damping SAT 0dB +/- 2
Decoupling SAT 30dB
Output level Terr .: max. 85dbμV
Output level SAT: max 100dbμV
Max. Power consumption: 45 W.
Output voltage: 20V DC
Max. Current output: 2A
Errors and technical changes reserved


Dimension multiswitch:

approx. 369x210x40 mm (width x depth x height)
Holes for wall fitting available


Included:

1x multiswitch 17/16
1x power supply

Brand new and unused item.
