Digital satellite meter Revez HDS2-USB

Condition: New

Revez HDS2-USB Satellite Meter

Revez HDS2-USB Satellite Meter suitable for measuring DVB-S and DVB-S2 satellite signals.

Model with USB port and the possibility to upgrade data through the USB.

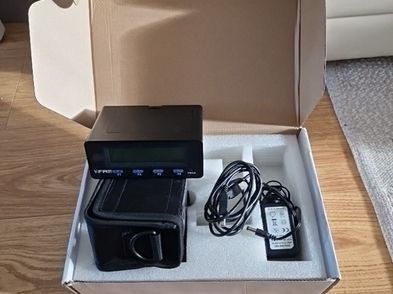

Includes in box:

Revez HDS2-USB DVB-S2 Satellite Meter

Waterproof Nylon Case and Carry Strap

English User Manual

Wall Charger

Features:

    Meter Supports DVB-S, DVB-S2

    Multi standard demodulation & decoding

    Uses LCM to display the satellite signal strength and quality

    Set up LO. of the LNB and the parameters of satellite TV, finds satellite signal accurately

    Built-in LCM backlight and controllable signal noise buzzer

    Can be used with either built in battery or external power supply

    Supports data update through USB port

Specification:

Frequency Range: 950-2150MHz

Operating Temperature: 0℃ ~ + 40℃

Input Level Range: -65dBm~-25dBm

Input connector: F type

Symbol rate: 1 to 45Msps

Impedance: 75Ω

DiSEqC 1.0: Supported

DC power supply: DC 14V

Collection in Swords
Cash only
