Description

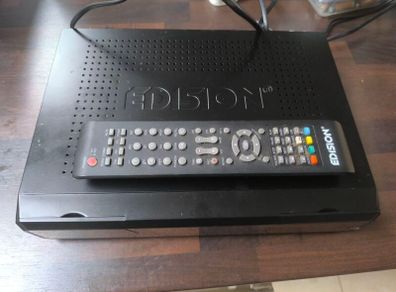

The Edision Argus Mini 2in1 IP is a high-definition combo satellite and terrestrial receiver that allows for viewing both satellite (DVB-S/S2) and digital terrestrial (DTT/DVB-T) services. It is a PVR-ready unit with Ethernet capability.

Key Features

Combo Tuner: Features both a Satellite feed input (LNB In) and a Digital Terrestrial UHF aerial input.

PVR Ready: Users can pause, rewind, and record live TV onto an external USB hard drive.

IP/Internet Capability: Equipped with an Ethernet port for internet connectivity.

High Definition: Supports high-definition transmissions via HDMI.

Card Slots: Includes two card slots for accessing encrypted channels.

Technical Specifications

Outputs: HDMI, two SCART sockets, and a Digital Audio output.

Inputs/Ports: Ethernet, USB 2.0, RS232, RF input for terrestrial aerial.

Display: VFD Display on the front panel, which can be configured for power-saving in standby.

Standby Consumption: Low-power standby option (0.8W).

Remote Control and Operation.

Info Button: Displays channel name, program info, and times; pressing again can show a brief description.

EPG Button: Accesses the 7-day electronic program guide.

Replacement Remotes: Known for having dedicated replacement remotes, such as those made by Classic.

RC1/RC2: Supports two different frequencies if multiple devices are used in the same room, switched via an RC1/RC2 button.

Installation

Connect the aerial lead to "Aerial in".

Screw the satellite cable into "LNB in".

Connect to the TV using HDMI or SCART.

Switch on the unit at the back
