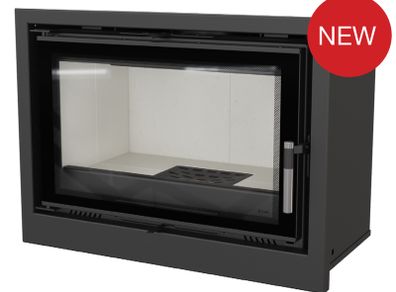

ARKE 80 12kw Large Cassette Insert Stove
- Laois Stone
- 223 more ads from this seller
- 1 year ago
- Ad Views:
Cassette ARKE 80
Power rating 12kw
Flue diameter 200mm
Efficiency ~ 75 %
Length of wood 350mm
CO 0,1 %
Temperature C° 320
Range of power rating 6 – 16 kW
width x height (850 x 615 mm)
Seasoned hardwood (humidity <20%) charcoal briquette, brown coal briquette
Advantages of the cartridge:
1. Body made of steel sheets with a thickness of 4 mm, designed to operate at elevated temperatures.
2. Steel parts laser cut and then bent on a CNC bending machines.
3. Body welded sheath noble gas, which provides good quality welds.
4. Cassette standard is equipped with a single outer glass decorative type of glass can withstand temperatures up to 800 of C. It is coated by screen printing, which gives the fireplace a modern and elegant look, optically expands the front of the cartridge.
5. The profiled baffle slows the release of exhaust gases from the chamber allowing the after burning. Its easy disassembly for easy maintenance of the flue clean.
6. Axial fans with adjustable power of work, allow for heating in a manner dependent on the needs – working at high speed under heating room in less time, or at a reduced speed, keeping the room warm, keeping silence. The turbine is powered from the mains with 230 V Power total fan is 280 m 3 / h at a relatively low power consumption of 38 W.
7.Fire-resistant power cables and electronic safety system.
8. Separately adjustable amount of primary and secondary air (air curtain, which reduces the amount of exhaust and helps keep the glass clean).
9. Two additional upper hot air outlet with a diameter of
125 mm for connection to the distribution
of air. This allows you to effectively use the heat from the burning
wood to heat adjacent rooms.
10. Combustion chamber lined Acumotte material – material that accumulates heat, which increases the temperature in the chamber combustion helps improve combustion parameters.
11. Removable grate and ash facilitate maintenance cartridge clean.
12. 5-year warranty.
ALSO AVAILABLE IN SMALLER OUTPUT ARKE 70, ARKE 75 AND IN BIGGER OUTPUT ARKE 95
We supply and fit a wide range of stoves such as cassette stoves, insert stoves, freestanding stoves, boiler stoves, flexible flue liners and new chimney installation.
Qualified HETAS REGISTERED installer.
We also supply and fit natural and artificial cladding stone for your chimney breasts, internal or external walls, gates, pillars etc. Please visit our website for more information and get some ideas from our web gallery. Links to website can be found at About Us and Laois Stone's Terms of Sale pages (link at the bottom of this listing).
