Description

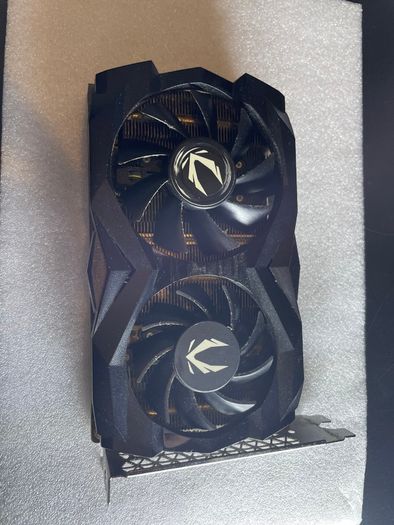

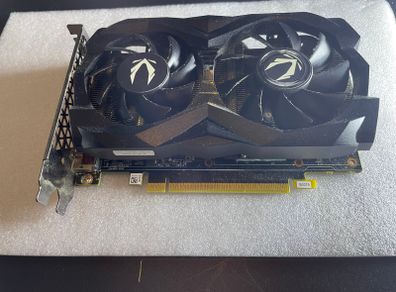

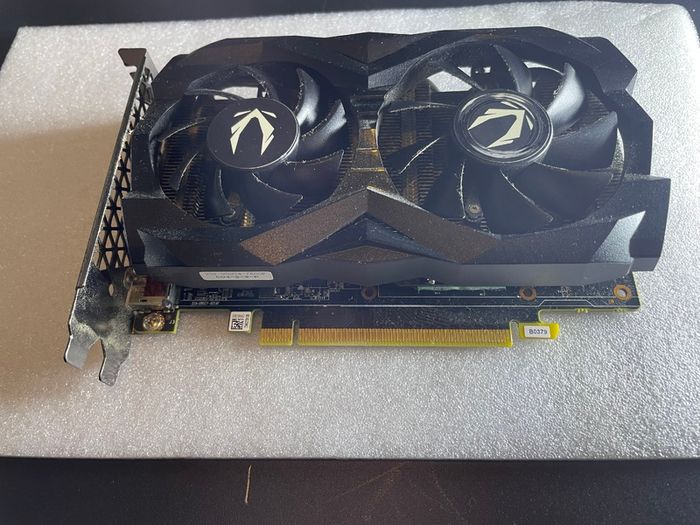

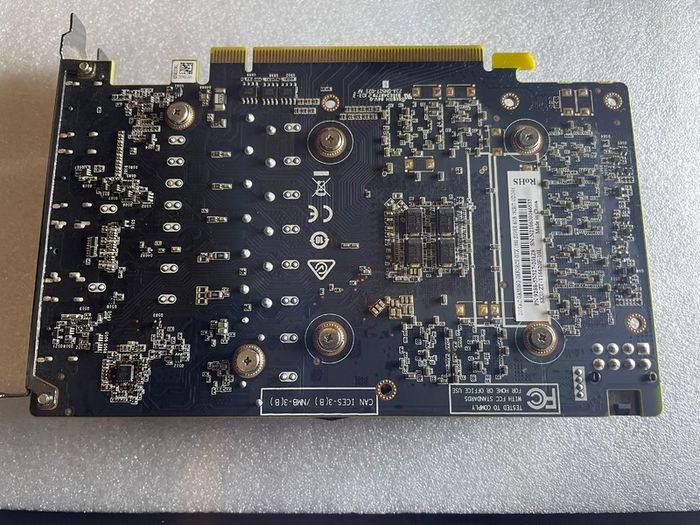

ZOTAC 1660 Super Twin Fan

Technical specifications:

- NVIDIA GeForce GTX 1660 SUPER
- 6 GB GDDR6, 192bit, 14Gbps, 1750MHz, 336GB/s
- Clock base 1530MHz
- Clock Boost 1785MHz (OC)
- cooling: 2x axial fans (80mm + 70mm)
- TDP/TGP: 125W (NVIDIA), max. 125W (Zotac)
- Power connections: 1x 8-Pin

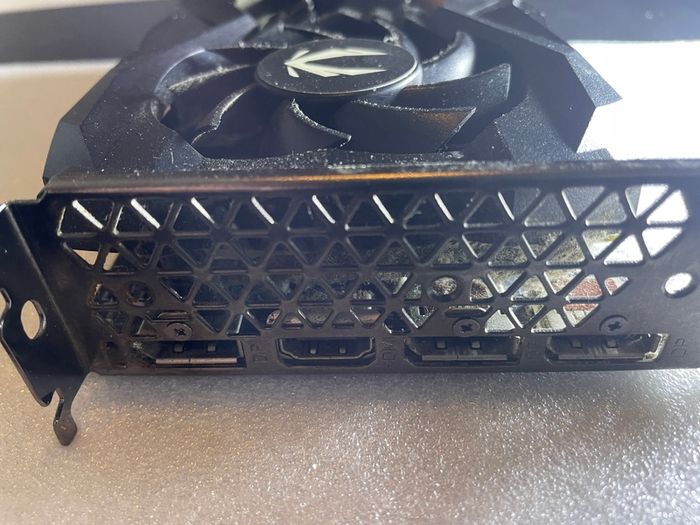

- Connections: 1x HDMI 2.0b, 3x DisplayPort 1.4a
Connection
- PCIe 3.0 x16

*Special features
- Mini ITX format (≤185mm) Total height
- Dual Slot
- Dimensions: 173x111x35mm (LxWxH)
- GPU computing power: 10.14 TFLOPS (FP16), 5.07 TFLOPS (FP32), 0.16 TFLOPS (FP64)
- Chip designation: TU116 (TU116-300-A1)
- Chip expansion 91.7% active computing units (22/24 SM)
- Chip configuration: 22SM (1408SP/ 88TMU/ 48ROP), 1536KiB L2 cache
- Chip manufacturing: TSMC 12FFC [NVIDIA 12FFN] (12nm)
- Chip size: 284mm², monolithic, 6.6 billion Transistors
- Chip functions: HDCP 2.2
- API support: DirectX 12 (12_1) / CUDA 7.5 / Vulkan 1.3 / OpenCL 3.0 / OpenGL 4.6 / Shader Model 6.7
- Transcoding engine: 1x NVENC (7th gene, max. Sessions: 8), 1x NVDEC (4th Gen),
- Encoding: H.265 (4K YUV 4:2:0 / 4K YUV 4:4:4 / 4K Lossless / 8K / HEVC 10bit support / HEVC B Frame support), H.264 (YUV 4:2:0 / YUV 4:4:4 / Lossless)
- Decoding: H.265 (8bit 4:2:0 / 10bit 4:2:0 / 12bit 4:2:0 / 8bit 4:4:4 / 10bit 4:4:4 / 12bit 4:4:4), H.264 (8bit 4:2:0), VP9 (8bit / 10bit / 12bit), VP8, VC-1, MPEG-2, MPEG-1

In perfect working order. Sold as is. Some cleaning required.

Cash on collection in Blackrock, co. Dublin
