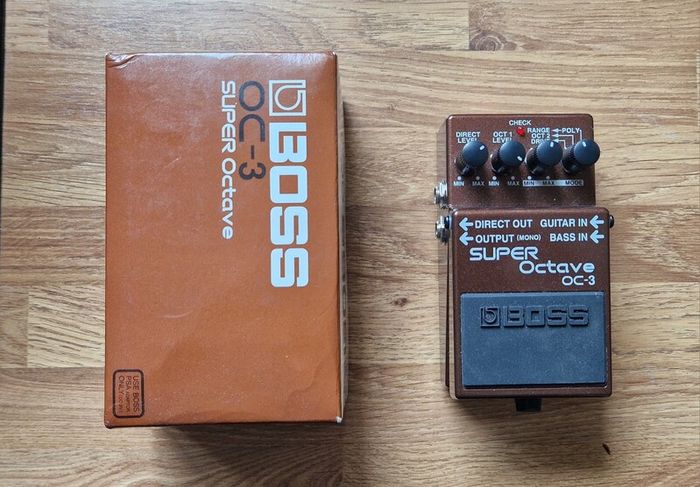

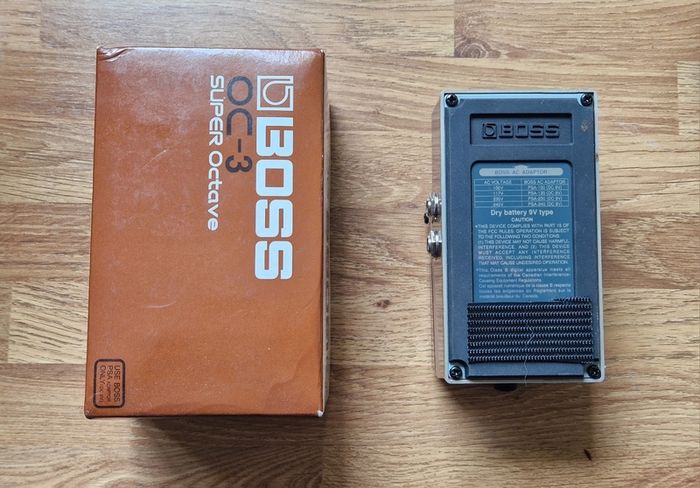

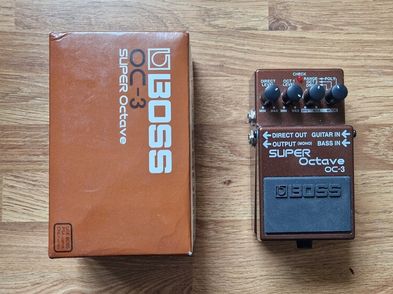

Boss OC-3 Super Octave

Brand New, Never Used

The Boss OC-3 Super Octave is a compact polyphonic octave pedal designed for guitar and bass. It introduces chord tracking, a built-in drive mode, and a dedicated bass input. It replaces the classic OC-2, offering three distinct modes: Polyphonic, Drive, and the traditional OC-2 mode. [1]

Technical Specifications:

Nominal Input Level: -20 dBu

Input Impedance: 1 M ohms

Nominal Output Level: -20 dBu

Output Impedance: 1 k ohms

Recommended Load Impedance: 10 k ohms or greater

Current Draw: 50 mA (at DC 9 V)

Power Supply: DC 9V battery or PSA-series AC adapter [1, 2, 3]

Controls & Connections:

Modes: Poly (chords with octave), Drive (adds distortion to octave), OC-2 (classic dual-octave tones), and a dedicated Bass input mode.

Knobs: Direct Level, OCT1 Level, Control, Mode.

Connectors: Guitar Input, Bass Input, Output (Mono), Direct Out, and DC 9V adapter jack. [1, 2]

Physical Dimensions:

Width: 73 mm (2-7/8 inches)

Depth: 129 mm (5-1/8 inches)

Height: 59 mm (2-3/8 inches)

Weight: 0.4 kg (1 lbs) [1, 2, 3]
