Description

Analogue Drive Circuitry
The Nova System has NDT - Nova Drive Technology - a drive and distortion circuit that brings a combination of world-class analogue distortion and overdrive with digital control. NDT is 100 percent analogue and physically separated from the digital effects, its control potentiometers are digital. So you can tweak, store and recall as many drive settings as you like. You can hook up an expression pedal (not included) and control the amount of distortion in real-time. A G-Switch makes a good addition. It features a wide gain range from light breakup to heavy distortion.

A Choice of Effects
Take advantage of TC branded quality effects; reverb, delay, compressor, EQ, pitch and modulation, All effects are neatly programmable and storable in 60 user presets. The Nova System includes 30 factory presets for you to discover what it's capable of. The Nova System's great versatility of effects and easy to get up and running. All you need is a guitar and an amp to start using it.

Features
NDT - Nova Drive Technology: All-analogue programmable overdrive and distortion circuit under preset and expression control
6 effect blocks taken from G-System: Compression, EQ + Noise Gate, Modulation, Pitch, Delay, Reverb
30 factory and 60 user presets
Two footswitch layouts: preset and pedal
Hi-Z and balanced input + balanced stereo outputs
Specifications
Analogue Inputs
Connectors, Balanced: 1/4'' Phone Jack
Impedance - Balanced/Unbalanced: Line: 21/13 kOhm
Line Input Level @ 0 dBFS: 24 dBu to 0 dBu
Line Sensitivity @ 12 dB headroom: 12 dBu to -12 dBu
Drive Input Level @ 0 dBFS: 18 dBu to -6 dBu
Drive Sensitivity @ 12 dB Headroom: 6 dBu to -18 dBu
THD: Less Than -100 dB (0.001 Percent) @ 1 kHz
Crosstalk: Less Than -85 dB, 20 Hz to 20 kHz
A to D Conversion: 24 Bit, 128 x Oversampling Bitstream
Analogue Outputs
D to A Conversion: 24 bit, 128 x Oversampling Bitstream
D to A Delay: 0.63 ms @ S.R.= 48 kHz
Connectors, Balanced: 1/4'' Phone Jack
Output Impedance: 40 Ohm
Max. Output Level (Balanced/Unbalanced): 20 dBu/14 dBu, R-load = 1200 Ohm
Output Range: 20 dBu / 14 dBu / 8 dBu / 2 dBu
Dynamic Range: 104 dB, 20 Hz to 20 kHz
THD: Less Than -98 dB (0.0013 Percent) @ 1 kHz
Frequency Response: +0/-0.3 dB, 20 Hz to 20 kHz
EMC
Complies with: EN 55103-1 and EN 55103-2 | FCC part 15, Class B, CISPR 22, Class B
Safety
Certified to: IEC 65, EN 60065, UL6500 and CSA E60065 | CSA FILE #LR108093
Environment
Operating Temperature: 32° F to 122° F (0° C to 50° C)
Storage Temperature: -22° F to 167° F (-30° C to 70° C)
Humidity: Max. 90 Percent Non-Condensing

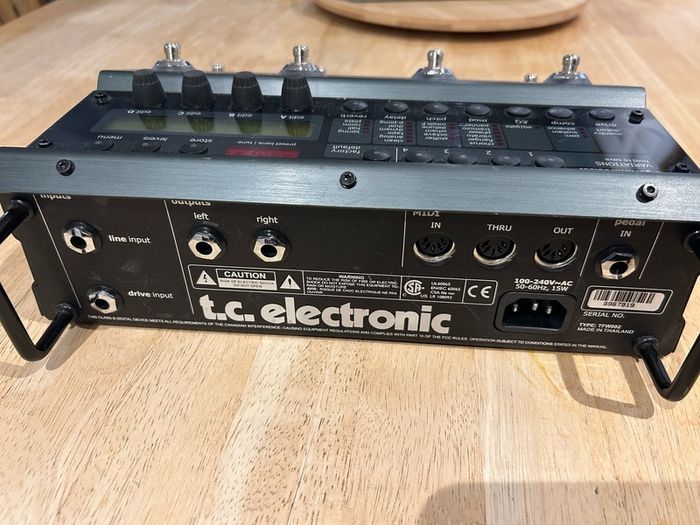

Control Interface
MIDI: In/Out/Thru: 5 Pin DIN
Pedal: 1/4" phone jack
Supplementary
Display: 24x 2 Character LCD
Dimensions: 11.2" x 3.5" x x 10.25" (284 x89 x 267 mm)
Weight: 4.1 lb. (1.85 kg)
Mains Voltage: 100 to 240 VAC, 50 to 60 Hz (Auto-Select)
Power Consumption: Less Than 15W
