Description

selling due to a stotage upgrade hdd western digital 3 tb sata3 64 mb of cache green model wd30ezrz.

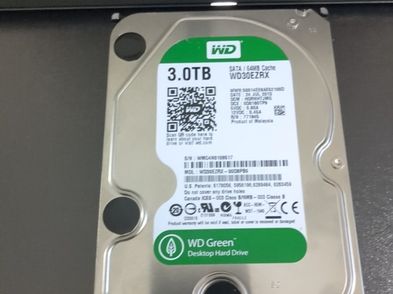

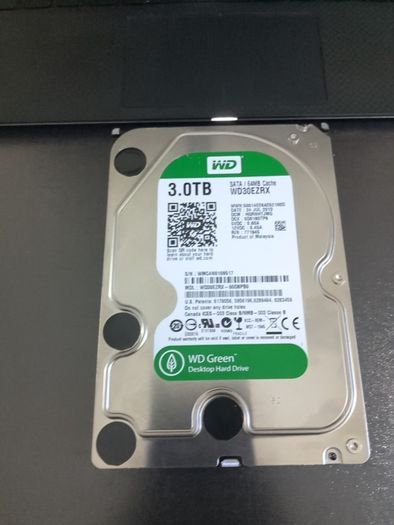

see picture for more details.

smartctl 7.4 2023-08-01 r5530 [x86_64-linux-6.17.0-7-generic] (local build)
Copyright (C) 2002-23, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Model Family: Western Digital Green
Device Model: WDC WD30EZRX-00D8PB0
Serial Number: WD-WMC4N0109517
LU WWN Device Id: 5 0014ee 6ae52100d
Firmware Version: 80.00A80
User Capacity: 3,000,592,982,016 bytes [3.00 TB]
Sector Sizes: 512 bytes logical, 4096 bytes physical
Device is: In smartctl database 7.3/5528
ATA Version is: ACS-2 (minor revision not indicated)
SATA Version is: SATA 3.0, 6.0 Gb/s (current: 1.5 Gb/s)
Local Time is: Sat Feb 28 12:57:42 2026 GMT
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status: (0x84) Offline data collection activity
was suspended by an interrupting command from host.
Auto Offline Data Collection: Enabled.
Self-test execution status: ( 0) The previous self-test routine completed
without error or no self-test has ever
been run.
Total time to complete Offline
data collection: (40020) seconds.
Offline data collection
capabilities: (0x7b) SMART execute Offline immediate.
Auto Offline data collection on/off support.
Suspend Offline collection upon new
command.
Offline surface scan supported.
Self-test supported.
Conveyance Self-test supported.
Selective Self-test supported.
SMART capabilities: (0x0003) Saves SMART data before entering
power-saving mode.
Supports SMART auto save timer.
Error logging capability: (0x01) Error logging supported.
General Purpose Logging supported.
Short self-test routine
recommended polling time: ( 2) minutes.
Extended self-test routine
recommended polling time: ( 401) minutes.
Conveyance self-test routine
recommended polling time: ( 5) minutes.
SCT capabilities: (0x7035) SCT Status supported.
SCT Feature Control supported.
SCT Data Table supported.

SMART Attributes Data Structure revision number: 16
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME FLAG VALUE WORST THRESH TYPE UPDATED WHEN_FAILED RAW_VALUE
1 Raw_Read_Error_Rate 0x002f 200 200 051 Pre-fail Always - 1695
3 Spin_Up_Time 0x0027 174 173 021 Pre-fail Always - 6300
4 Start_Stop_Count 0x0032 099 099 000 Old_age Always - 1088
5 Reallocated_Sector_Ct 0x0033 200 200 140 Pre-fail Always - 0
7 Seek_Error_Rate 0x002e 200 200 000 Old_age Always - 0
9 Power_On_Hours 0x0032 045 045 000 Old_age Always - 40564
10 Spin_Retry_Count 0x0032 100 100 000 Old_age Always - 0
11 Calibration_Retry_Count 0x0032 100 100 000 Old_age Always - 0
12 Power_Cycle_Count 0x0032 100 100 000 Old_age Always - 136
192 Power-Off_Retract_Count 0x0032 200 200 000 Old_age Always - 83
193 Load_Cycle_Count 0x0032 001 001 000 Old_age Always - 868676
194 Temperature_Celsius 0x0022 133 096 000 Old_age Always - 17
196 Reallocated_Event_Count 0x0032 200 200 000 Old_age Always - 0
197 Current_Pending_Sector 0x0032 200 200 000 Old_age Always - 0
198 Offline_Uncorrectable 0x0030 200 200 000 Old_age Offline - 0
199 UDMA_CRC_Error_Count 0x0032 200 200 000 Old_age Always - 0
200 Multi_Zone_Error_Rate 0x0008 200 200 000 Old_age Offline - 0

SMART Error Log Version: 1
ATA Error Count: 9 (device log contains only the most recent five errors)
CR = Command Register [HEX]
FR = Features Register [HEX]
SC = Sector Count Register [HEX]
SN = Sector Number Register [HEX]
CL = Cylinder Low Register [HEX]
CH = Cylinder High Register [HEX]
DH = Device/Head Register [HEX]
DC = Device Command Register [HEX]
ER = Error register [HEX]
ST = Status register [HEX]
Powered_Up_Time is measured from power on, and printed as
DDd+hh:mm:SS.sss where DD=days, hh=hours, mm=minutes,
SS=sec, and sss=millisec. It "wraps" after 49.710 days.

Error 9 occurred at disk power-on lifetime: 22848 hours (952 days + 0 hours)
When the command that caused the error occurred, the device was active or idle.

After command completion occurred, registers were:
ER ST SC SN CL CH DH
-- -- -- -- -- -- --
40 51 08 78 ed bc e0 Error: UNC 8 sectors at LBA = 0x00bced78 = 12381560

Commands leading to the command that caused the error were:
CR FR SC SN CL CH DH DC Powered_Up_Time Command/Feature_Name
-- -- -- -- -- -- -- -- ---------------- --------------------
c8 00 08 78 ed bc e0 08 4d+02:15:57.146 READ DMA
c8 00 08 70 ed bc e0 08 4d+02:15:57.139 READ DMA
c8 00 08 68 ed bc e0 08 4d+02:15:57.139 READ DMA
c8 00 08 60 ed bc e0 08 4d+02:15:57.139 READ DMA
ca 00 68 10 d4 28 e0 08 4d+02:15:57.124 WRITE DMA

Error 8 occurred at disk power-on lifetime: 22848 hours (952 days + 0 hours)
When the command that caused the error occurred, the device was active or idle.

After command completion occurred, registers were:
ER ST SC SN CL CH DH
-- -- -- -- -- -- --
40 51 08 a0 b9 bb e0 Error: UNC 8 sectors at LBA = 0x00bbb9a0 = 12302752

Commands leading to the command that caused the error were:
CR FR SC SN CL CH DH DC Powered_Up_Time Command/Feature_Name
-- -- -- -- -- -- -- -- ---------------- --------------------
c8 00 08 a0 b9 bb e0 08 4d+02:15:48.689 READ DMA
c8 00 08 98 b9 bb e0 08 4d+02:15:48.689 READ DMA
c8 00 08 90 b9 bb e0 08 4d+02:15:48.689 READ DMA
c8 00 08 88 b9 bb e0 08 4d+02:15:48.689 READ DMA
c8 00 08 80 b9 bb e0 08 4d+02:15:48.689 READ DMA

Error 7 occurred at disk power-on lifetime: 22848 hours (952 days + 0 hours)
When the command that caused the error occurred, the device was active or idle.

After command completion occurred, registers were:
ER ST SC SN CL CH DH
-- -- -- -- -- -- --
40 51 08 d0 ab bb e0 Error: UNC 8 sectors at LBA = 0x00bbabd0 = 12299216

Commands leading to the command that caused the error were:
CR FR SC SN CL CH DH DC Powered_Up_Time Command/Feature_Name
-- -- -- -- -- -- -- -- ---------------- --------------------
c8 00 08 d0 ab bb e0 08 4d+02:15:44.794 READ DMA
c8 00 80 60 ba bb e0 08 4d+02:15:44.794 READ DMA
c8 00 08 c8 ab bb e0 08 4d+02:15:44.794 READ DMA
c8 00 08 c0 ab bb e0 08 4d+02:15:44.794 READ DMA
c8 00 08 b8 ab bb e0 08 4d+02:15:44.794 READ DMA

Error 6 occurred at disk power-on lifetime: 22848 hours (952 days + 0 hours)
When the command that caused the error occurred, the device was active or idle.

After command completion occurred, registers were:
ER ST SC SN CL CH DH
-- -- -- -- -- -- --
40 51 80 98 b9 bb e0 Error: UNC 128 sectors at LBA = 0x00bbb998 = 12302744

Commands leading to the command that caused the error were:
CR FR SC SN CL CH DH DC Powered_Up_Time Command/Feature_Name
-- -- -- -- -- -- -- -- ---------------- --------------------
c8 00 80 60 b9 bb e0 08 4d+02:15:41.004 READ DMA
c8 00 08 60 aa bb e0 08 4d+02:15:40.995 READ DMA
ca 00 08 e0 ab 90 e0 08 4d+02:15:40.991 WRITE DMA
c8 00 08 58 aa bb e0 08 4d+02:15:40.990 READ DMA
c8 00 08 50 aa bb e0 08 4d+02:15:40.990 READ DMA

Error 5 occurred at disk power-on lifetime: 22848 hours (952 days + 0 hours)
When the command that caused the error occurred, the device was active or idle.

After command completion occurred, registers were:
ER ST SC SN CL CH DH
-- -- -- -- -- -- --
40 51 08 58 aa bb e0 Error: UNC 8 sectors at LBA = 0x00bbaa58 = 12298840

Commands leading to the command that caused the error were:
CR FR SC SN CL CH DH DC Powered_Up_Time Command/Feature_Name
-- -- -- -- -- -- -- -- ---------------- --------------------
c8 00 08 58 aa bb e0 08 4d+02:15:37.583 READ DMA
c8 00 08 50 aa bb e0 08 4d+02:15:37.583 READ DMA
c8 00 08 48 aa bb e0 08 4d+02:15:37.583 READ DMA
c8 00 08 40 aa bb e0 08 4d+02:15:37.583 READ DMA
c8 00 08 38 aa bb e0 08 4d+02:15:37.583 READ DMA

SMART Self-test log structure revision number 1
Num Test_Description Status Remaining LifeTime(hours) LBA_of_first_error
# 1 Extended offline Aborted by host 10% 22889 -
# 2 Short offline Completed without error 00% 22874 -

SMART Selective self-test log data structure revision number 1
SPAN MIN_LBA MAX_LBA CURRENT_TEST_STATUS
1 0 0 Not_testing
2 0 0 Not_testing
3 0 0 Not_testing
4 0 0 Not_testing
5 0 0 Not_testing
