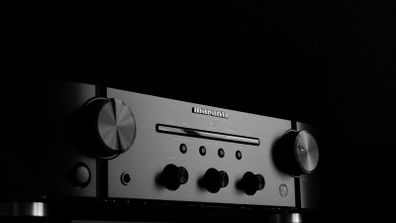

Marantz PM5005 stereo integrated amplifier with Phono stage pristine condition boxed with Remote

The Marantz PM5005 is a 2-channel integrated stereo amplifier engineered for pure, analog audio performance. It delivers 40 watts per channel into 8 ohms or 55 watts per channel into 4 ohms. It stands out in its price tier by introducing a current feedback architecture, a technology normally restricted to higher-end, premium models to achieve high-speed, precise signal processing. [1, 2, 3]

Core Technical Specifications

According to the Marantz PM5005 product manual, the amplifier features the following performance metrics:

Power Output: 40 W + 40 W (8 Ω), 55 W + 55 W (4 Ω)

Total Harmonic Distortion (THD): 0.01%

Frequency Response: 10 Hz – 50 kHz

Damping Factor: 100

Signal-to-Noise Ratio: 103 dB (Line level), 83 dB (MM Phono) [1, 2, 3]

Key Features & Design

All-Analog Architecture: Built without integrated digital-to-analog converters (DAC) or streaming features to maximize component quality for 2-channel playback. [1, 2, 3, 4, 5]

Phono MM Equaliser: Includes a dedicated moving magnet phono pre-amplifier stage to plug turntables directly into the system. [1, 2]

Source Direct Mode: Bypasses tone, balance, and loudness circuits to clear up the signal path for the purest listening experience. [1, 2]

A/B Speaker Terminals: Features two sets of transparent screw-type binding posts to run two separate speaker pairs or a bi-wired configuration. [1, 2]

Chassis Construction: Protected by a rigid metal chassis and a brushed metal front panel to eliminate vibrations. [1, 2, 3, 4]

Product Considerations

Sound Signature: Reviewers on YouTube characterize the PM5005 as having a distinct, warm, and forward tone with punchy mid-range performance, making it highly engaging
