Description

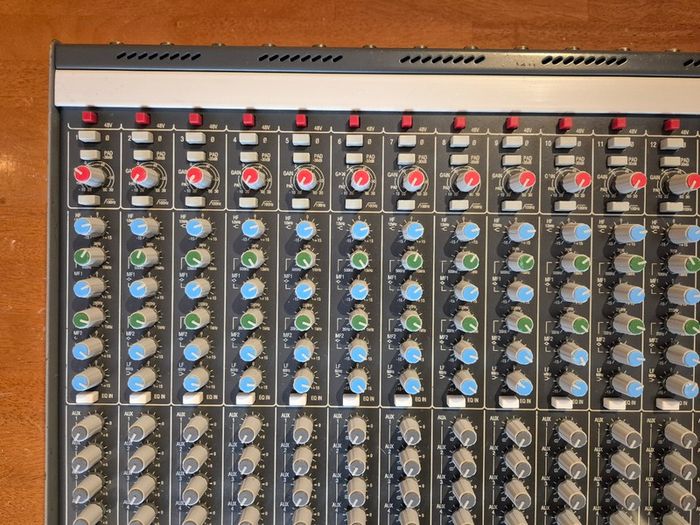

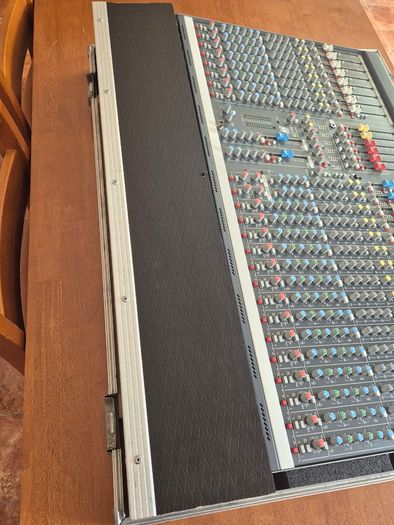

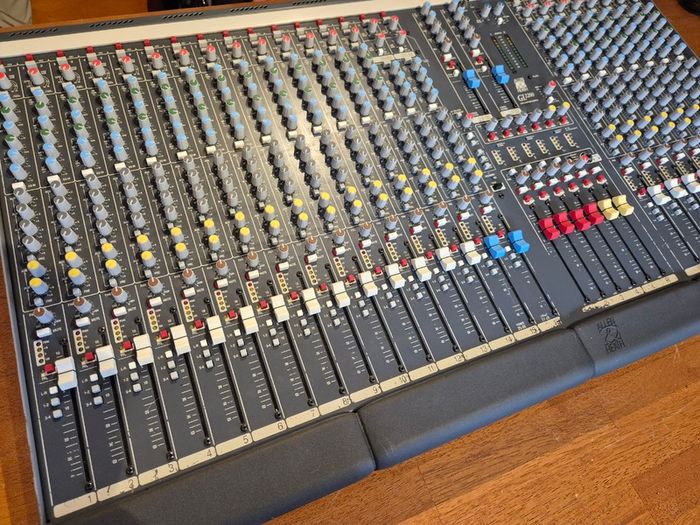

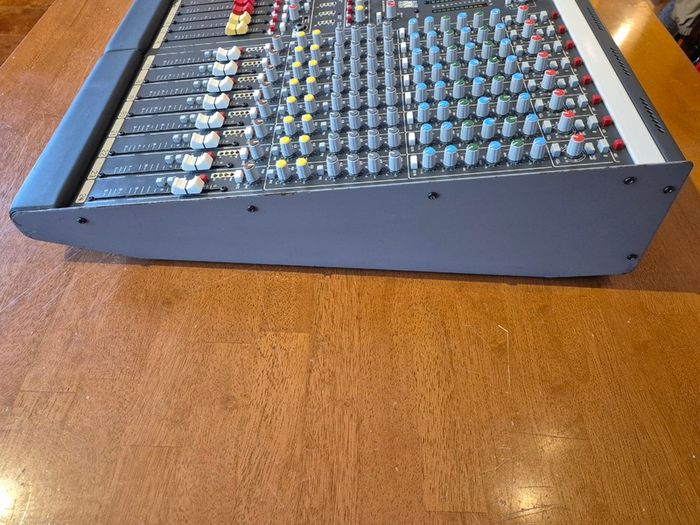

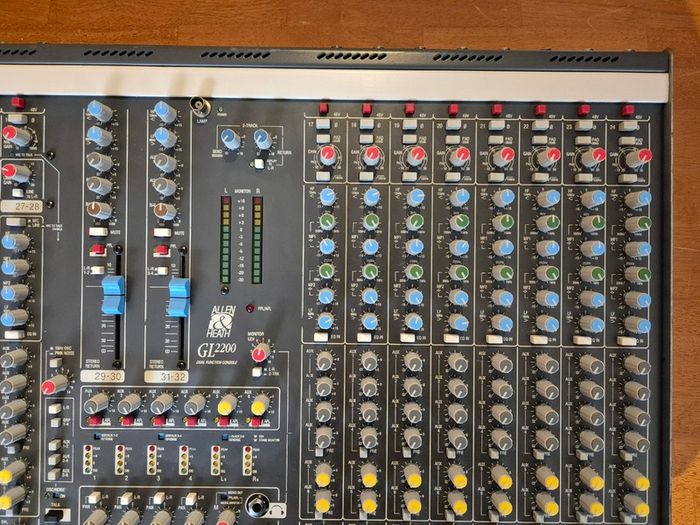

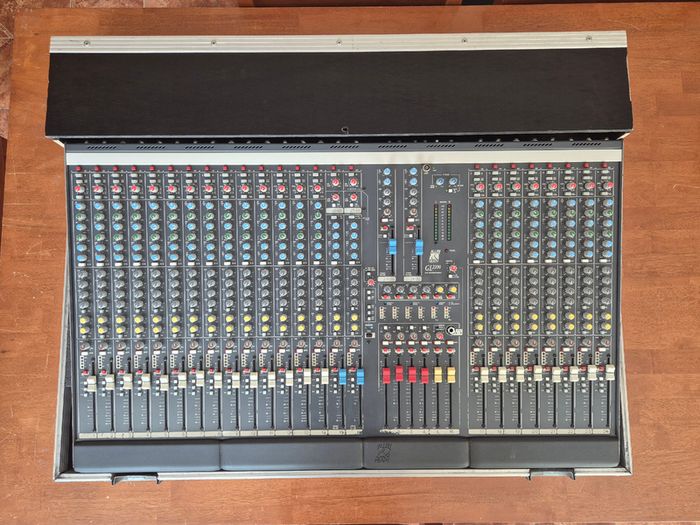

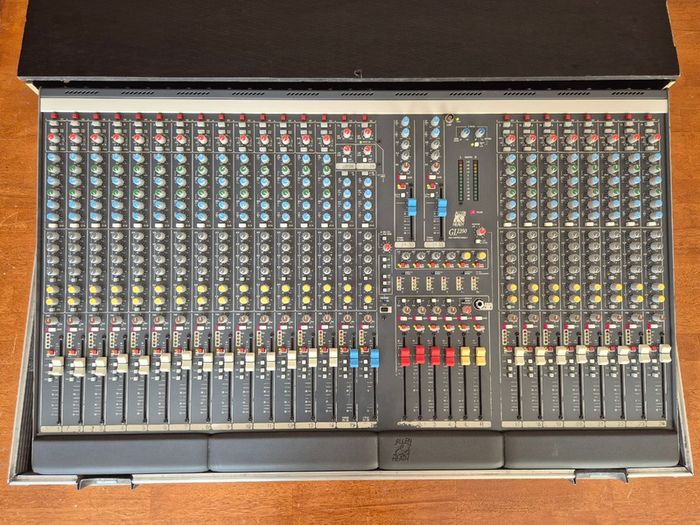

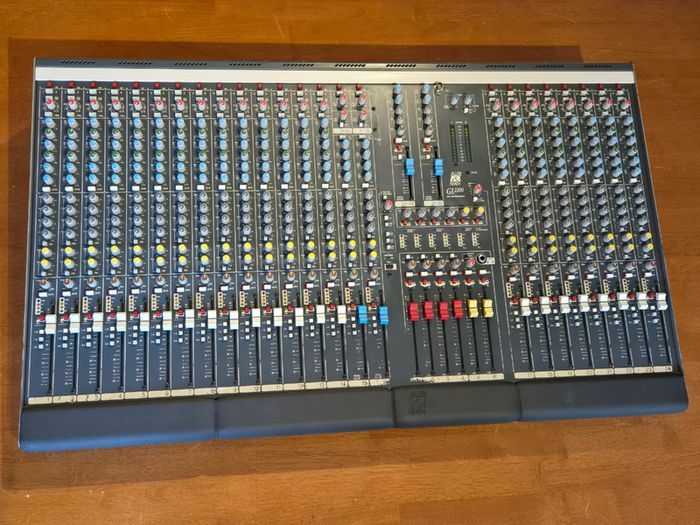

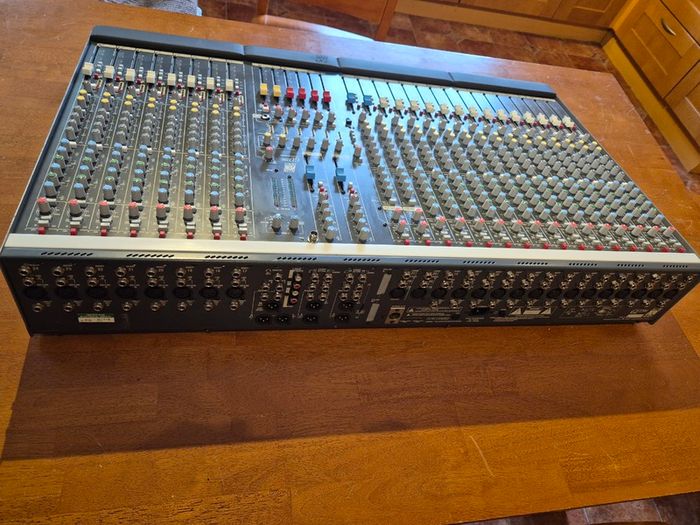

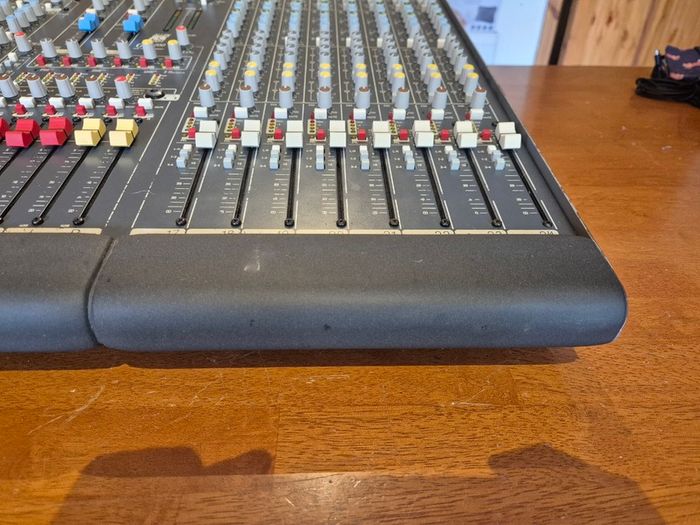

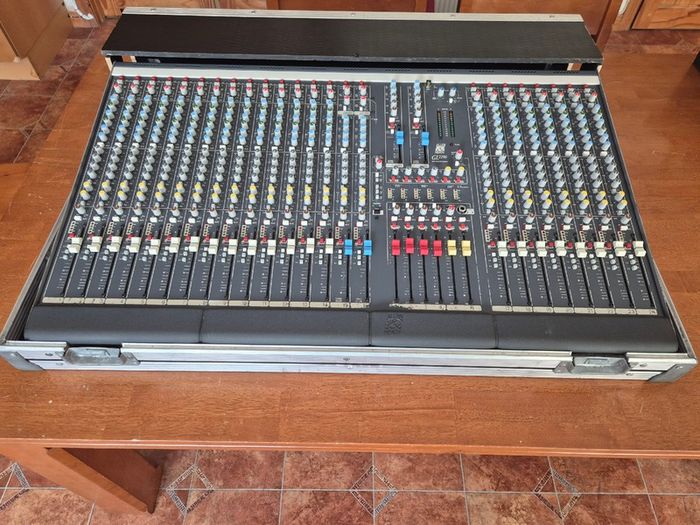

Allen & Heath GL2200 24-Channel Dual Function Audio Mixing Console

Collection from Manorhamilton in Leitrim
(or could possibly be dropped off relatively locally)

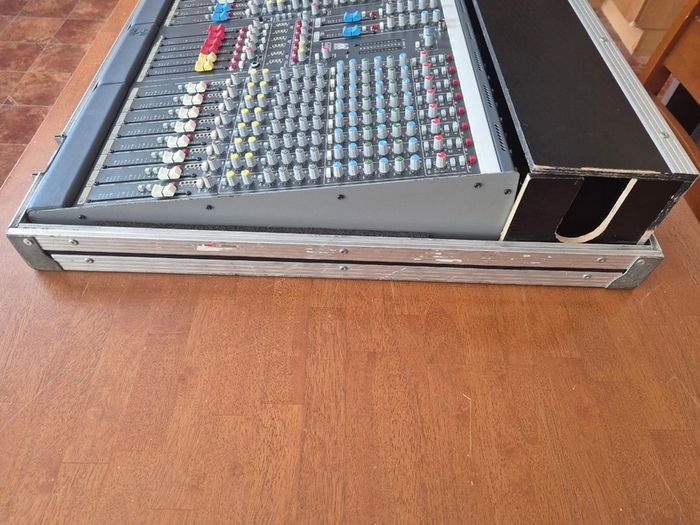

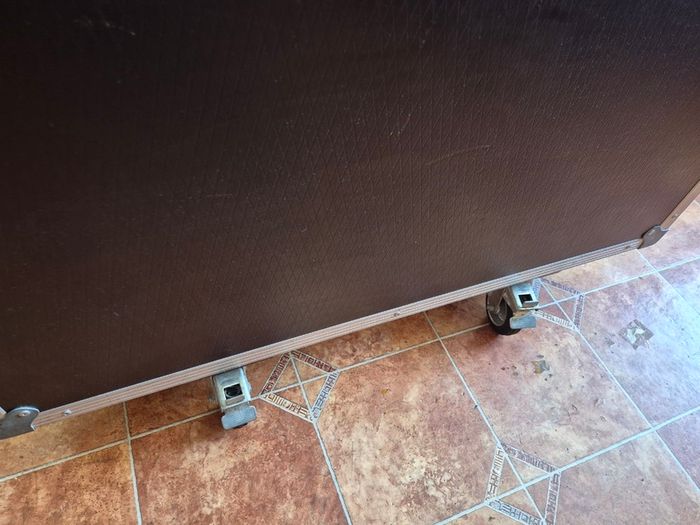

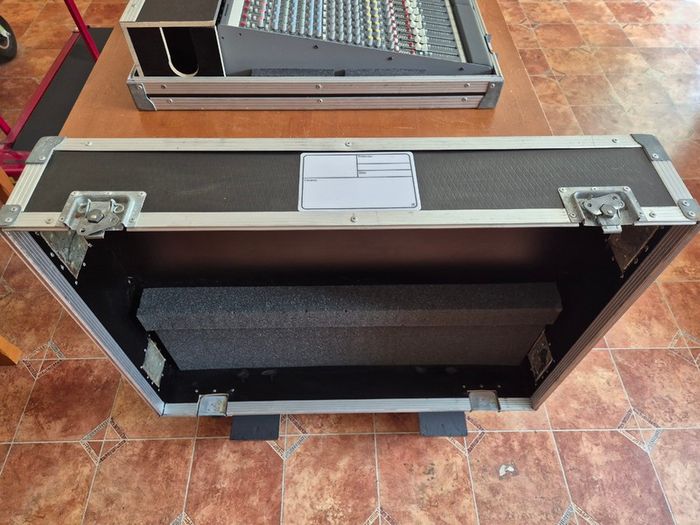

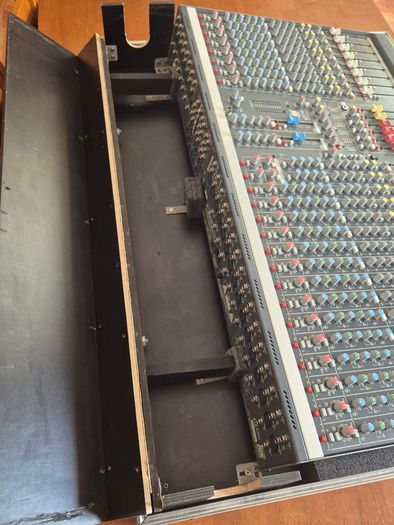

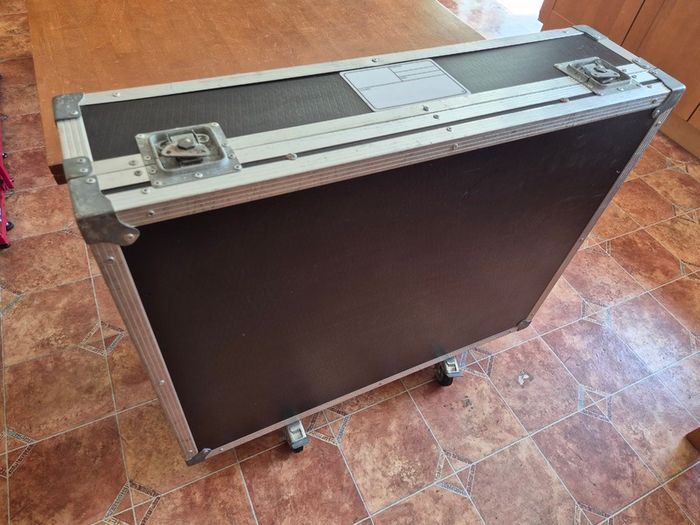

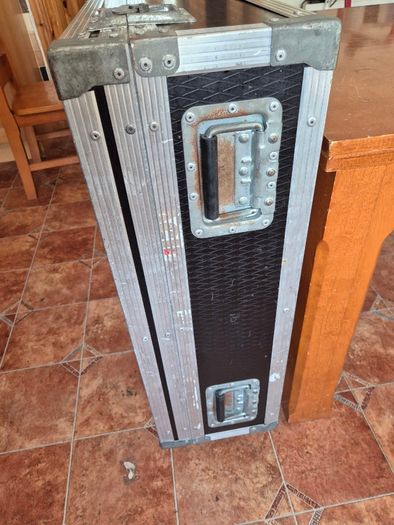

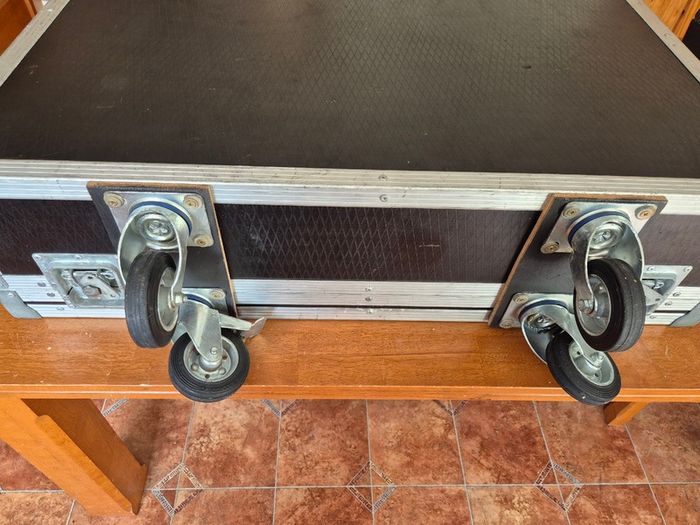

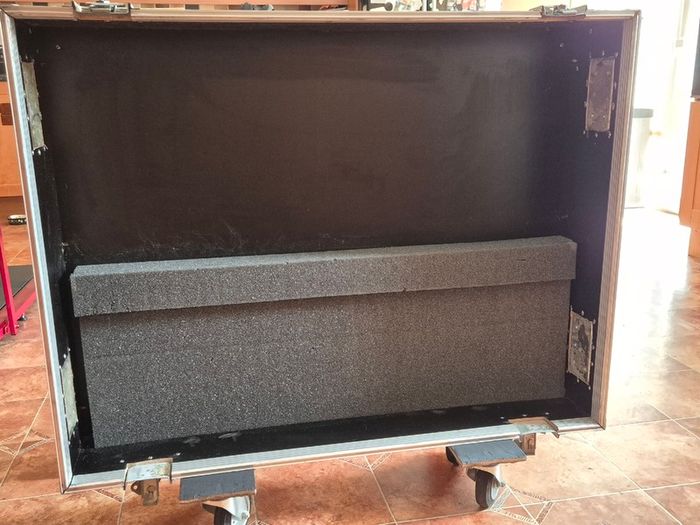

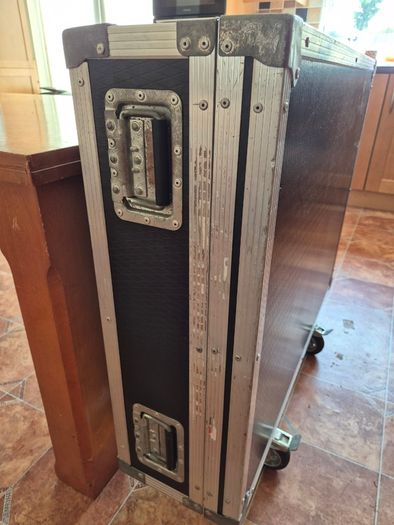

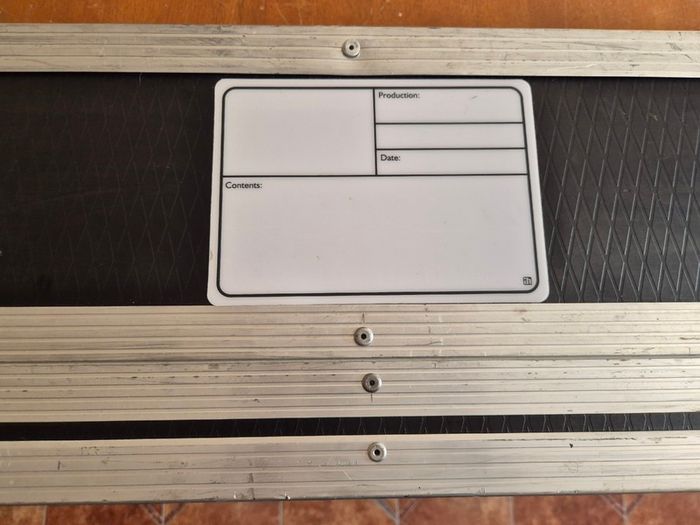

Flight Case Dimensions:
1000 x 900 x 255 mm (including wheels)

Tested and fully working except for PFL on Channel 3. Should be an easy fix for someone handy with mixers/electronics.

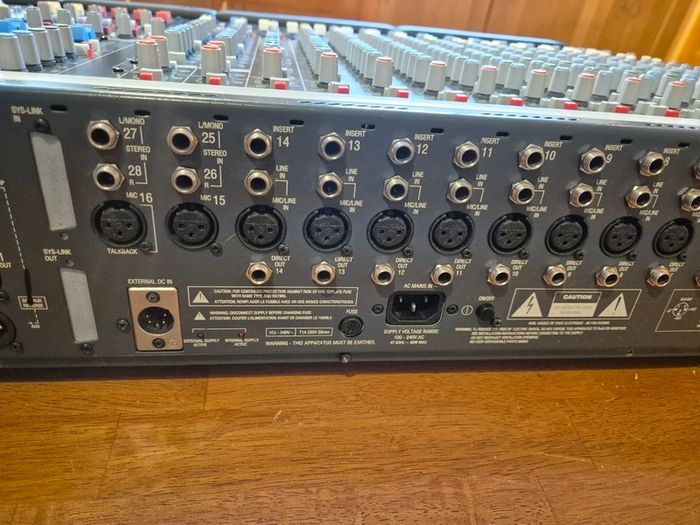

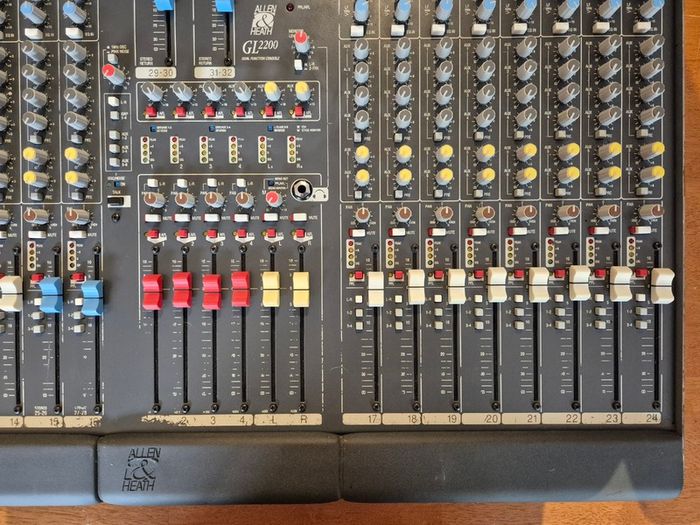

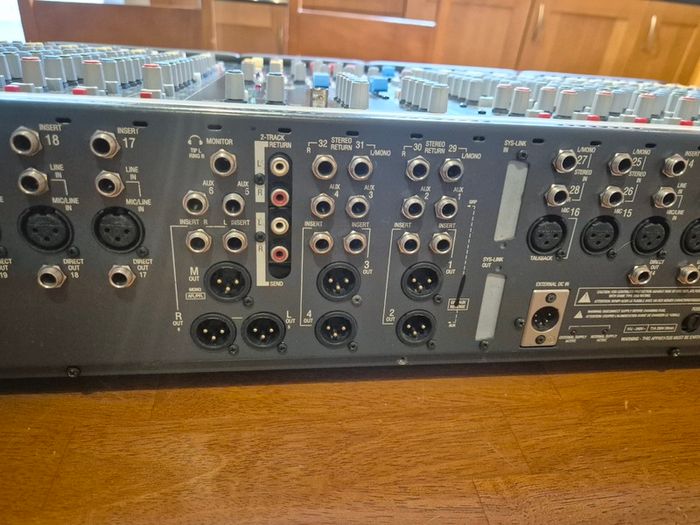

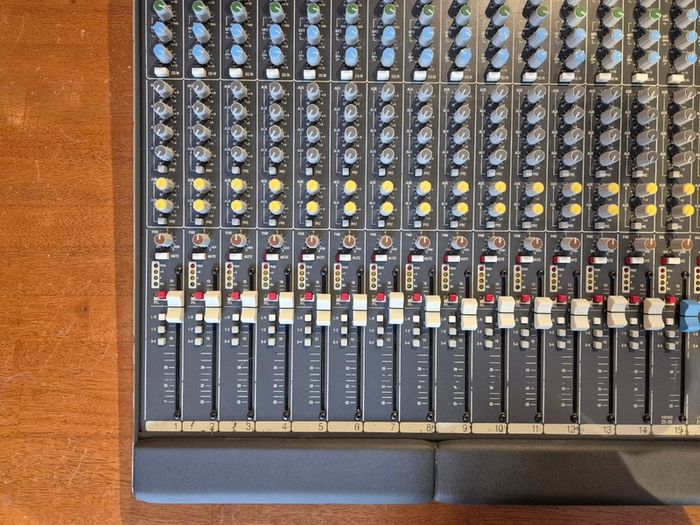

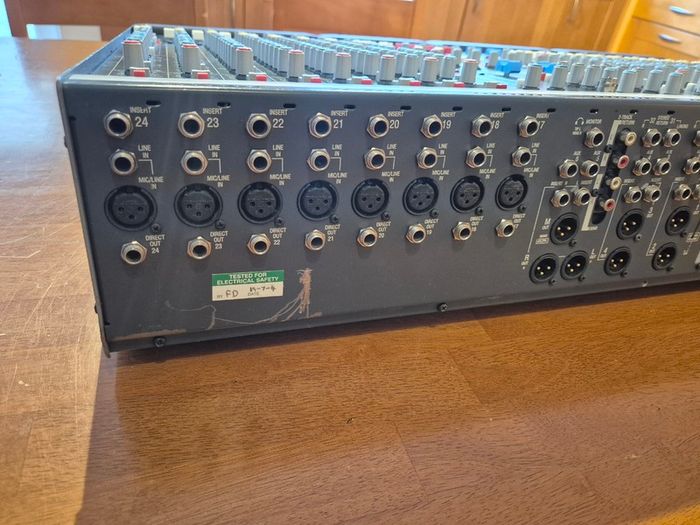

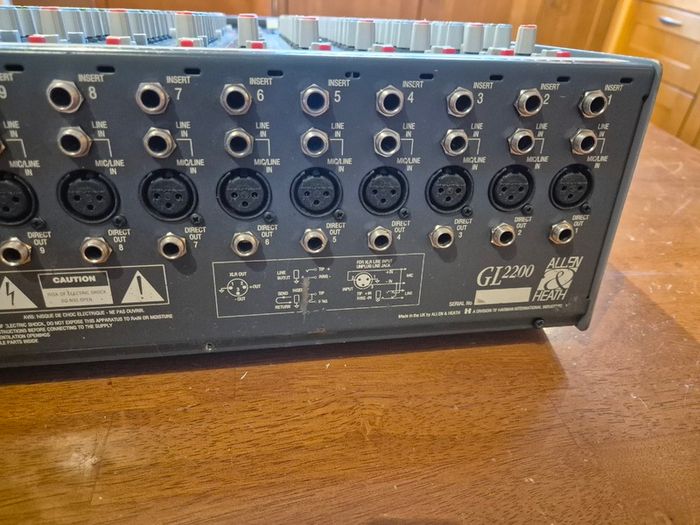

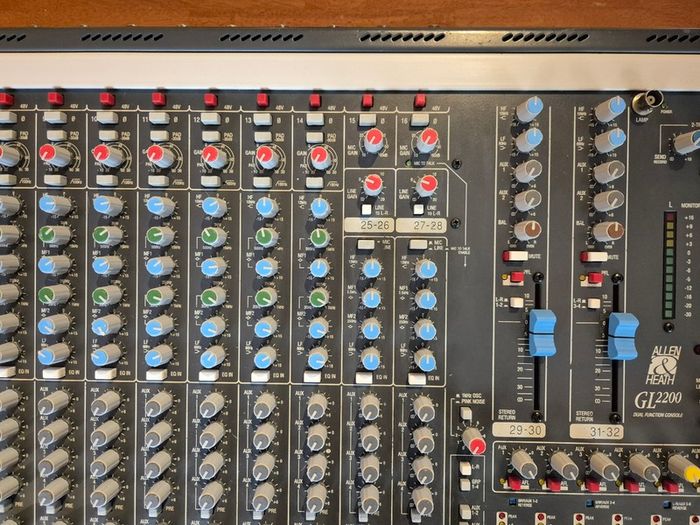

Dropbox link with photos of top panel and rear so you can zoom in and properly see the layout and jacks etc:

https://www.dropbox.com/scl/fo/ydrb453v0zh9hfva9bqnw/AP6MLFHsXn41fbm-LWrTeRU?rlkey=96g5ixi1v7u6eigfd592rgllq&st=7jhl295b&dl=0

FROM THE USER GUIDE:

The ALLEN & HEATH GL2200 offers the user the versatility to quickly adapt to the exacting demands of live sound engineering today. The GL2200 is developed from the very successful GL2000 console, which included mode switching to quickly convert the console from Front-of-House to On-stage Monitor operation.

In addition, the GL2200 includes 4 subgroups, 6 independent aux sends, stereo mic/line channels, pink noise generator, 1kHz oscillator and lots more. It is built on the established
tradition of innovative British design and manufacture. The GL2200 is equally suited to home and studio recording.

Features include:

• FOH/stage-monitor dual functionality
• 4 groups, 6 auxes
• Groups, L, R and Mono outputs on balanced XLR
• 2 stereo line channels with mic capability
• 2 stereo returns with mutes, faders, EQ and Aux sends
• Mutes on Groups and L-R
• Channel direct outs
• 2-track send and return
• 4-band EQ with swept mids and in/out switch
• Input metering on each channel
• Phantom Power 48V, switchable on each channel
• Inserts on all mono inputs
• Inserts on Groups (auxes) and L-R outs
• Comprehensive AFL/PFL monitoring
• Pink noise generator for speaker setup
• Oscillator for equipment line up
• Talkback facility
• High-performance internal power supply with universal mains input voltage
• Built-in combiner to add (optional) external backup power supply
• Console lamp connector
• Sys-linkTM expandability
• Rugged build quality

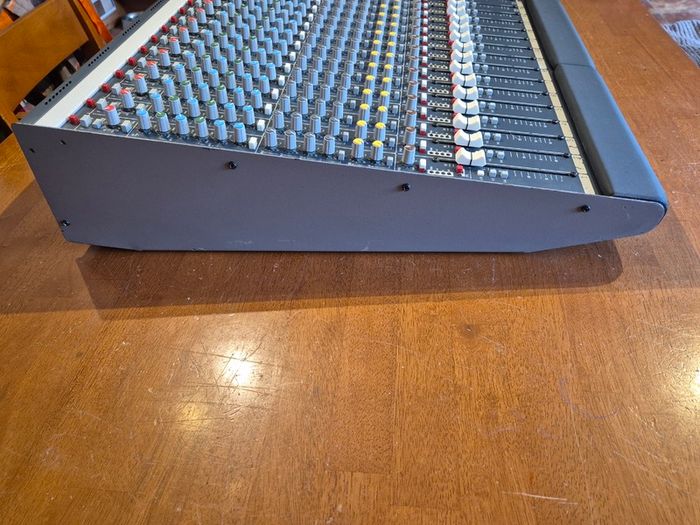

The console is constructed using zinc plated steel panels and 1.6mm thick metal side plates.
Individual circuit board assemblies are accessible by removal of the steel base.

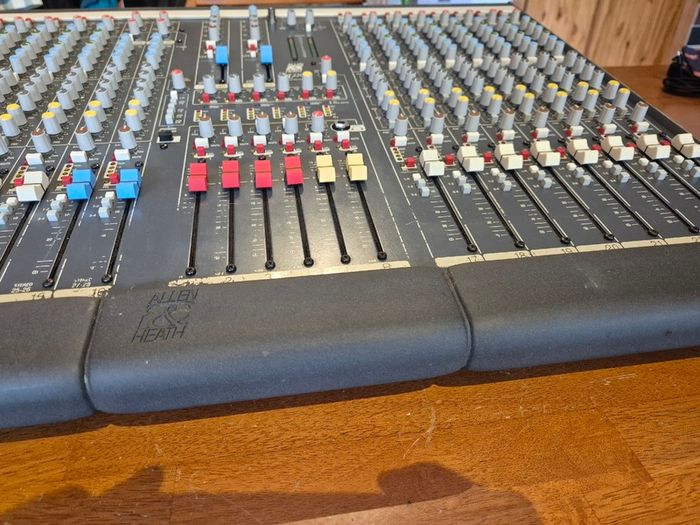

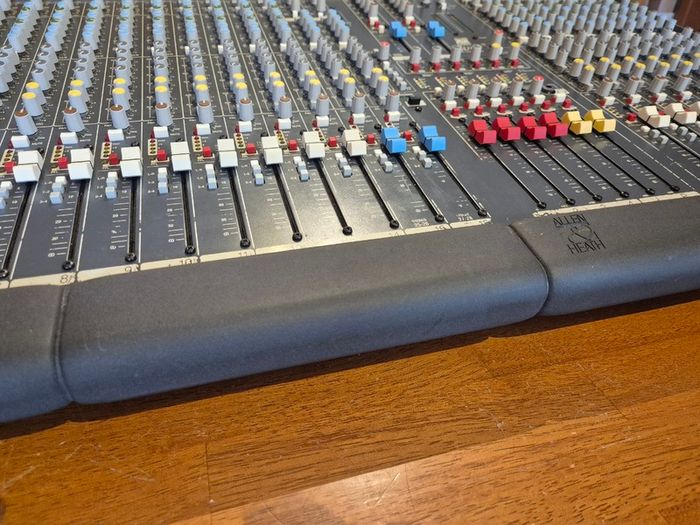

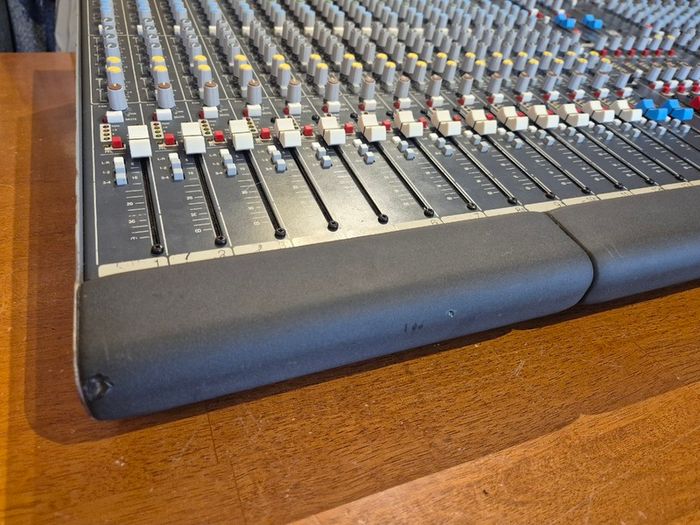

A durable soft front armrest is provided for comfort. A channel top write-on strip is provided for channel marking.
High quality reliable parts are used throughout.
High performance op-amp and discrete circuits are used to ensure low noise and sonic purity.
The internal power supply is a low noise switch mode unit that can be linked with an external DC power supply.
