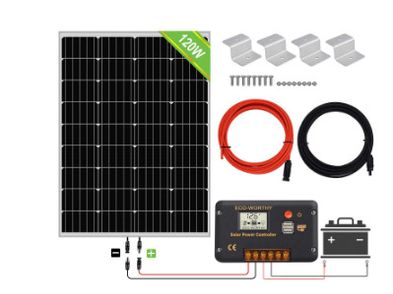

Solar Panel Kit 120W 12V with 20A Controller

Condition: New

Shipping Nationwide 1 to 2 working days
Collection to be arranged
Cash on Delivery COD (Pay on Delivery )

Condition: 100% New in Box

Item:B249


Description:

1 pair of 5 m solar cables
Solar cable with MC4 connector, 5 m red cable and 5 m black cable for connection to the solar panel.
1 set of solar panel brackets
There are four to a set, Z style
These brackets are perfect for most framed solar panels and can be attached to the back of most framed panels
Multipurpose
Ideal for caravans, house roofs, boats, motorcycles, cars, snowmobiles, tractors, outdoors, camping, etc.

controller
frame
For movable, hanging or fixed installation in photovoltaic systems at temperatures
So that the solar module can easily be attached to a flat surface.
20A solar charge controller
Nominal charging current: 20A
Rated discharge current: 20A
USB output voltage: 5V
Total USB output current: 3A
DC output voltage: 12V
Total DC output current: 2A
Short circuit recovery time: 10S
Open circuit voltage of the solar panel: 40V
No load loss: 0.05W

120W mono solar panel
Rated power: 120W
Open circuit voltage (Voc): 21.6V
Maximum / Peak Voltage (Vmp): 18V
Short Circuit Current (Isc): 7.72A
Maximum / peak current (Imp): 6.67A
Output tolerance: ± 3%
Moderate coefficient of Isc: (010 +/- 0.01)% / l
Moderate coefficient of Voc: - (0.38 +/- 0.01)% / l
Moderate coefficient of performance Voc: -0.47% / ℃
Temperature range: -40 ℃ to + 80 ℃
