Description

https://www.telcoantennas.com.au/telco-antennas-telco-xpol-mimo-17dbi-4g-solid-dish

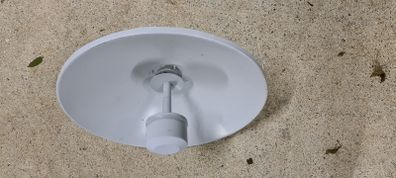

Telco XPOL MIMO Industrial Class Solid Dish 4G Antenna

Key Features

Dual-polarised antenna feed with high isolation

Industrial grade high precision 0.6 m dish

Ultra high F/B ratio

Two low PIM N Female connectors

17.5 to 19.0 dBi gain across 1800 and 2100 MHz bands.

Usage

We specifically designed this heavy duty solid dish antenna for operation on 4G LTE MIMO networks

This antenna has an incredibly low VSWR and <-130 dBc PIM, making it the ideal antenna for commercial and industrial 4G applications, as well as suitable for broadcast and carrier applications

With a heavy duty design, the key to this antennas unmatched performance on 4G networks is the solid dish and microwave-class feedhorn element

The finely machined 0.6 m parabolic reflector provides a dead stable main lobe, with sidelobe interference being effectively eliminated with its -32 dB typical F/B ratio - this is extremely important as a cleaner signal will allow the modem to negotiate a more complex (and faster) method of modulation

The 17 dBi gain was chosen to maintain a beamwidth above 15 degrees to permit operation in non line of sight applications

While designed for commercial and industrial applications, this antenna suits a wide variety of 4G applications from high speed broadband in city areas, remote and rural farming properties, to linking island communities back to mainland

As with any high gain antenna, this product is designed for operation where the antenna beam is clear from obstructions for the first 50-100m of the link
