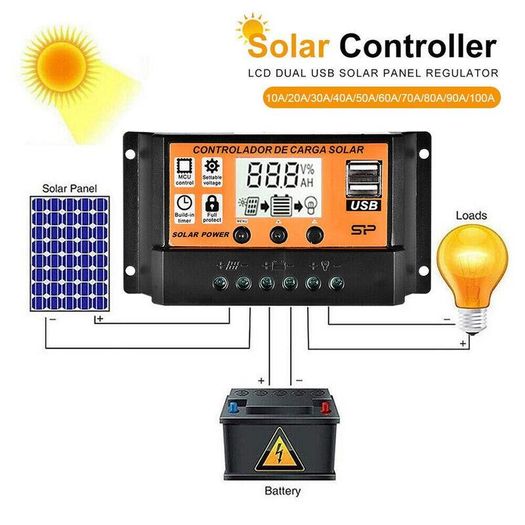

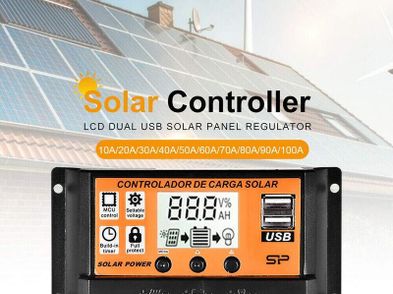

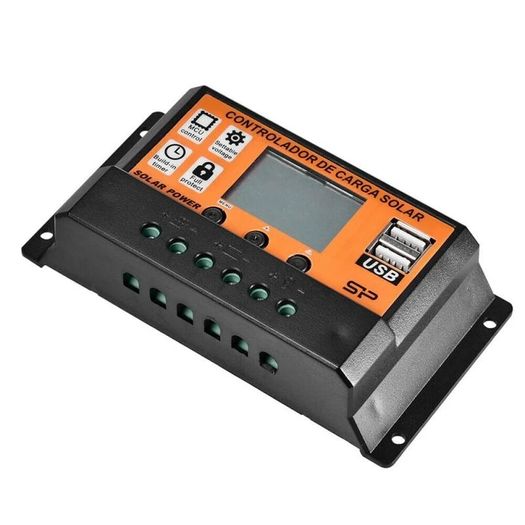

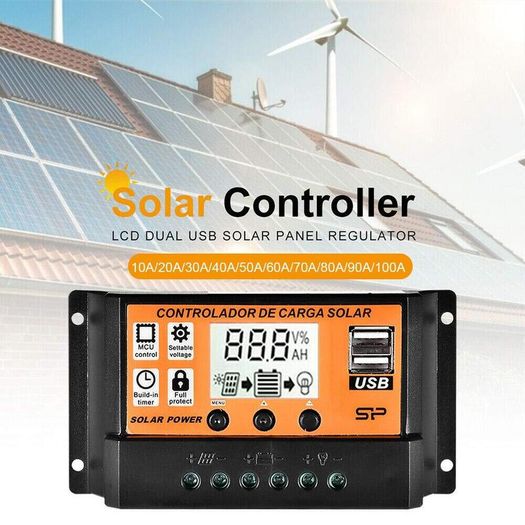

Auto Parameter Adjustable Solar Charge Controller

Advanced maximum power point tracking technology (MPPT/PWM), the efficiency is not less than 99.5%. The system performs better because to high-quality components, and the conversion efficiency is 98% at its highest. extremely quick tracking speed and assurance of tracking effectiveness.
- Large-screen LCD display; customizable charging and discharging parameters; shutdown memory; charge and discharge current display; cumulative power generation and discharge power query; temperature display; light control delay control; and other functions.
- Dual USB output with a 2.5A maximum current. The system control parameters are changeable, simple to establish, and operate. They are equipped with all necessary components. built-in fault clearing, automatic recovery controller, overheating, overcurrent, short circuit, and open circuit protection. High power charging mode, two-way MOS tube anti-flow circuit, and extreme heat.
-Short circuit, open circuit, reverse connection, and overload protection built in. Reverse current with a low calorific value and a self-recovery feature won't harm the controller.
-Temperature, charging current, and discharging current are all displayed in real-time. Modern MPPT autofocus charging tracking features two-way focus tracking, high charging efficiency, and no stop detection




Specifications:
Name: LCD screen solar controller
Voltage: DC 12V / 24V
Display: LCD screen
Self-consumption: <10MA
Overcharge protection: 14.4V / 28.8V
Overcharge Float charge: 13.7V / 27.4V
Charge recovery voltage: 12.6V / 25.2V
Over discharge protection: 10.7V / 21.4V
Over discharge recovery: 12.6V / 25.2V
Dual USB output: 5V / 2A (charge mobile phone, iPad, etc.)
Working temperature: -35 ℃ -60 ℃
12V fits 18V solar panel, 24V fits 36V solar panel
12.0 volt lead acid battery corresponding
The float voltage is set to: 13.6
The recovery discharge voltage is set to: 12.6
The discharge cut-off voltage is set to: 10.7
12.8 volt lithium iron phosphate battery corresponding
The float voltage is set to: 14.6
The recovery discharge voltage is set to: 13.6
The discharge cut-off voltage is set to: 11.0
11.1 volt lithium battery corresponding
The float voltage is set to: 12.6
The recovery discharge voltage is set to: 11.6
The discharge cut-off voltage is set to: 9.6
The minute is adjustable when the output is turned off, which is more
convenient (there is no adjustment when the market is only available).
Package Included:
1X Solar Panels Battery Charge Controller

1X User Manual
