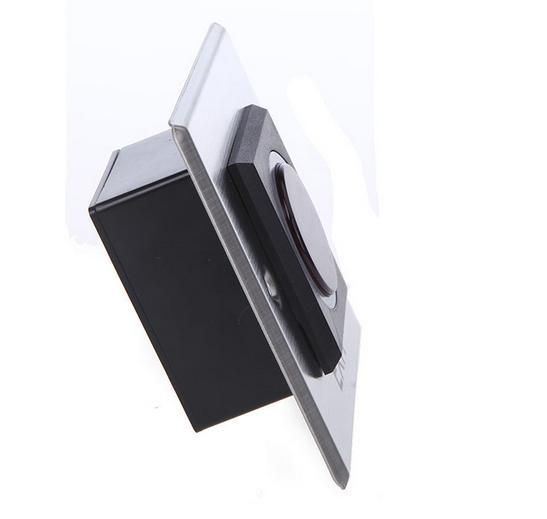

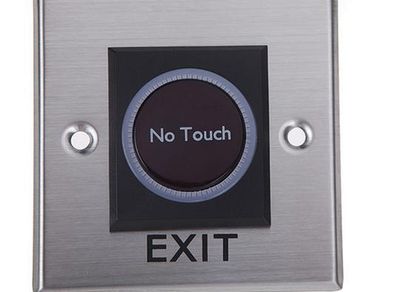

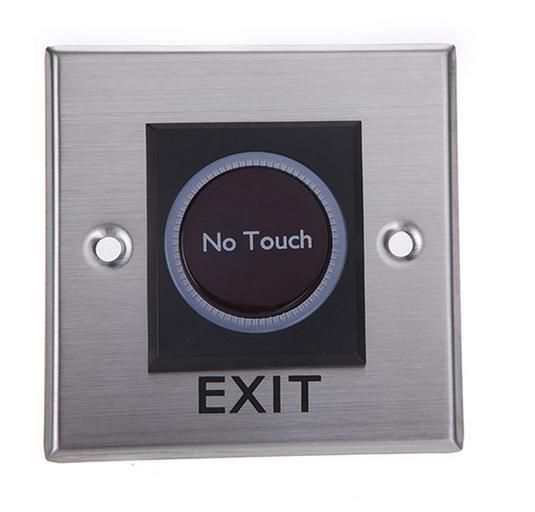

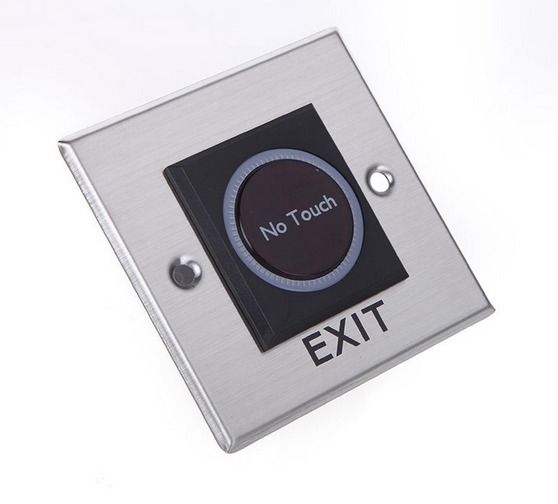

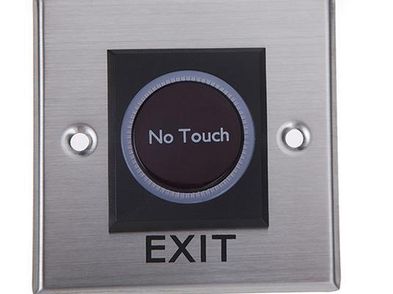

No Touch Infrared Door Exit Switch

Condition: New

No touch infrared door exit Switch uses infrared technology to open a door or activate a device with the simple wave of a hand. The trigger distance is up to 10CM. Since it is no touch, this sensor is ideal for use in hospitals, clinics, labs, cleanrooms (to reduce the risk of contamination) or for use in schools, factories, or offices (anywhere an easy way to exit is required).

No Touch – just wave a hand in front of sensor.
Sensing range up to 4" (10cm).
Attractive "ring" illuminator turns from blue to red when the sensor is activated.
Reduce the risk of cross contamination.
Easy and clean operation.
Reliable IR technology senses motion.
Durable stainless-steel plate.

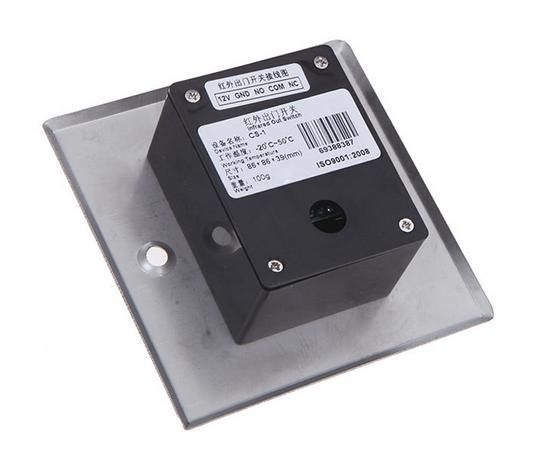

Quick-connect screwless terminal block.
3A 250V relay output.

Technical Details

Power: 40mA at 12VDC
Relay: 3A 250V
Response Time: 10mS
Output Time: 0.5 seconds or as long as unit is triggered
Range: Up to 4 inches (10cm)
Temperature Range: -4 to 131° F (-20 to 50° C)
Dimensions: 86mm x 86mm x 39mm)
